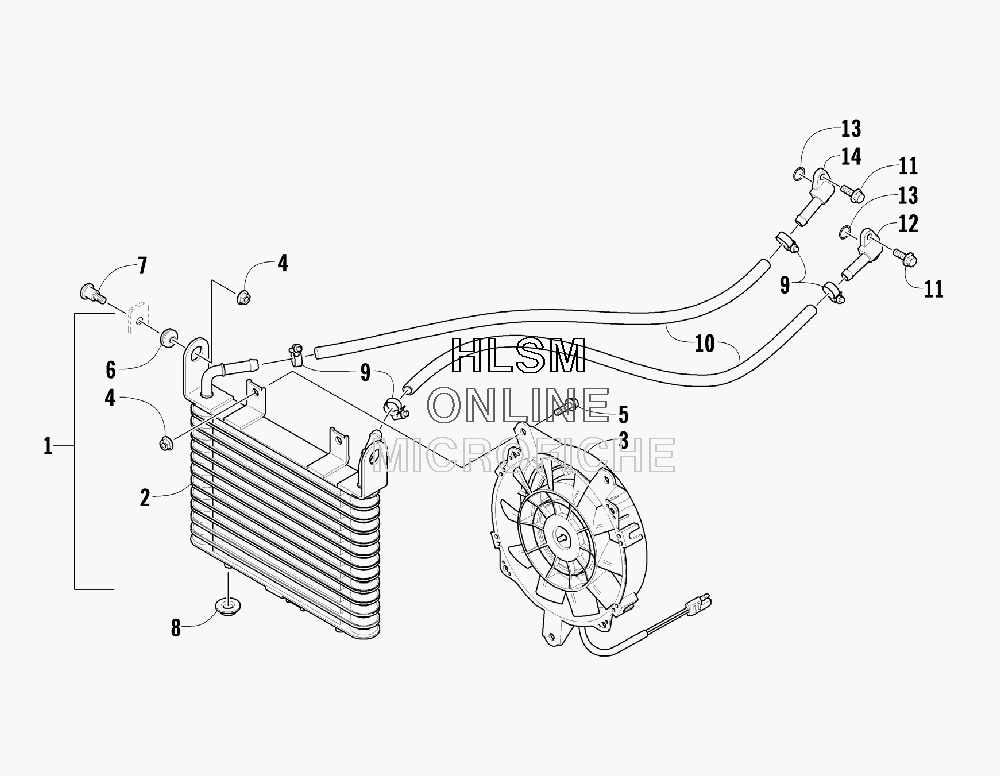

OIL COOLER ASSEMBLY для Arctic Cat 366 (CAT GREEN) [A2008IDG4BUSZ] - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    3323-202 COOLER, OIL - ASSEMBLY (INC. 2-3, THREE NO. 4, AND 5-6)
    COOLER, OIL - ASSEMBLY (INC. 2-3, THREE NO. 4, AND 5-6)
  • 2
    3323-203 ...COOLER, OIL
    ...COOLER, OIL
  • 3
    3323-204 ...FAN, COOLING
    ...FAN, COOLING
  • 4
    3304-654 ...NUT, FLANGE
    ...NUT, FLANGE
  • 5
    3304-173 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 6
    3323-201 ...GROMMET
    ...GROMMET
  • 7
    3313-166 SCREW, SHOULDER
    SCREW, SHOULDER
  • 8
    3323-194 BUSHING, STEM
    BUSHING, STEM
  • 9
    0423-098 CLAMP, HOSE
    CLAMP, HOSE
  • 10
    0410-044 HOSE, OIL
    HOSE, OIL
  • 11
    3303-382 BOLT, FLANGE
    BOLT, FLANGE
  • 12
    0812-059 FITTING, OIL
    FITTING, OIL
  • 13
    0830-172 O-RING, OIL FITTING
    O-RING, OIL FITTING
  • 14
    0812-060 FITTING, OIL
    FITTING, OIL
