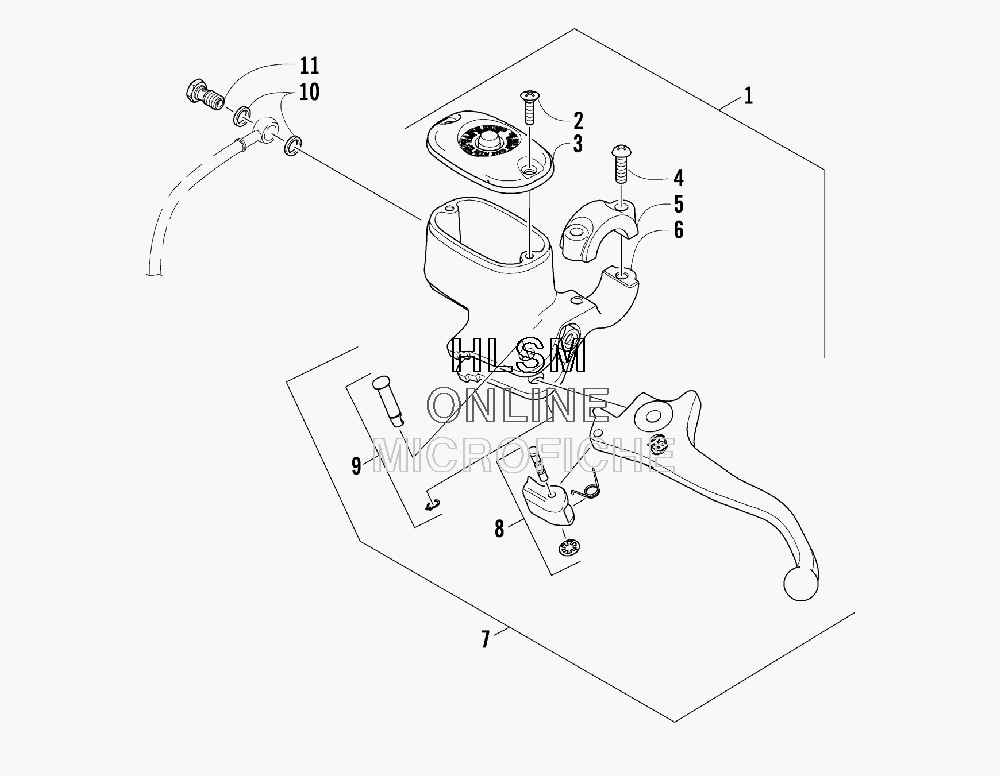

HYDRAULIC HAND BRAKE ASSEMBLY для Arctic Cat 366 (CAT GREEN) [A2008IDG4BUSZ] - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    3313-316 BRAKE ASSEMBLY (INC. 2-9)
    BRAKE ASSEMBLY (INC. 2-9)
  • 2
    0502-566 ...SCREW, RESERVOIR COVER
    ...SCREW, RESERVOIR COVER
  • 3
    0502-868 ...COVER, RESERVOIR
    ...COVER, RESERVOIR
  • 4
    0502-568 ...SCREW, MASTER CYLINDER CLAMP
    ...SCREW, MASTER CYLINDER CLAMP
  • 5
    0502-869 ...CLAMP, MASTER CYLINDER
    ...CLAMP, MASTER CYLINDER
  • 6
    0502-704 ...MASTER CYLINDER ASSEMBLY
    ...MASTER CYLINDER ASSEMBLY
  • 7
    0502-866 ...LEVER ASSEMBLY - KIT (INC. 8-9)
    ...LEVER ASSEMBLY - KIT (INC. 8-9)
  • 8
    0502-867 ......LOCK, BRAKE LEVER - KIT
    ......LOCK, BRAKE LEVER - KIT
  • 9
    0502-580 ......LEVER PIN - KIT
    ......LEVER PIN - KIT
  • 10
    3323-155 WASHER, CRUSH
    WASHER, CRUSH
  • 11
    3303-257 BOLT, BANJO-FITTING
    BOLT, BANJO-FITTING
