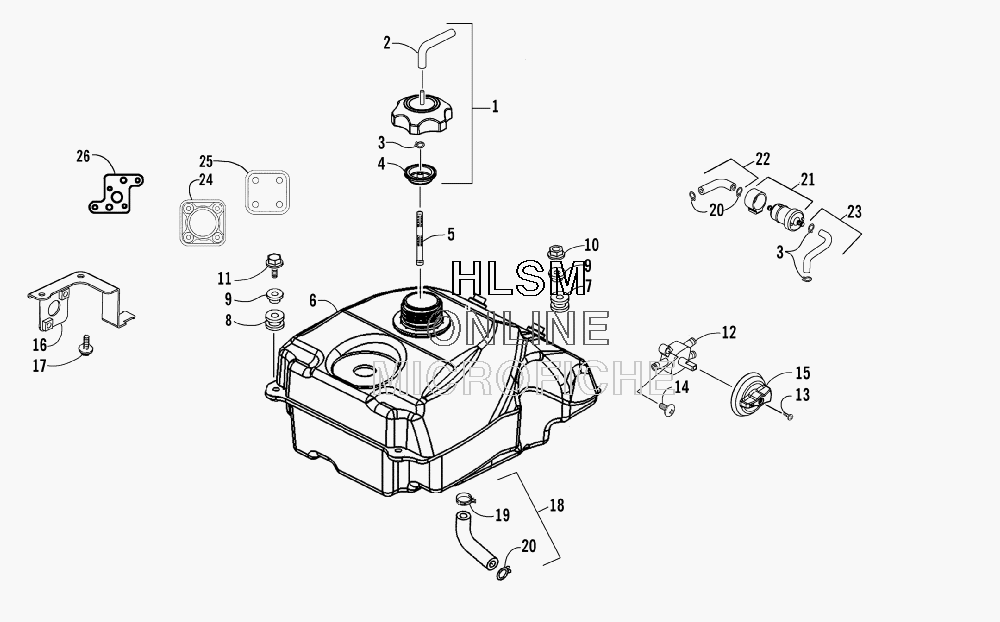

GAS TANK ASSEMBLY для Arctic Cat 250 DVX (BLACK - CAT GREEN) [A2008KSE2BUSE] - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    3304-246 CAP, GAS TANK - ASSEMBLY (INC. 2, ONE NO. 3, AND 4)
    CAP, GAS TANK - ASSEMBLY (INC. 2, ONE NO. 3, AND 4)
  • 2
    3304-169 ...HOSE, VENT
    ...HOSE, VENT
  • 3
    3303-348 ...CLIP, TUBE
    ...CLIP, TUBE
  • 5
    3303-058 SCREEN, FUEL STRAINER
    SCREEN, FUEL STRAINER
  • 6
    3305-415 TANK, GAS - ASSEMBLY (INC. 7-8)
    TANK, GAS - ASSEMBLY (INC. 7-8)
  • 7
    3304-647 ...GROMMET, RUBBER
    ...GROMMET, RUBBER
  • 8
    3303-406 ...GROMMET, RUBBER
    ...GROMMET, RUBBER
  • 9
    3303-226 COLLAR, FRONT FENDER
    COLLAR, FRONT FENDER
  • 10
    3303-331 NUT
    NUT
  • 11
    3304-551 SCREW, CAP
    SCREW, CAP
  • 12
    3303-700 VALVE, GAS TANK (INC. 13)
    VALVE, GAS TANK (INC. 13)
  • 13
    3301-828 ...SCREW
    ...SCREW
  • 14
    3303-316 SCREW, PAN-HEAD
    SCREW, PAN-HEAD
  • 15
    3303-701 COVER, GAS TANK VALVE
    COVER, GAS TANK VALVE
  • 16
    3305-419 BRACKET, MOUNTING - GAS TANK VALVE
    BRACKET, MOUNTING - GAS TANK VALVE
  • 17
    3304-409 SCREW
    SCREW
  • 18
    3305-416 TUBE, GAS TANK - ASSEMBLY (INC. 19 AND TWO NO. 20)
    TUBE, GAS TANK - ASSEMBLY (INC. 19 AND TWO NO. 20)
  • 19
    3303-351 ...CLAMP, TUBE
    ...CLAMP, TUBE
  • 20
    3303-349 ...CLIP, TUBE
    ...CLIP, TUBE
  • 21
    3305-501 STRAINER, FUEL - ASSEMBLY
    STRAINER, FUEL - ASSEMBLY
  • 22
    3305-421 TUBE, FUEL STRAINER - ASSEMBLY (INC. TWO NO. 20)
    TUBE, FUEL STRAINER - ASSEMBLY (INC. TWO NO. 20)
  • 23
    3305-422 TUBE, FUEL STRAINER - ASSEMBLY (INC. TWO NO. 3)
    TUBE, FUEL STRAINER - ASSEMBLY (INC. TWO NO. 3)
  • 24
    3305-418 GASKET, FUEL LEVEL SENSOR
    GASKET, FUEL LEVEL SENSOR
  • 25
    3305-417 CAP, FUEL LEVEL SENSOR
    CAP, FUEL LEVEL SENSOR
  • 26
    3305-551 BRACKET, MOUNTING - GAS TANK
    BRACKET, MOUNTING - GAS TANK
