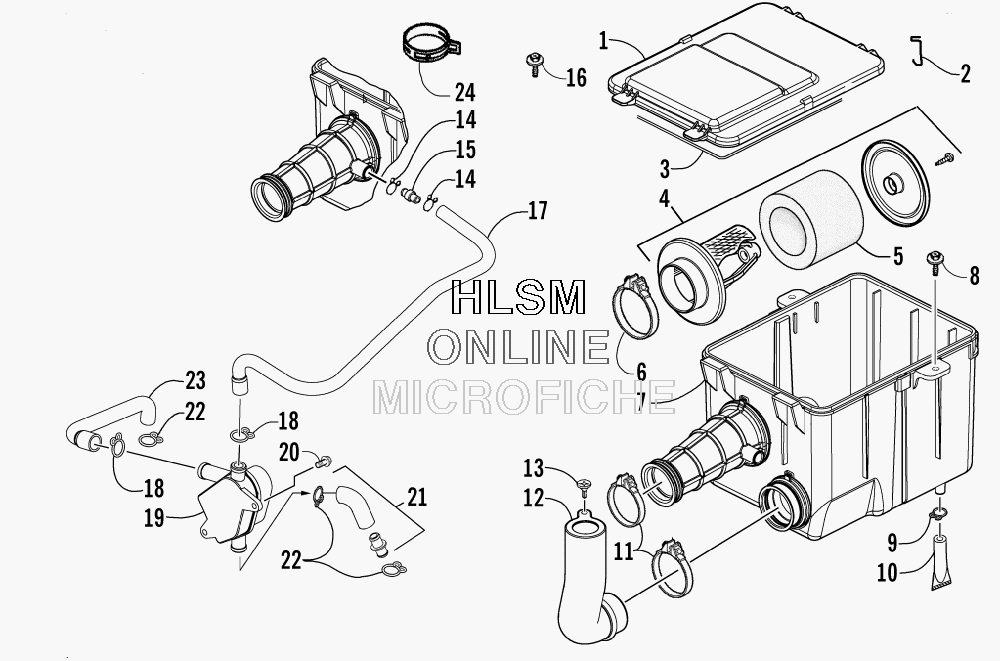

AIR INTAKE ASSEMBLY для Arctic Cat 250 DVX (BLACK - CAT GREEN) [A2008KSE2BUSE] - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    3303-705 COVER, AIR FILTER HOUSING
    COVER, AIR FILTER HOUSING
  • 2
    3303-708 CLIP, SPRING
    CLIP, SPRING
  • 3
    3303-703 SEAL, AIR FILTER HOUSING COVER
    SEAL, AIR FILTER HOUSING COVER
  • 4
    3303-704 FILTER, AIR - ASSEMBLY (INC. 5)
    FILTER, AIR - ASSEMBLY (INC. 5)
  • 6
    3304-416 CLAMP, HOSE W/SCREW
    CLAMP, HOSE W/SCREW
  • 7
    3305-423 BODY, AIR FILTER HOUSING
    BODY, AIR FILTER HOUSING
  • 8
    3304-652 SCREW W/WASHER
    SCREW W/WASHER
  • 9
    3303-716 CLIP, TUBE
    CLIP, TUBE
  • 10
    3305-424 TUBE, DRAIN
    TUBE, DRAIN
  • 11
    3303-709 CLAMP, HOSE W/SCREW
    CLAMP, HOSE W/SCREW
  • 12
    3303-710 DUCT
    DUCT
  • 13
    3304-062 SCREW, BODY
    SCREW, BODY
  • 14
    3304-433 CLIP, TUBE
    CLIP, TUBE
  • 15
    3303-711 JOINT, BLOW-BY
    JOINT, BLOW-BY
  • 16
    3304-117 SCREW, PAN-HEAD W/WASHER
    SCREW, PAN-HEAD W/WASHER
  • 17
    3303-734 TUBE B - OIL CATCH (INC. ONE NO. 18)
    TUBE B - OIL CATCH (INC. ONE NO. 18)
  • 18
    3303-714 ...CLIP, TUBE
    ...CLIP, TUBE
  • 19
    3303-706 CATCH, OIL
    CATCH, OIL
  • 20
    3304-553 BOLT, FLANGE
    BOLT, FLANGE
  • 21
    3303-735 TUBE C - OIL CATCH (INC. TWO NO. 22)
    TUBE C - OIL CATCH (INC. TWO NO. 22)
  • 22
    3303-712 ...CLIP, TUBE
    ...CLIP, TUBE
  • 23
    3303-733 TUBE A - OIL CATCH (INC. ONE NO. 18)
    TUBE A - OIL CATCH (INC. ONE NO. 18)
