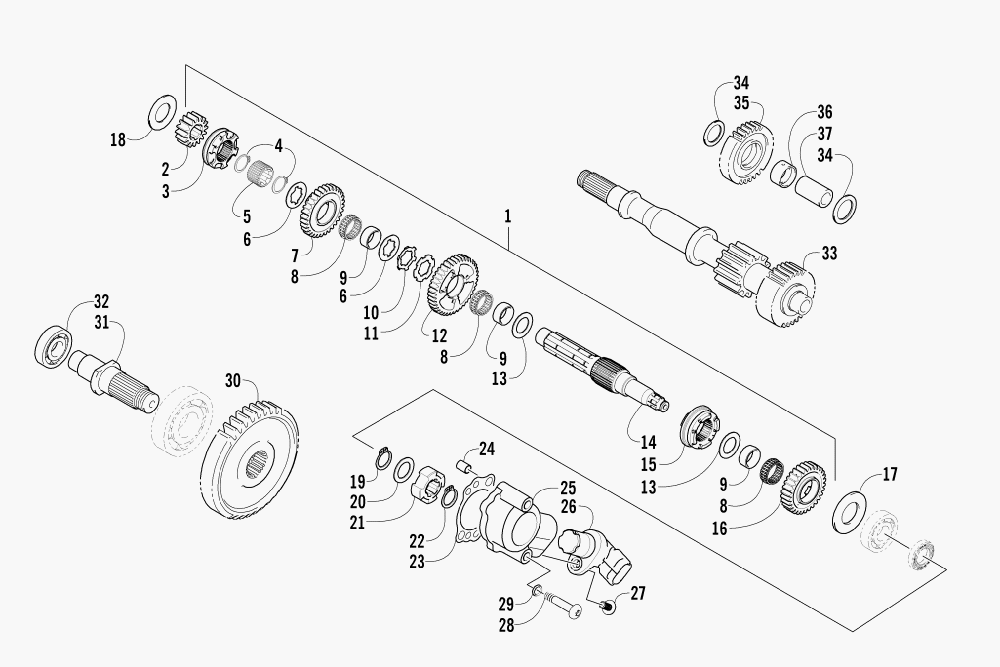

SECONDARY TRANSMISSION ASSEMBLY для Arctic Cat PROWLER (RED) [U2007P1S4BUSR] - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    0822-048 COUNTERSHAFT ASSEMBLY (INC. 2-16)
    COUNTERSHAFT ASSEMBLY (INC. 2-16)
  • 2
    0822-008 ...GEAR, DRIVE - NO. 2
    ...GEAR, DRIVE - NO. 2
  • 3
    0822-014 ...DOG, REVERSE DRIVEN GEAR
    ...DOG, REVERSE DRIVEN GEAR
  • 4
    0831-011 ...CIRCLIP
    ...CIRCLIP
  • 5
    0822-045 ...SPACER, REVERSE DRIVEN GEAR
    ...SPACER, REVERSE DRIVEN GEAR
  • 6
    0828-008 ...WASHER
    ...WASHER
  • 7
    0822-013 ...GEAR, REVERSE DRIVEN
    ...GEAR, REVERSE DRIVEN
  • 8
    0832-011 ...BEARING
    ...BEARING
  • 9
    0822-005 ...BUSHING
    ...BUSHING
  • 10
    0828-014 ...WASHER, LOCK
    ...WASHER, LOCK
  • 11
    0828-015 ...WASHER, LOCK
    ...WASHER, LOCK
  • 12
    0822-004 ...GEAR, DRIVEN - LOW
    ...GEAR, DRIVEN - LOW
  • 13
    0822-046 ...WASHER, DRIVEN GEAR
    ...WASHER, DRIVEN GEAR
  • 14
    0822-003 ...COUNTERSHAFT
    ...COUNTERSHAFT
  • 15
    0822-007 ...DOG, SLIDING
    ...DOG, SLIDING
  • 16
    0822-006 ...GEAR, DRIVEN - HIGH
    ...GEAR, DRIVEN - HIGH
  • 17
    0828-011 WASHER, DRIVE GEAR - LEFT
    WASHER, DRIVE GEAR - LEFT
  • 18
    0828-010 WASHER, DRIVE GEAR - RIGHT
    WASHER, DRIVE GEAR - RIGHT
  • 19
    0831-040 RING, RETAINING
    RING, RETAINING
  • 20
    0828-069 WASHER, THRUST
    WASHER, THRUST
  • 21
    0822-050 TRIGGER, SPEEDOMETER SENSOR
    TRIGGER, SPEEDOMETER SENSOR
  • 22
    0831-039 RING, RETAINING
    RING, RETAINING
  • 23
    0830-129 GASKET
    GASKET
  • 24
    0829-023 PIN, DOWEL
    PIN, DOWEL
  • 25
    0822-049 HOUSING, SPEEDOMETER SENSOR
    HOUSING, SPEEDOMETER SENSOR
  • 26
    0824-015 SENSOR, SPEEDOMETER
    SENSOR, SPEEDOMETER
  • 27
    8468-620 SCREW, MACHINE
    SCREW, MACHINE
  • 28
    8468-645 SCREW, MACHINE
    SCREW, MACHINE
  • 29
    0830-107 SEAL, FASTENER
    SEAL, FASTENER
  • 30
    0822-009 GEAR, DRIVEN - NO. 2
    GEAR, DRIVEN - NO. 2
  • 31
    0822-037 SHAFT, OUTPUT
    SHAFT, OUTPUT
  • 32
    0832-014 BEARING
    BEARING
  • 33
    0822-001 DRIVESHAFT
    DRIVESHAFT
  • 34
    0828-016 WASHER, REVERSE IDLE GEAR
    WASHER, REVERSE IDLE GEAR
  • 35
    0822-011 GEAR, REVERSE IDLE
    GEAR, REVERSE IDLE
  • 36
    0822-012 BUSHING, REVERSE IDLE GEAR
    BUSHING, REVERSE IDLE GEAR
  • 37
    0822-015 SHAFT, REVERSE IDLE
    SHAFT, REVERSE IDLE
