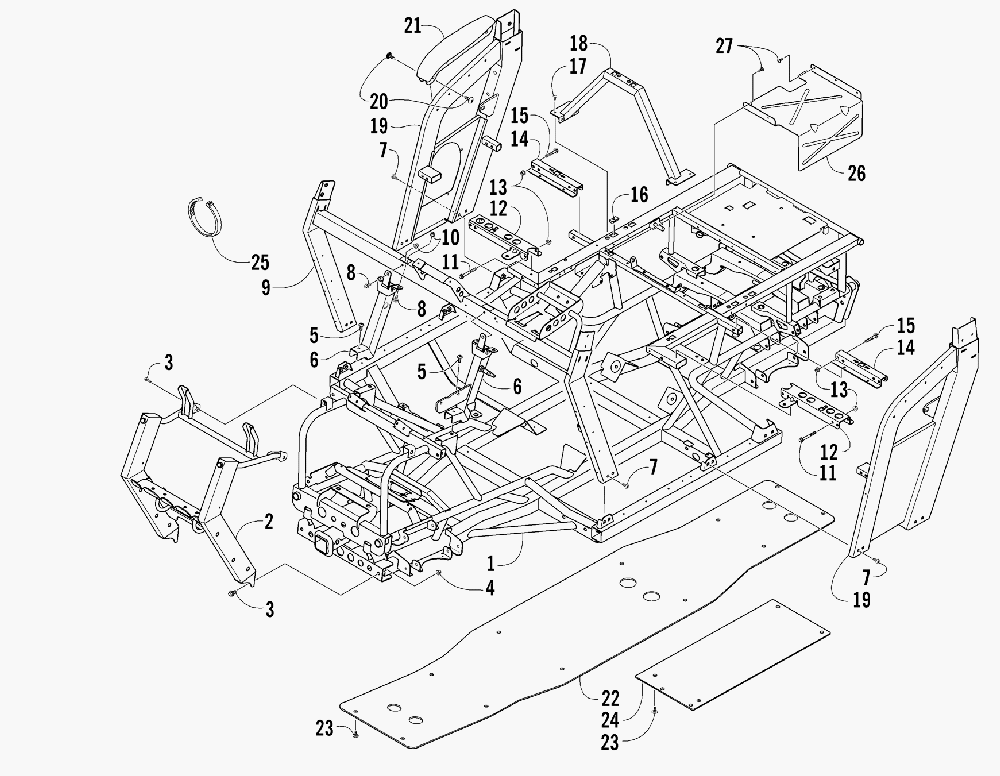

FRAME AND RELATED PARTS для Arctic Cat PROWLER (RED) [U2007P1S4BUSR] - 2007 года выпуска
-
№АртикулНазвание
-
12506-202 FRAME, MAINFRAME, MAIN
-
21506-453 BUMPERBUMPER
-
38409-020 SCREW, CAPSCREW, CAP
-
48428-002 NUT, FLANGE LOCKNUT, FLANGE LOCK
-
58476-820 SCREW, MACHINESCREW, MACHINE
-
61506-797 BRACKET, STEERING SUPPORT - RIGHTBRACKET, STEERING SUPPORT - RIGHT
-
60502-853 BRACKET, STEERING SUPPORT - LEFTBRACKET, STEERING SUPPORT - LEFT
-
70423-642 SCREW, MACHINESCREW, MACHINE
-
88408-820 SCREW, MACHINESCREW, MACHINE
-
92506-220 SUPPORT, STEERINGSUPPORT, STEERING
-
108424-802 NUT, FLANGE LOCKNUT, FLANGE LOCK
-
118408-870 SCREW, CAPSCREW, CAP
-
121506-844 BRACKET, SEAT - SUPPORT - FRONT RIGHTBRACKET, SEAT - SUPPORT - FRONT RIGHT
-
121506-845 BRACKET, SEAT - SUPPORT - FRONT LEFTBRACKET, SEAT - SUPPORT - FRONT LEFT
-
138427-802 NUT, FLANGE LOCKNUT, FLANGE LOCK
-
141506-842 BRACKET, SEAT - SUPPORT - REARBRACKET, SEAT - SUPPORT - REAR
-
158408-850 SCREW, CAPSCREW, CAP
-
160423-577 CLIP, UCLIP, U
-
178476-616 SCREW, MACHINESCREW, MACHINE
-
181506-835 SUPPORT, CANOPYSUPPORT, CANOPY
-
192506-304 SUPPORT, OVERHEAD - RIGHTSUPPORT, OVERHEAD - RIGHT
-
192506-305 SUPPORT, OVERHEAD - LEFTSUPPORT, OVERHEAD - LEFT
-
200623-544 PLUGPLUG
-
211406-883 PAD, ARMRESTPAD, ARMREST
-
221406-720 PANEL, BELLYPANEL, BELLY
-
230423-545 SCREW, BODYSCREW, BODY
-
241406-721 PANEL, BELLY - SIDEPANEL, BELLY - SIDE
-
250123-788 CABLE TIECABLE TIE
-
261406-753 SHIELD, HEATSHIELD, HEAT
-
270623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
