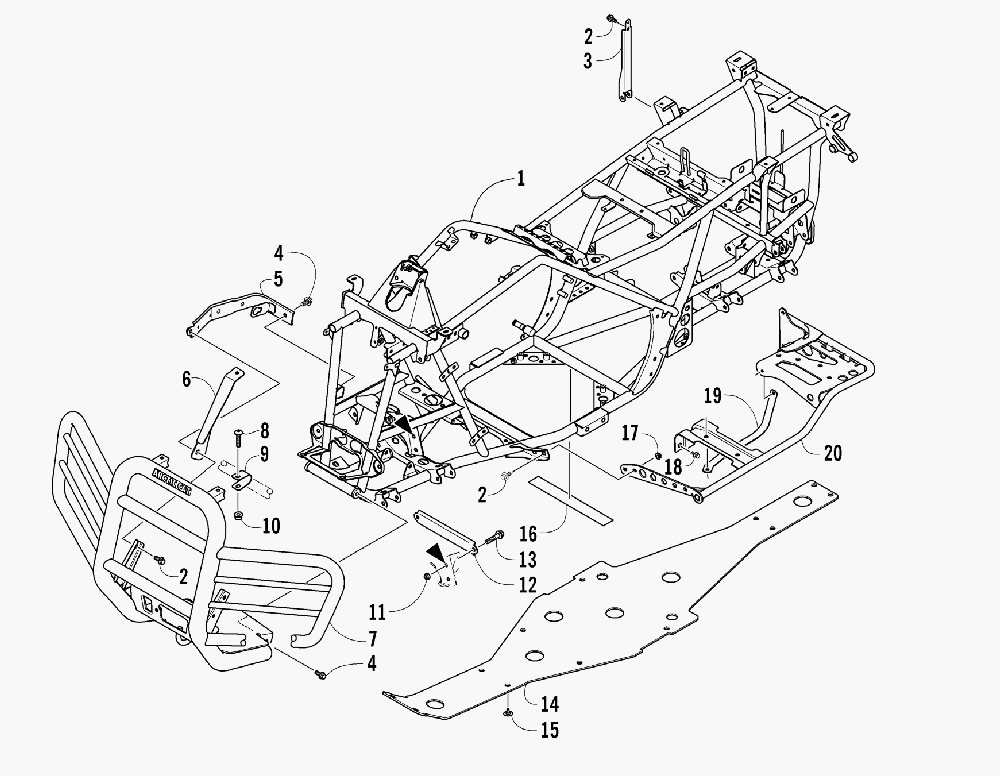

FRAME AND RELATED PARTS для Arctic Cat 700 DIESEL (RED) [A2007TBT4DUSR] - 2007 года выпуска
-
№АртикулНазвание
-
12506-006 FRAME, MAINFRAME, MAIN
-
28408-816 SCREW, CAPSCREW, CAP
-
31506-548 CHANNEL, SHOCK SUPPORTCHANNEL, SHOCK SUPPORT
-
48409-020 SCREW, CAPSCREW, CAP
-
52506-283 CHANNEL, BUMPER MOUNTING - RIGHTCHANNEL, BUMPER MOUNTING - RIGHT
-
52506-285 CHANNEL, BUMPER MOUNTING - LEFTCHANNEL, BUMPER MOUNTING - LEFT
-
61506-562 BRACKET, MOUNTING - BUMPER - RIGHTBRACKET, MOUNTING - BUMPER - RIGHT
-
61506-563 BRACKET, MOUNTING - BUMPER - LEFTBRACKET, MOUNTING - BUMPER - LEFT
-
72506-420 BUMPERBUMPER
-
88468-845 SCREW, MACHINESCREW, MACHINE
-
91506-667 STRAP, BUMPER SUPPORTSTRAP, BUMPER SUPPORT
-
108424-805 NUT, LOCKNUT, LOCK
-
118428-002 NUT, LOCKNUT, LOCK
-
121506-429 BRACE, A-ARMBRACE, A-ARM
-
138409-025 SCREW, CAPSCREW, CAP
-
142406-253 PANEL, BELLYPANEL, BELLY
-
150423-101 SCREW, BODYSCREW, BODY
-
160406-289 PAD, FRAMEPAD, FRAME
-
178424-802 NUT, FLANGENUT, FLANGE
-
188409-016 SCREW, CAPSCREW, CAP
-
192406-216 STRAP, FOOTREST - RIGHTSTRAP, FOOTREST - RIGHT
-
192406-217 STRAP, FOOTREST - LEFTSTRAP, FOOTREST - LEFT
-
201506-848 FOOTREST - RIGHTFOOTREST - RIGHT
-
201506-849 FOOTREST - LEFTFOOTREST - LEFT
