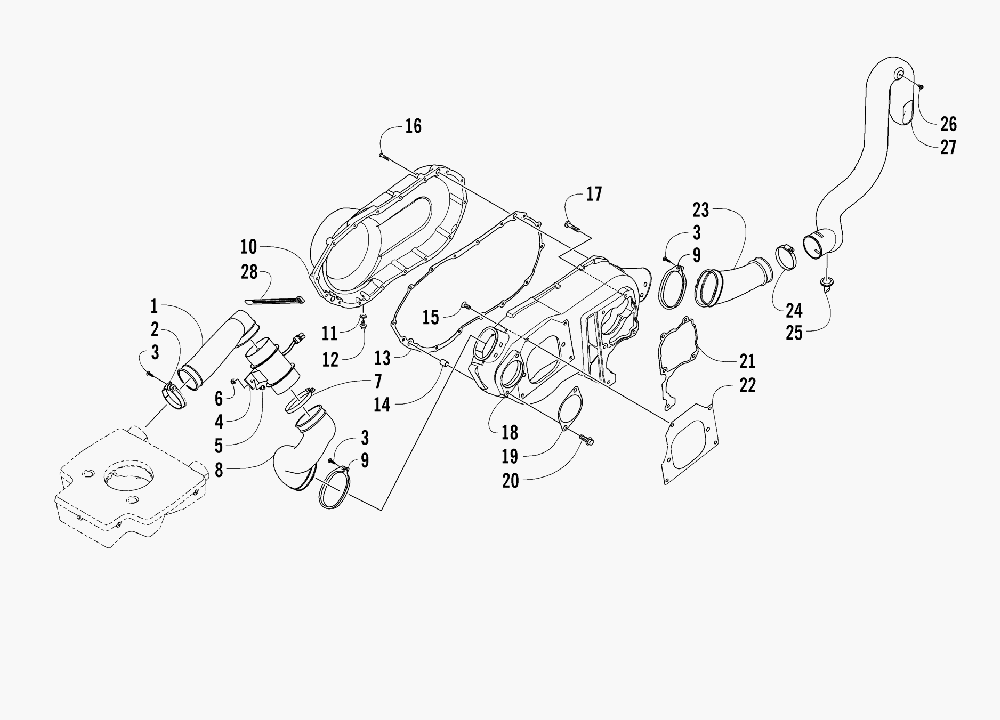

CASE/BELT COOLING ASSEMBLY для Arctic Cat 700 DIESEL (RED) [A2007TBT4DUSR] - 2007 года выпуска
-
№АртикулНазвание
-
10413-132 DUCT, BELT COOLING - FRONTDUCT, BELT COOLING - FRONT
-
20423-551 CLAMP, PLASTICCLAMP, PLASTIC
-
30423-342 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
40413-141 FAN, BELT COOLINGFAN, BELT COOLING
-
58475-512 SCREW, MACHINESCREW, MACHINE
-
68424-502 NUT, HEXNUT, HEX
-
70423-018 CLAMP, BOOTCLAMP, BOOT
-
80413-133 BOOT, BELT COOLING - INLETBOOT, BELT COOLING - INLET
-
90423-550 CLAMP, PLASTICCLAMP, PLASTIC
-
101502-157 COVER, CLUTCHCOVER, CLUTCH
-
110830-013 WASHER, CRUSHWASHER, CRUSH
-
128408-812 SCREW, CAPSCREW, CAP
-
131402-528 GASKET, V-BELT COVERGASKET, V-BELT COVER
-
140829-002 DOWEL, SPLITDOWEL, SPLIT
-
158473-820 SCREW, MACHINESCREW, MACHINE
-
168468-630 SCREW, MACHINESCREW, MACHINE
-
170423-118 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
181402-527 COVER, CLUTCHCOVER, CLUTCH
-
191402-526 GASKET, GEARCASEGASKET, GEARCASE
-
201402-524 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
210413-134 BOOT, BELT COOLING - OUTLETBOOT, BELT COOLING - OUTLET
-
220423-380 CLAMP, BOOTCLAMP, BOOT
-
230470-442 VALVE, DRAINVALVE, DRAIN
-
240623-301 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
250413-106 DUCT, BELT COOLING - REARDUCT, BELT COOLING - REAR
-
260623-316 CABLE TIECABLE TIE
