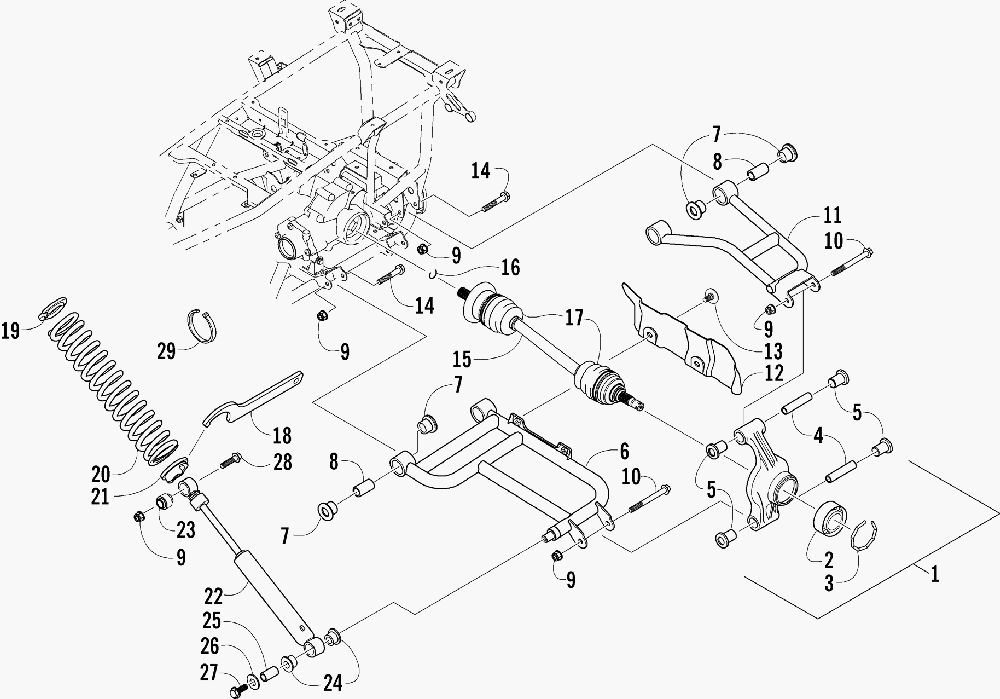

REAR SUSPENSION ASSEMBLY для Arctic Cat 650 H1 TRV (RED) [A2007TBS4BUSR] - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    0504-372 KNUCKLE, RIGHT REAR - ASSEMBLY (INC. 2-5)
    KNUCKLE, RIGHT REAR - ASSEMBLY (INC. 2-5)
  • 1
    0504-373 KNUCKLE, LEFT REAR - ASSEMBLY (INC. 2-5)
    KNUCKLE, LEFT REAR - ASSEMBLY (INC. 2-5)
  • 2
    1402-027 ...BEARING, WHEEL HUB
    ...BEARING, WHEEL HUB
  • 3
    0423-423 ...RING, RETAINING
    ...RING, RETAINING
  • 4
    0403-038 ...COLLAR, SUSPENSION BUSHING
    ...COLLAR, SUSPENSION BUSHING
  • 5
    0403-032 ...BUSHING, SUSPENSION
    ...BUSHING, SUSPENSION
  • 6
    0504-440 A-ARM, REAR - LOWER RIGHT - PLATINUM (INC. 7-8) (RED) (CAT GREEN)
    A-ARM, REAR - LOWER RIGHT - PLATINUM (INC. 7-8) (RED) (CAT GREEN)
  • 6
    0504-441 A-ARM, REAR - LOWER LEFT - PLATINUM (INC. 7-8) (RED) (CAT GREEN)
    A-ARM, REAR - LOWER LEFT - PLATINUM (INC. 7-8) (RED) (CAT GREEN)
  • 6
    0504-438 A-ARM, REAR - LOWER RIGHT - BLACK (INC. 7-8) (GREEN)
    A-ARM, REAR - LOWER RIGHT - BLACK (INC. 7-8) (GREEN)
  • 6
    0504-439 A-ARM, REAR - LOWER LEFT - BLACK (INC. 7-8) (GREEN)
    A-ARM, REAR - LOWER LEFT - BLACK (INC. 7-8) (GREEN)
  • 7
    0403-115 ...BUSHING
    ...BUSHING
  • 8
    0403-114 ...COLLAR
    ...COLLAR
  • 9
    8428-002 NUT, LOCK
    NUT, LOCK
  • 10
    8409-000 SCREW, CAP
    SCREW, CAP
  • 11
    0504-476 A-ARM, REAR - UPPER RIGHT - PLATINUM (INC. 7-8) (RED) (CAT GREEN)
    A-ARM, REAR - UPPER RIGHT - PLATINUM (INC. 7-8) (RED) (CAT GREEN)
  • 11
    0504-477 A-ARM, REAR - UPPER LEFT - PLATINUM (INC. 7-8) (RED) (CAT GREEN)
    A-ARM, REAR - UPPER LEFT - PLATINUM (INC. 7-8) (RED) (CAT GREEN)
  • 11
    0504-470 A-ARM, REAR - UPPER RIGHT - BLACK (INC. 7-8) (GREEN)
    A-ARM, REAR - UPPER RIGHT - BLACK (INC. 7-8) (GREEN)
  • 11
    0504-471 A-ARM, REAR - UPPER LEFT - BLACK (INC. 7-8) (GREEN)
    A-ARM, REAR - UPPER LEFT - BLACK (INC. 7-8) (GREEN)
  • 12
    0441-754 GUARD, BOOT - RIGHT - RED (RED)
    GUARD, BOOT - RIGHT - RED (RED)
  • 12
    0441-755 GUARD, BOOT - LEFT - RED (RED)
    GUARD, BOOT - LEFT - RED (RED)
  • 12
    1441-004 GUARD, BOOT - RIGHT - GREEN (GREEN)
    GUARD, BOOT - RIGHT - GREEN (GREEN)
  • 12
    1441-005 GUARD, BOOT - LEFT - GREEN (GREEN)
    GUARD, BOOT - LEFT - GREEN (GREEN)
  • 12
    0441-758 GUARD, BOOT - RIGHT - CAT GREEN (CAT GREEN)
    GUARD, BOOT - RIGHT - CAT GREEN (CAT GREEN)
  • 12
    0441-759 GUARD, BOOT - LEFT - CAT GREEN (CAT GREEN)
    GUARD, BOOT - LEFT - CAT GREEN (CAT GREEN)
  • 13
    0423-545 SCREW, BODY
    SCREW, BODY
  • 14
    8409-075 SCREW, CAP
    SCREW, CAP
  • 15
    0502-811 AXLE, DRIVE - REAR (INC. 16-17)
    AXLE, DRIVE - REAR (INC. 16-17)
  • 16
    0441-893 ...CLIP, RETAINING
    ...CLIP, RETAINING
  • 17
    0436-276 ...REPAIR KIT, BOOT
    ...REPAIR KIT, BOOT
  • 18
    0441-587 WRENCH, SPANNER
    WRENCH, SPANNER
  • 19
    1603-889 RETAINER, SPRING
    RETAINER, SPRING
  • 20
    0404-145 SPRING, SUSPENSION - PLATINUM (RED) (CAT GREEN)
    SPRING, SUSPENSION - PLATINUM (RED) (CAT GREEN)
  • 20
    0404-144 SPRING, SUSPENSION - BLACK (GREEN)
    SPRING, SUSPENSION - BLACK (GREEN)
  • 21
    0404-057 CAM, SPRING ADJUSTER
    CAM, SPRING ADJUSTER
  • 22
    0404-147 SHOCK ABSORBER - REAR (INC. 23-25)
    SHOCK ABSORBER - REAR (INC. 23-25)
  • 23
    0403-182 ...BUSHING, DOUBLE-BONDED
    ...BUSHING, DOUBLE-BONDED
  • 24
    0603-955 ...BUSHING, SHOCK ABSORBER
    ...BUSHING, SHOCK ABSORBER
  • 25
    1603-219 ...SLEEVE, SHOCK ABSORBER
    ...SLEEVE, SHOCK ABSORBER
  • 26
    0423-087 WASHER
    WASHER
  • 27
    8408-820 SCREW, CAP
    SCREW, CAP
  • 28
    8409-050 SCREW, CAP
    SCREW, CAP
  • 29
    0123-788 CABLE TIE
    CABLE TIE
