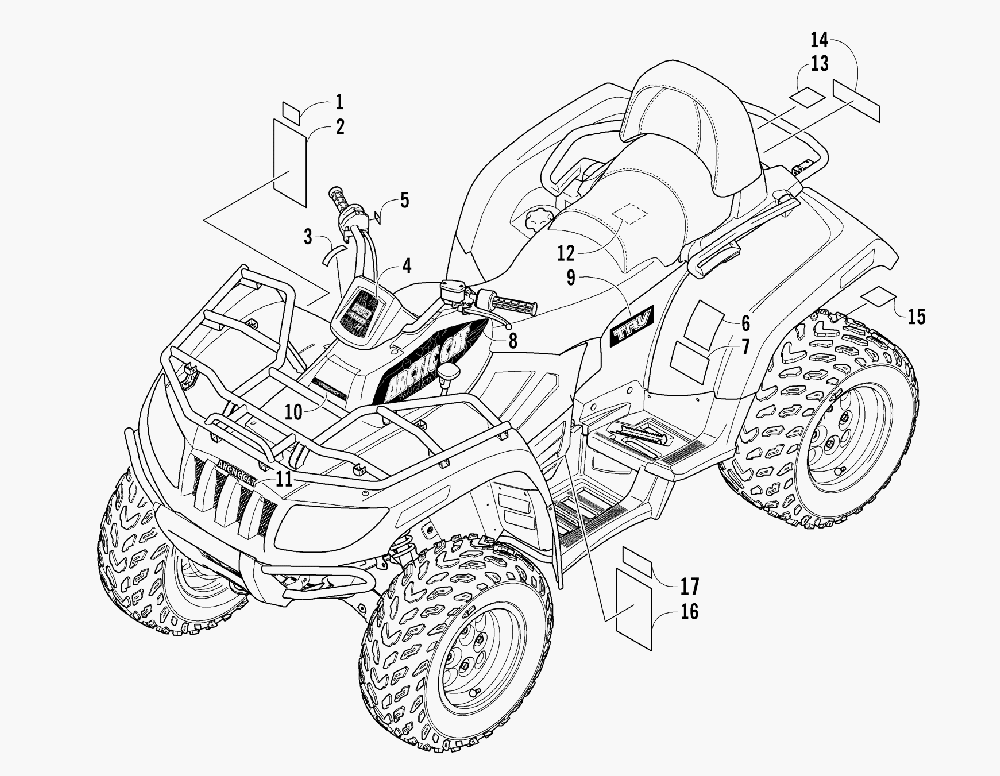

DECALS для Arctic Cat 650 H1 TRV (RED) [A2007TBS4BUSR] - 2007 года выпуска
-
№АртикулНазвание
-
10411-666 DECAL, WARNING - REVERSE/PRE-RIDE*DECAL, WARNING - REVERSE/PRE-RIDE*
-
20411-894 DECAL, WARNING - HILLDECAL, WARNING - HILL
-
30411-426 DECAL, WARNING - CLUTCH COVERDECAL, WARNING - CLUTCH COVER
-
41411-376 DECAL, INSTRUMENT POD (RED)DECAL, INSTRUMENT POD (RED)
-
41411-378 DECAL, INSTRUMENT POD (GREEN)DECAL, INSTRUMENT POD (GREEN)
-
41411-379 DECAL, INSTRUMENT POD (CAT GREEN)DECAL, INSTRUMENT POD (CAT GREEN)
-
50411-966 DECAL, WARNING - DIFFERENTIAL LOCKDECAL, WARNING - DIFFERENTIAL LOCK
-
60411-833 DECAL, PASSENGERDECAL, PASSENGER
-
70411-832 DECAL, WARNING - TIRE PRESSUREDECAL, WARNING - TIRE PRESSURE
-
81411-356 DECAL, SIDE - UPPER RIGHT (RED)DECAL, SIDE - UPPER RIGHT (RED)
-
81411-357 DECAL, SIDE - UPPER LEFT (RED)DECAL, SIDE - UPPER LEFT (RED)
-
81411-358 DECAL, SIDE - UPPER RIGHT (GREEN)DECAL, SIDE - UPPER RIGHT (GREEN)
-
81411-359 DECAL, SIDE - UPPER LEFT (GREEN)DECAL, SIDE - UPPER LEFT (GREEN)
-
81411-360 DECAL, SIDE - UPPER RIGHT (CAT GREEN)DECAL, SIDE - UPPER RIGHT (CAT GREEN)
-
81411-361 DECAL, SIDE - UPPER LEFT (CAT GREEN)DECAL, SIDE - UPPER LEFT (CAT GREEN)
-
91411-264 DECAL, GRAPHIC - TRV (RED)DECAL, GRAPHIC - TRV (RED)
-
91411-266 DECAL, GRAPHIC - TRV (GREEN)DECAL, GRAPHIC - TRV (GREEN)
-
91411-262 DECAL, GRAPHIC - TRV (CAT GREEN)DECAL, GRAPHIC - TRV (CAT GREEN)
-
101411-050 DECAL, "SPEEDRACK"DECAL, "SPEEDRACK"
-
110411-840 DECAL, FRONT (RED)DECAL, FRONT (RED)
-
110411-839 DECAL, FRONT (GREEN)DECAL, FRONT (GREEN)
-
110411-841 DECAL, FRONT (CAT GREEN)DECAL, FRONT (CAT GREEN)
-
121411-269 DECAL, WARNING - PASSENGERDECAL, WARNING - PASSENGER
-
131411-251 DECAL, WARNING - SEAT/PASSENGERDECAL, WARNING - SEAT/PASSENGER
-
140411-814 DECAL, "ARCTIC CAT" - WHITEDECAL, "ARCTIC CAT" - WHITE
-
151411-077 DECAL, WARNING - TOWINGDECAL, WARNING - TOWING
-
160411-753 DECAL, WARNING - AGE/GENERAL*DECAL, WARNING - AGE/GENERAL*
-
171411-574 DECAL, WARNING - OFF-ROAD ONLYDECAL, WARNING - OFF-ROAD ONLY
