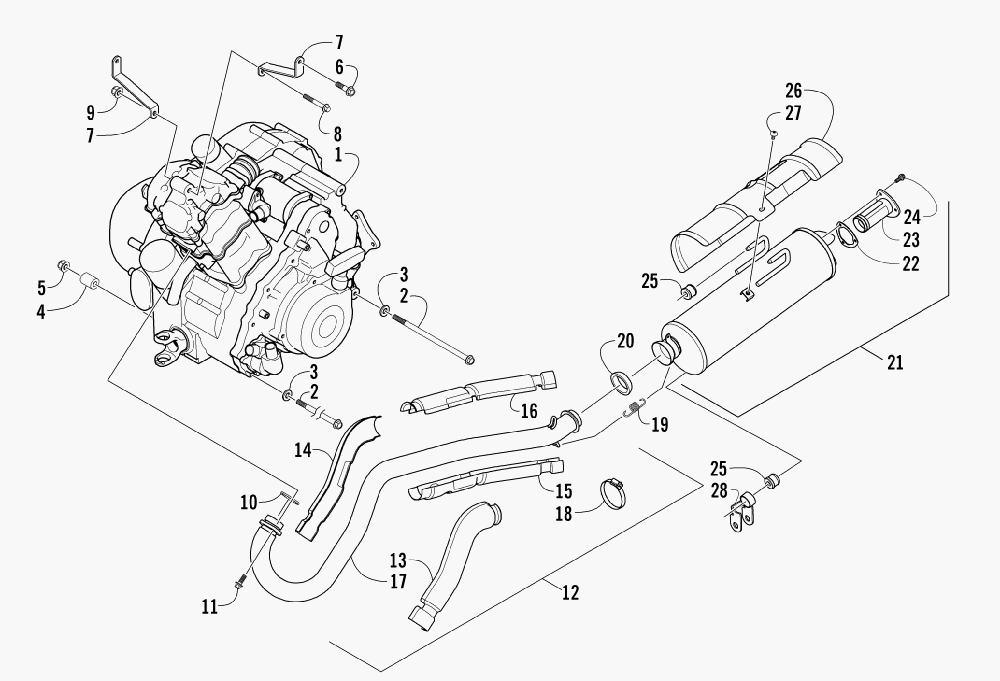

ENGINE AND EXHAUST для Arctic Cat 500 FIS AUTO (RED) [A2007IBM4BUSR] - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    0462-029 ENGINE
    ENGINE
  • 2
    0423-405 SCREW, CAP
    SCREW, CAP
  • 3
    0423-426 WASHER, ENGINE
    WASHER, ENGINE
  • 4
    0423-042 SPACER, ENGINE
    SPACER, ENGINE
  • 5
    8428-002 NUT, LOCK
    NUT, LOCK
  • 6
    8408-816 SCREW, CAP
    SCREW, CAP
  • 7
    1506-632 BRACKET, ENGINE - RIGHT
    BRACKET, ENGINE - RIGHT
  • 7
    1506-633 BRACKET, ENGINE - LEFT
    BRACKET, ENGINE - LEFT
  • 8
    8408-860 SCREW, CAP
    SCREW, CAP
  • 9
    8424-802 NUT
    NUT
  • 10
    0412-007 SEAL, EXHAUST
    SEAL, EXHAUST
  • 11
    8408-820 SCREW, CAP
    SCREW, CAP
  • 12
    0512-337 PIPE, EXHAUST - ASSEMBLY (INC. 13-18)
    PIPE, EXHAUST - ASSEMBLY (INC. 13-18)
  • 13
    0412-349 ...SHIELD, EXHAUST PIPE
    ...SHIELD, EXHAUST PIPE
  • 14
    0412-348 ...SHIELD, EXHAUST PIPE
    ...SHIELD, EXHAUST PIPE
  • 15
    0412-339 ...SHIELD, EXHAUST PIPE
    ...SHIELD, EXHAUST PIPE
  • 16
    0412-350 ...SHIELD, EXHAUST PIPE
    ...SHIELD, EXHAUST PIPE
  • 17
    0512-336 ...PIPE, EXHAUST
    ...PIPE, EXHAUST
  • 18
    0423-317 ...HOSE CLAMP
    ...HOSE CLAMP
  • 19
    0612-668 SPRING, EXTENSION
    SPRING, EXTENSION
  • 20
    0412-375 SEAL, EXHAUST
    SEAL, EXHAUST
  • 21
    0512-306 MUFFLER - ASSEMBLY (INC. 22-24)
    MUFFLER - ASSEMBLY (INC. 22-24)
  • 22
    0412-313 ...GASKET, SPARK ARRESTER
    ...GASKET, SPARK ARRESTER
  • 23
    0512-219 ...SPARK ARRESTER ASSEMBLY
    ...SPARK ARRESTER ASSEMBLY
  • 24
    8408-616 ...SCREW, CAP
    ...SCREW, CAP
  • 25
    0412-215 BUSHING, EXHAUST PIPE
    BUSHING, EXHAUST PIPE
  • 26
    0412-373 COVER, MUFFLER
    COVER, MUFFLER
  • 27
    8477-610 SCREW, MACHINE
    SCREW, MACHINE
  • 28
    1506-732 CHANNEL, MUFFLER SUPPORT
    CHANNEL, MUFFLER SUPPORT
