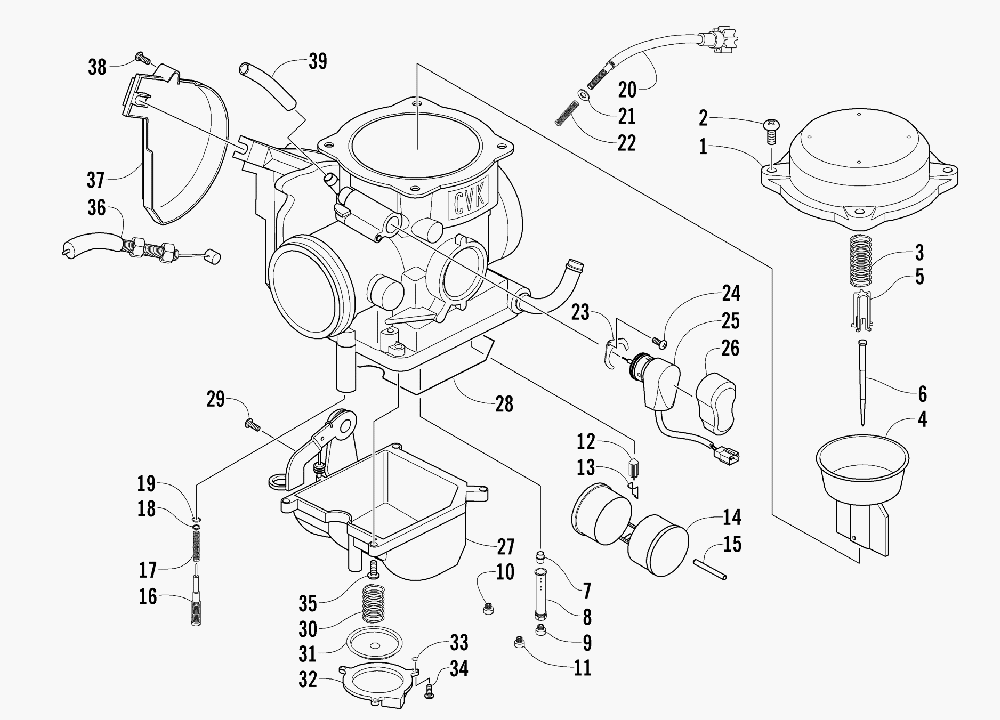

CARBURETOR для Arctic Cat 500 FIS AUTO (RED) [A2007IBM4BUSR] - 2007 года выпуска

  • №
    Артикул
    Название
  • -
    0470-533 COMPLETE ASSEMBLY
    COMPLETE ASSEMBLY
  • 1
    5507-001 COVER, TOP
    COVER, TOP
  • 2
    5507-002 SCREW, TOP COVER
    SCREW, TOP COVER
  • 3
    5507-173 SPRING
    SPRING
  • 4
    5507-099 PISTON, VACUUM
    PISTON, VACUUM
  • 5
    5507-005 SEAT, SPRING
    SEAT, SPRING
  • 6
    5507-184 JET NEEDLE
    JET NEEDLE
  • 7
    5507-007 NEEDLE JET
    NEEDLE JET
  • 8
    5507-174 HOLDER, NEEDLE JET
    HOLDER, NEEDLE JET
  • 9
    5507-043 MAIN JET - 142
    MAIN JET - 142
  • 9
    5507-044 MAIN JET - 140 (OPTIONAL)
    MAIN JET - 140 (OPTIONAL)
  • 9
    5507-041 MAIN JET - 147 (OPTIONAL)
    MAIN JET - 147 (OPTIONAL)
  • 9
    5507-086 MAIN JET - 148 (OPTIONAL)
    MAIN JET - 148 (OPTIONAL)
  • 9
    5507-009 MAIN JET - 150 (OPTIONAL)
    MAIN JET - 150 (OPTIONAL)
  • 10
    5507-101 SLOW JET
    SLOW JET
  • 11
    5507-112 STARTER JET - 85
    STARTER JET - 85
  • 12
    5507-183 VALVE, FLOAT - SET (INC. 13)
    VALVE, FLOAT - SET (INC. 13)
  • 14
    5507-039 FLOAT SET (INC. 15)
    FLOAT SET (INC. 15)
  • 16
    5507-111 SCREW, PILOT - SET (INC. 17-19) (NOT A SERVICE PART)
    SCREW, PILOT - SET (INC. 17-19) (NOT A SERVICE PART)
  • 20
    5507-027 SCREW, IDLE ADJUST
    SCREW, IDLE ADJUST
  • 21
    5507-028 WASHER
    WASHER
  • 22
    5507-029 SPRING
    SPRING
  • 23
    5507-115 PLATE
    PLATE
  • 24
    5507-117 SCREW
    SCREW
  • 25
    5507-113 CHOKE, ELECTRIC
    CHOKE, ELECTRIC
  • 26
    5507-114 COVER, ELECTRIC CHOKE
    COVER, ELECTRIC CHOKE
  • 27
    5507-181 CHAMBER, FLOAT - ASSEMBLY (INC. 28-34)
    CHAMBER, FLOAT - ASSEMBLY (INC. 28-34)
  • 28
    5507-067 ...O-RING, FLOAT CHAMBER
    ...O-RING, FLOAT CHAMBER
  • 29
    5507-050 ...SCREW, DRAIN
    ...SCREW, DRAIN
  • 30
    5507-032 ...SPRING
    ...SPRING
  • 31
    5507-182 ...DIAPHRAGM ASSEMBLY
    ...DIAPHRAGM ASSEMBLY
  • 33
    5507-034 ...U-RING
    ...U-RING
  • 34
    5507-035 ...SCREW
    ...SCREW
  • 35
    5507-017 SCREW
    SCREW
  • 36
    0487-021 CABLE, THROTTLE
    CABLE, THROTTLE
  • 37
    5507-036 COVER
    COVER
  • 38
    5507-037 SCREW
    SCREW
  • 39
    0410-056 HOSE, VENT
    HOSE, VENT
