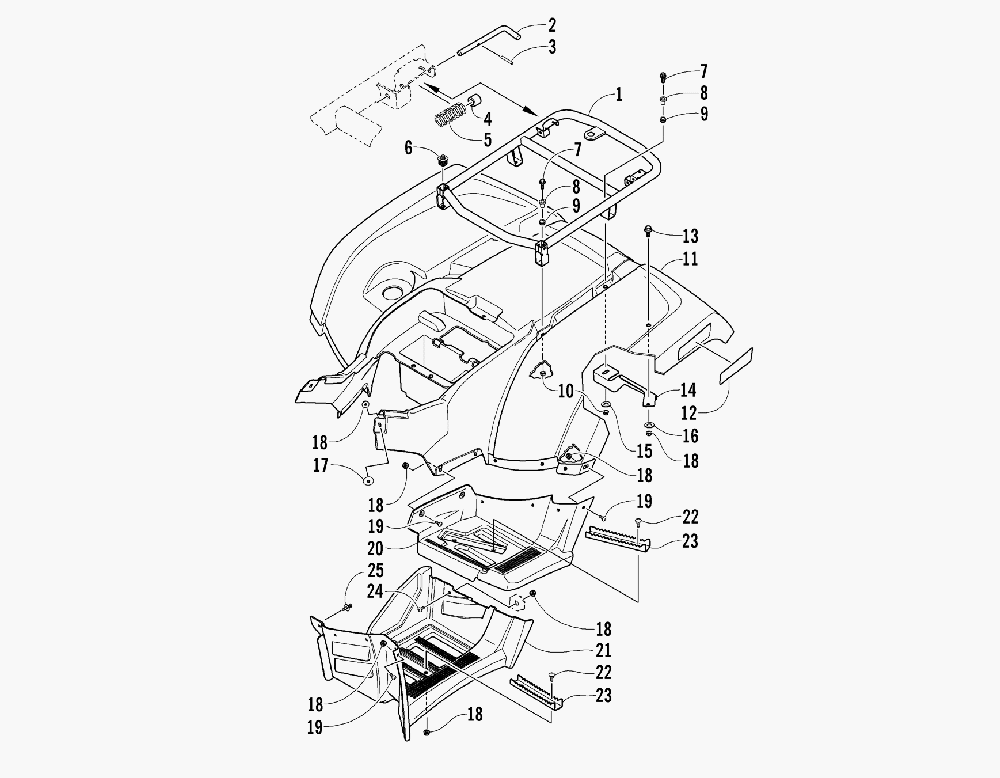

REAR BODY PANEL ASSEMBLY для Arctic Cat 400 TRV (RED) [A2007TBH4BUSR] - 2007 года выпуска
-
№АртикулНазвание
-
12506-221 RACK, REAR - ASSEMBLY (INC. 2-6)RACK, REAR - ASSEMBLY (INC. 2-6)
-
20541-504 ...PIN - ASSEMBLY (INC. 3)...PIN - ASSEMBLY (INC. 3)
-
30423-635 ......PIN, ROLL......PIN, ROLL
-
40423-677 ...COLLAR...COLLAR
-
50423-636 ...SPRING...SPRING
-
60441-592 ...BUSHING, RACK...BUSHING, RACK
-
78410-835 SCREW, MACHINESCREW, MACHINE
-
80423-669 SPACERSPACER
-
90423-465 GROMMETGROMMET
-
108432-802 NUT, LOCKNUT, LOCK
-
112506-348 PANEL, FENDER - RED (RED) (INC. 12)PANEL, FENDER - RED (RED) (INC. 12)
-
112506-350 PANEL, FENDER - GREEN (GREEN) (INC. 12)PANEL, FENDER - GREEN (GREEN) (INC. 12)
-
112506-349 PANEL, FENDER - CAT GREEN (CAT GREEN) (INC. 12)PANEL, FENDER - CAT GREEN (CAT GREEN) (INC. 12)
-
120411-820 ...DECAL, REFLECTOR - RIGHT...DECAL, REFLECTOR - RIGHT
-
120411-821 ...DECAL, REFLECTOR - LEFT...DECAL, REFLECTOR - LEFT
-
130423-654 SCREW, SHOULDERSCREW, SHOULDER
-
142506-092 BRACKET, REAR FENDER - RIGHTBRACKET, REAR FENDER - RIGHT
-
142506-093 BRACKET, REAR FENDER - LEFTBRACKET, REAR FENDER - LEFT
-
150423-087 WASHERWASHER
-
168050-222 WASHERWASHER
-
170423-101 SCREW, BODYSCREW, BODY
-
180423-540 NUT, LOCKNUT, LOCK
-
190423-419 SCREW, MACHINESCREW, MACHINE
-
202406-042 FOOTWELL, REAR - RIGHTFOOTWELL, REAR - RIGHT
-
202406-043 FOOTWELL, REAR - LEFTFOOTWELL, REAR - LEFT
-
211506-813 FOOTWELL - RIGHTFOOTWELL - RIGHT
-
212406-471 FOOTWELL - LEFTFOOTWELL - LEFT
-
220423-355 SCREW, SHOULDERSCREW, SHOULDER
-
231506-125 FOOTPEGFOOTPEG
-
248477-620 SCREW, MACHINESCREW, MACHINE
-
250623-362 RIVET, REINSTALLABLERIVET, REINSTALLABLE
