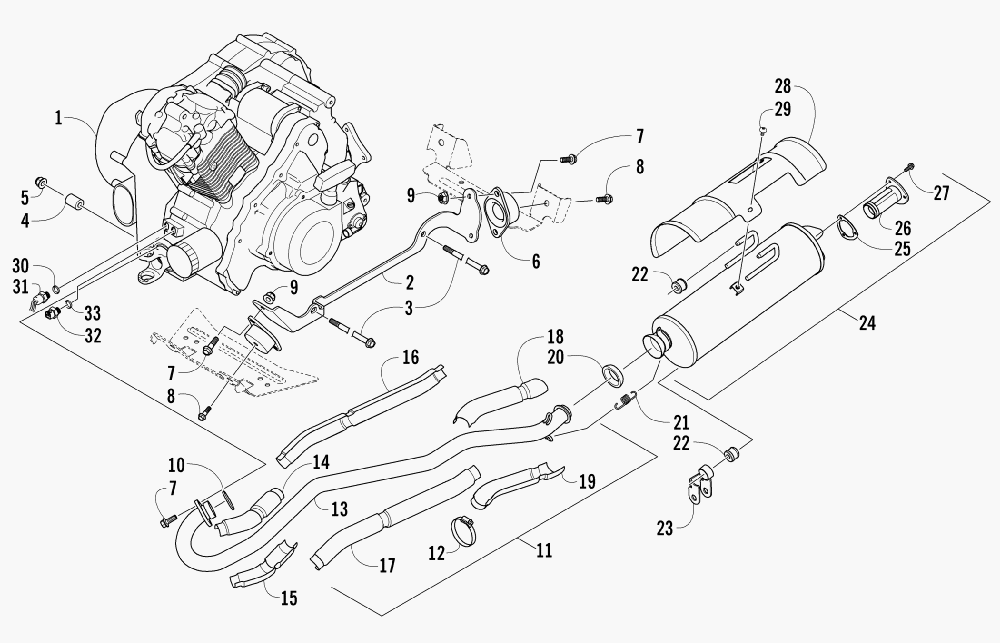

ENGINE AND EXHAUST для Arctic Cat 400 TRV (RED) [A2007TBH4BUSR] - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    0462-036 ENGINE
    ENGINE
  • 2
    1506-740 BRACKET, ENGINE MOUNTING - RIGHT
    BRACKET, ENGINE MOUNTING - RIGHT
  • 2
    1506-741 BRACKET, ENGINE MOUNTING - LEFT
    BRACKET, ENGINE MOUNTING - LEFT
  • 3
    0423-405 SCREW, CAP
    SCREW, CAP
  • 4
    0423-042 SPACER
    SPACER
  • 5
    8428-002 NUT, LOCK
    NUT, LOCK
  • 6
    2406-065 MOUNT, RUBBER - ENGINE
    MOUNT, RUBBER - ENGINE
  • 7
    8408-820 SCREW, CAP
    SCREW, CAP
  • 8
    8408-012 SCREW, CAP
    SCREW, CAP
  • 9
    8432-802 NUT
    NUT
  • 10
    0412-007 SEAL, EXHAUST PIPE
    SEAL, EXHAUST PIPE
  • 11
    0512-262 PIPE, EXHAUST - ASSEMBLY (INC. 12-19)
    PIPE, EXHAUST - ASSEMBLY (INC. 12-19)
  • 12
    0423-317 ...HOSE CLAMP
    ...HOSE CLAMP
  • 13
    0512-281 ...PIPE, EXHAUST
    ...PIPE, EXHAUST
  • 14
    0412-292 ...SHIELD, EXHAUST PIPE - FRONT - UPPER
    ...SHIELD, EXHAUST PIPE - FRONT - UPPER
  • 15
    0412-293 ...SHIELD, EXHAUST PIPE - FRONT - LOWER
    ...SHIELD, EXHAUST PIPE - FRONT - LOWER
  • 16
    0412-294 ...SHIELD, EXHAUST PIPE - CENTER - INNER
    ...SHIELD, EXHAUST PIPE - CENTER - INNER
  • 17
    0412-295 ...SHIELD, EXHAUST PIPE - CENTER - OUTER
    ...SHIELD, EXHAUST PIPE - CENTER - OUTER
  • 18
    0412-282 ...SHIELD, EXHAUST PIPE - REAR - UPPER
    ...SHIELD, EXHAUST PIPE - REAR - UPPER
  • 19
    0412-283 ...SHIELD, EXHAUST PIPE - REAR - LOWER
    ...SHIELD, EXHAUST PIPE - REAR - LOWER
  • 20
    0612-188 GASKET, EXHAUST PIPE
    GASKET, EXHAUST PIPE
  • 21
    0612-668 SPRING, EXTENSION
    SPRING, EXTENSION
  • 22
    0412-215 BUSHING, EXHAUST PIPE
    BUSHING, EXHAUST PIPE
  • 23
    1506-732 CHANNEL, MUFFLER SUPPORT
    CHANNEL, MUFFLER SUPPORT
  • 24
    0512-306 MUFFLER - ASSEMBLY (INC. 25-27)
    MUFFLER - ASSEMBLY (INC. 25-27)
  • 25
    0412-313 ...GASKET, SPARK ARRESTER
    ...GASKET, SPARK ARRESTER
  • 26
    0512-219 ...ARRESTER, SPARK - ASSEMBLY
    ...ARRESTER, SPARK - ASSEMBLY
  • 27
    8408-616 ...SCREW, CAP
    ...SCREW, CAP
  • 28
    0412-373 COVER, MUFFLER
    COVER, MUFFLER
  • 29
    8477-610 SCREW, MACHINE
    SCREW, MACHINE
  • 30
    3402-013 GASKET
    GASKET
  • 31
    3430-033 SWITCH, COOLING FAN
    SWITCH, COOLING FAN
  • 32
    3530-037 SWITCH, OIL LIGHT
    SWITCH, OIL LIGHT
  • 33
    3402-556 GASKET
    GASKET
