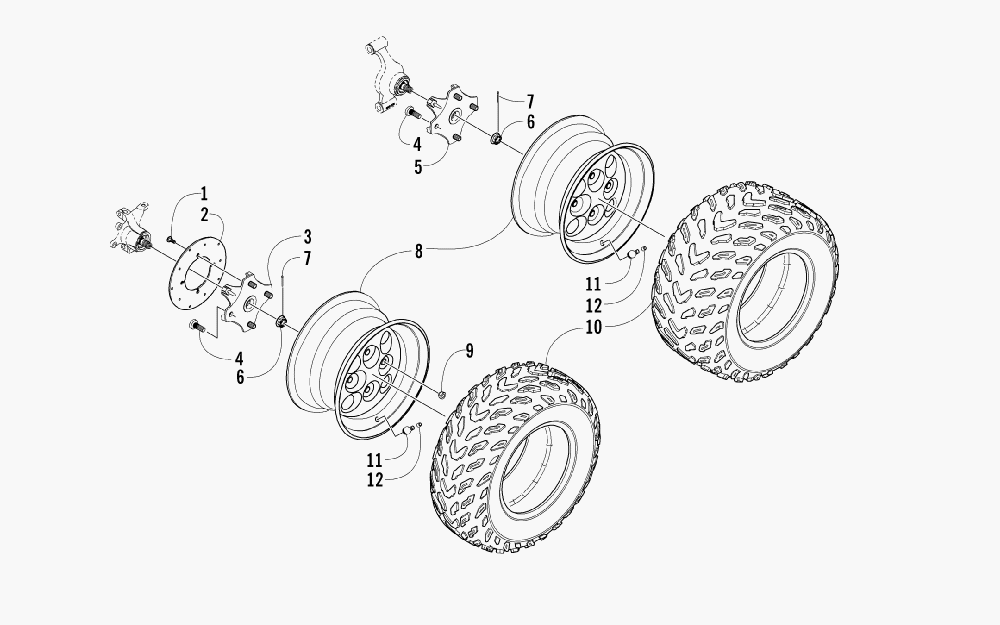

WHEEL AND TIRE ASSEMBLY для Arctic Cat 400 FIS MAN (RED) [A2007ICH4AUSR] - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    0423-557 SCREW, SHOULDER W/LOCTITE
    SCREW, SHOULDER W/LOCTITE
  • 2
    1402-225 DISC, BRAKE
    DISC, BRAKE
  • 3
    0502-599 HUB, WHEEL - FRONT (INC. 4)
    HUB, WHEEL - FRONT (INC. 4)
  • 4
    0402-974 ...STUD, WHEEL HUB
    ...STUD, WHEEL HUB
  • 5
    0502-601 HUB, WHEEL - REAR - LEFT (INC. 4)
    HUB, WHEEL - REAR - LEFT (INC. 4)
  • 5
    0502-599 HUB, WHEEL - REAR - RIGHT (INC. 4)
    HUB, WHEEL - REAR - RIGHT (INC. 4)
  • 6
    0423-607 NUT, CASTLE FLANGE
    NUT, CASTLE FLANGE
  • 7
    0423-407 PIN, COTTER
    PIN, COTTER
  • 8
    1402-127 WHEEL - FRONT - PLATINUM (RED) (CAT GREEN)
    WHEEL - FRONT - PLATINUM (RED) (CAT GREEN)
  • 8
    1402-115 WHEEL - REAR - PLATINUM (RED) (CAT GREEN)
    WHEEL - REAR - PLATINUM (RED) (CAT GREEN)
  • 8
    0402-856 WHEEL - FRONT - GRAY (GREEN)
    WHEEL - FRONT - GRAY (GREEN)
  • 8
    0402-858 WHEEL - REAR - GRAY (GREEN)
    WHEEL - REAR - GRAY (GREEN)
  • 9
    0423-408 NUT, MOUNTING - WHEEL
    NUT, MOUNTING - WHEEL
  • 10
    1402-548 TIRE - FRONT
    TIRE - FRONT
  • 10
    1402-549 TIRE - REAR
    TIRE - REAR
  • 11
    0402-064 STEM, VALVE (INC. 12)
    STEM, VALVE (INC. 12)
  • 12
    0402-140 ...CAP, VALVE STEM
    ...CAP, VALVE STEM
