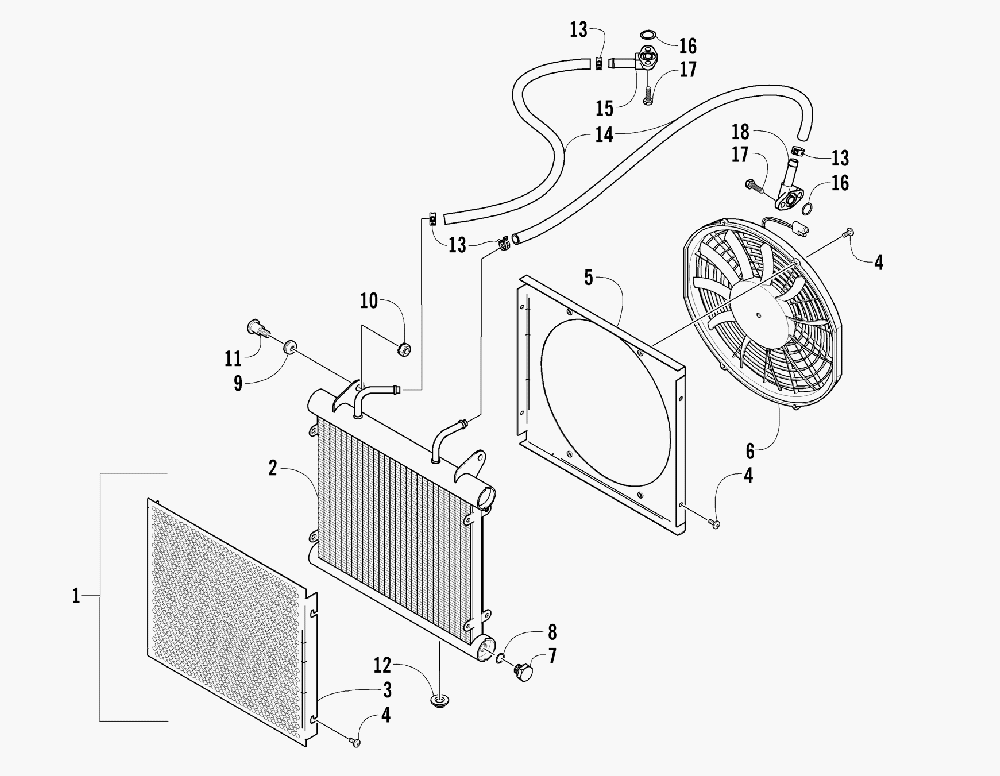

OIL COOLER ASSEMBLY (UP TO VIN: V17T230317) для Arctic Cat 400 FIS MAN (RED) [A2007ICH4AUSR] - 2007 года выпуска`
-
№АртикулНазвание
-
10413-118 COOLER, OIL - ASSEMBLY (INC. 2-9)COOLER, OIL - ASSEMBLY (INC. 2-9)
-
20413-053 ...COOLER, OIL...COOLER, OIL
-
30413-007 ...SCREEN, OIL COOLER...SCREEN, OIL COOLER
-
48475-512 ...SCREW, MACHINE...SCREW, MACHINE
-
50413-064 ...SHROUD, FAN...SHROUD, FAN
-
60413-123 ...FAN, COOLING...FAN, COOLING
-
70413-058 ...PLUG, DRAIN...PLUG, DRAIN
-
80413-059 ...O-RING...O-RING
-
90423-030 ...GROMMET...GROMMET
-
100623-038 NUT W/WASHERNUT W/WASHER
-
110423-484 SCREW, SHOULDERSCREW, SHOULDER
-
120423-028 BUSHING, STEMBUSHING, STEM
-
130423-098 CLAMP, HOSECLAMP, HOSE
-
140410-044 HOSE, OILHOSE, OIL
-
150410-013 FITTING, OILFITTING, OIL
-
160423-089 O-RING, OIL FITTINGO-RING, OIL FITTING
-
178471-616 SCREW, CAPSCREW, CAP
-
180410-012 FITTING, OIL - ANGLEDFITTING, OIL - ANGLED
