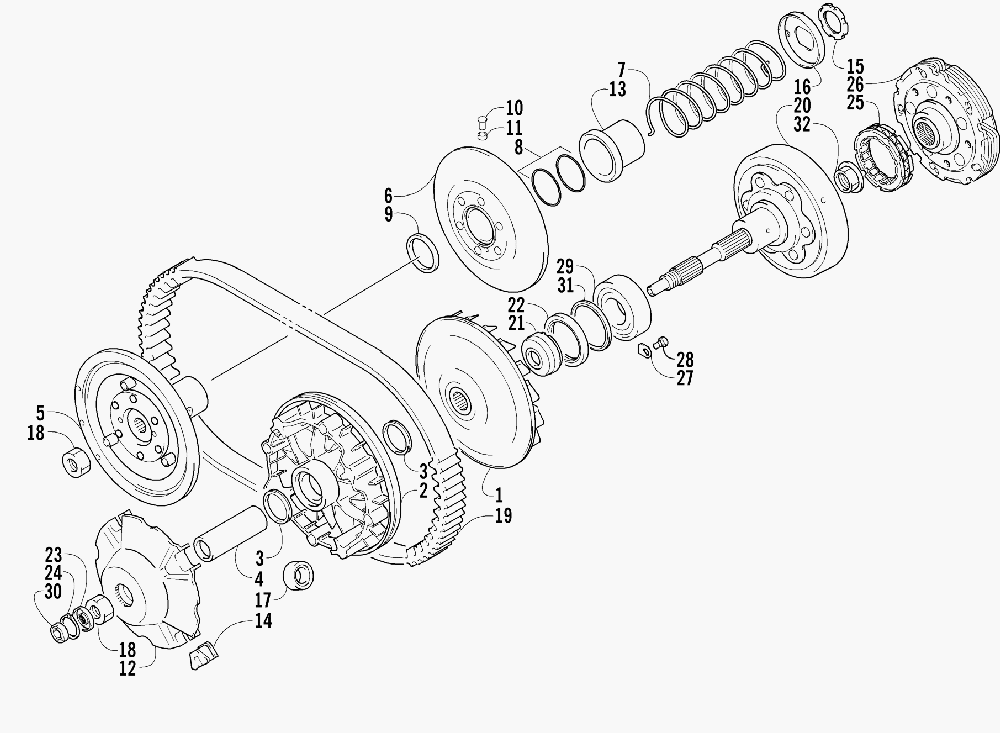

TRANSMISSION ASSEMBLY для Arctic Cat 400 FIS AUTO (RED) [A2007ICH4BUSR] - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    3402-622 FACE, FIXED DRIVE
    FACE, FIXED DRIVE
  • 2
    3402-623 FACE, MOVABLE DRIVE
    FACE, MOVABLE DRIVE
  • 3
    3402-624 SEAL, MOVABLE DRIVE FACE
    SEAL, MOVABLE DRIVE FACE
  • 4
    3402-625 SPACER, MOVABLE DRIVE FACE
    SPACER, MOVABLE DRIVE FACE
  • 5
    3402-626 FACE, FIXED DRIVEN
    FACE, FIXED DRIVEN
  • 6
    3402-627 FACE, MOVABLE DRIVEN
    FACE, MOVABLE DRIVEN
  • 7
    3423-486 SPRING, MOVABLE DRIVEN FACE
    SPRING, MOVABLE DRIVEN FACE
  • 8
    3423-487 O-RING, MOVABLE DRIVEN FACE
    O-RING, MOVABLE DRIVEN FACE
  • 9
    3402-629 SEAL, MOVABLE DRIVEN FACE
    SEAL, MOVABLE DRIVEN FACE
  • 10
    3402-477 PIN, MOVABLE DRIVEN FACE
    PIN, MOVABLE DRIVEN FACE
  • 11
    3402-478 SPACER, MOVABLE DRIVEN FACE
    SPACER, MOVABLE DRIVEN FACE
  • 12
    3402-630 PLATE, MOVABLE DRIVE FACE
    PLATE, MOVABLE DRIVE FACE
  • 13
    3402-631 SLEEVE, MOVABLE DRIVEN FACE
    SLEEVE, MOVABLE DRIVEN FACE
  • 14
    3402-481 DAMPER, MOVABLE DRIVE FACE
    DAMPER, MOVABLE DRIVE FACE
  • 15
    3423-489 NUT, DRIVEN PULLEY
    NUT, DRIVEN PULLEY
  • 16
    3402-632 HOLDER, MOVABLE DRIVEN FACE SPRING
    HOLDER, MOVABLE DRIVEN FACE SPRING
  • 17
    3403-208 ROLLER, MOVABLE DRIVE FACE
    ROLLER, MOVABLE DRIVE FACE
  • 18
    3423-437 NUT
    NUT
  • 19
    3402-664 V-BELT
    V-BELT
  • 20
    3402-620 HOUSING, CLUTCH
    HOUSING, CLUTCH
  • 21
    3402-621 SPACER, FIXED DRIVE FACE
    SPACER, FIXED DRIVE FACE
  • 22
    3402-977 SEAL, CLUTCH HOUSING
    SEAL, CLUTCH HOUSING
  • 23
    3402-574 SEAL, CLUTCH HOUSING
    SEAL, CLUTCH HOUSING
  • 24
    3423-505 CIRCLIP
    CIRCLIP
  • 25
    3446-003 CLUTCH, ONE-WAY
    CLUTCH, ONE-WAY
  • 26
    3446-354 SHOE, CLUTCH - ASSEMBLY
    SHOE, CLUTCH - ASSEMBLY
  • 27
    3446-031 RETAINER, BEARING
    RETAINER, BEARING
  • 28
    3423-370 SCREW, BEARING RETAINER
    SCREW, BEARING RETAINER
  • 29
    3402-567 BEARING
    BEARING
  • 30
    3402-693 BEARING
    BEARING
  • 31
    3423-353 O- RING(D:2.4,ID:39.7)
    O- RING(D:2.4,ID:39.7)
  • 32
    3423-501 NUT
    NUT
