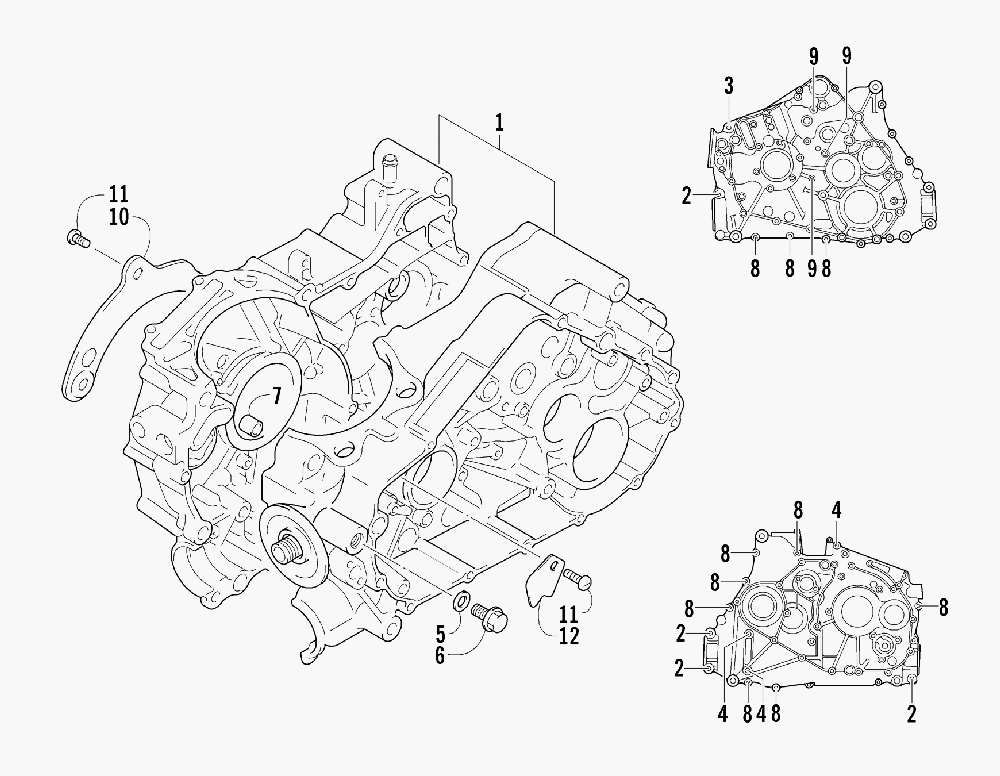

CRANKCASE ASSEMBLY для Arctic Cat 400 FIS AUTO (RED) [A2007ICH4BUSR] - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    3403-207 CRANKCASE ASSEMBLY (INC. 2-9)
    CRANKCASE ASSEMBLY (INC. 2-9)
  • 2
    3004-880 ...BOLT, 8X50
    ...BOLT, 8X50
  • 3
    3423-234 ...BOLT,8X60
    ...BOLT,8X60
  • 4
    3005-410 ...BOLT, 8X85
    ...BOLT, 8X85
  • 5
    3402-012 ...GASKET, OIL PRESSURE PLUG
    ...GASKET, OIL PRESSURE PLUG
  • 6
    3402-214 ...PLUG, OIL PRESSURE
    ...PLUG, OIL PRESSURE
  • 7
    3423-088 ...PIN, DOWEL
    ...PIN, DOWEL
  • 8
    3423-091 ...BOLT, CRANKCASE-M6X45
    ...BOLT, CRANKCASE-M6X45
  • 9
    3423-097 ...BOLT, CLUTCH COVER-M6X70
    ...BOLT, CLUTCH COVER-M6X70
  • 10
    3042-581 PLATE, OIL GUIDE - RIGHT
    PLATE, OIL GUIDE - RIGHT
  • 11
    3004-552 SCREW, OIL GUIDE PLATE
    SCREW, OIL GUIDE PLATE
  • 12
    3402-582 PLATE, OIL GUIDE - LEFT
    PLATE, OIL GUIDE - LEFT
