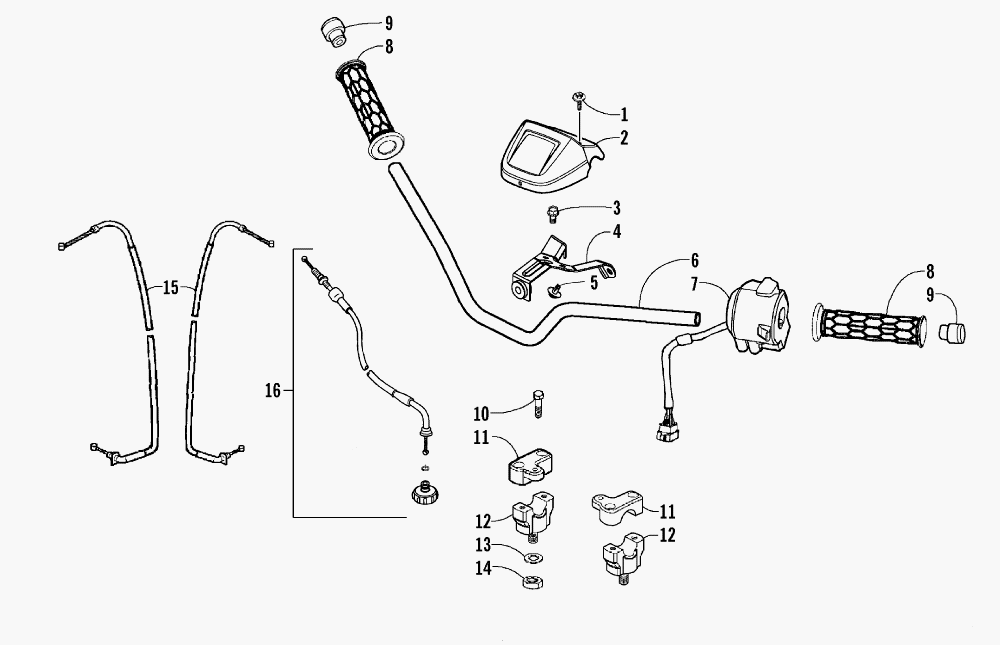

HANDLEBAR AND CONTROL ASSEMBLY для Arctic Cat 90 Y-12 YOUTH - UTILITY (RED) [A2006KUB2BUSR] - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    3304-029 BOLT W/WASHER
    BOLT W/WASHER
  • 2
    3304-500 INSTRUMENT POD (RED)
    INSTRUMENT POD (RED)
  • 2
    3304-501 INSTRUMENT POD (GREEN)
    INSTRUMENT POD (GREEN)
  • 3
    3304-553 BOLT, FLANGE
    BOLT, FLANGE
  • 4
    3304-506 BRACKET, INSTRUMENT POD
    BRACKET, INSTRUMENT POD
  • 5
    3304-552 CLIP, MUD GUARD
    CLIP, MUD GUARD
  • 6
    3303-434 HANDLEBAR
    HANDLEBAR
  • 7
    3303-424 SWITCH, HANDLEBAR - LEFT - ASSEMBLY
    SWITCH, HANDLEBAR - LEFT - ASSEMBLY
  • 8
    3303-203 GRIP, HANDLEBAR
    GRIP, HANDLEBAR
  • 9
    3303-196 END CAP, HANDLEBAR
    END CAP, HANDLEBAR
  • 10
    3303-398 BOLT, SOCKET
    BOLT, SOCKET
  • 11
    3303-197 HOLDER, HANDLEBAR - RIGHT
    HOLDER, HANDLEBAR - RIGHT
  • 11
    3303-198 HOLDER, HANDLEBAR - LEFT
    HOLDER, HANDLEBAR - LEFT
  • 12
    3303-199 HOLDER, HANDLEBAR - LOWER
    HOLDER, HANDLEBAR - LOWER
  • 13
    3303-336 WASHER
    WASHER
  • 14
    3303-325 NUT, HEX
    NUT, HEX
  • 15
    3303-173 CABLE, BRAKE - FRONT
    CABLE, BRAKE - FRONT
  • 16
    1502-096 CABLE, THROTTLE - KIT
    CABLE, THROTTLE - KIT
