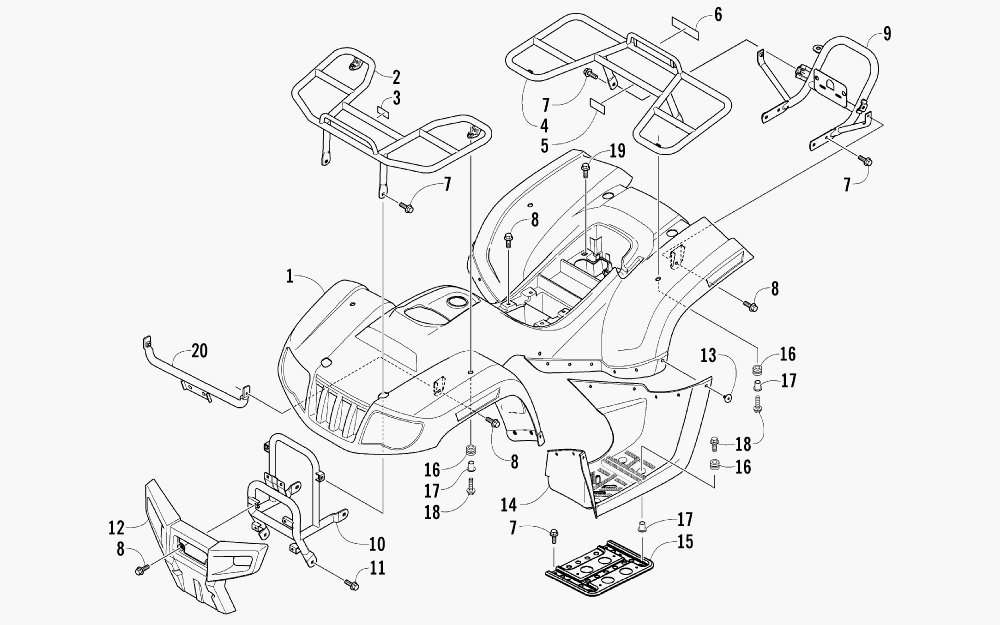

BODY PANEL AND RACK ASSEMBLY для Arctic Cat 90 Y-12 YOUTH - UTILITY (RED) [A2006KUB2BUSR] - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    3304-498 PANEL, BODY (RED)
    PANEL, BODY (RED)
  • 1
    3304-499 PANEL, BODY (GREEN)
    PANEL, BODY (GREEN)
  • 2
    3304-503 RACK - FRONT
    RACK - FRONT
  • 3
    1411-316 DECAL, WARNING - FRONT RACK LOAD
    DECAL, WARNING - FRONT RACK LOAD
  • 4
    3304-504 RACK - REAR
    RACK - REAR
  • 5
    1411-317 DECAL, WARNING - REAR RACK LOAD
    DECAL, WARNING - REAR RACK LOAD
  • 6
    1411-318 DECAL, "ARCTIC CAT" - WHITE
    DECAL, "ARCTIC CAT" - WHITE
  • 7
    3304-543 BOLT, FLANGE
    BOLT, FLANGE
  • 8
    3304-587 BOLT, FLANGE
    BOLT, FLANGE
  • 9
    3304-505 GRIP, REAR
    GRIP, REAR
  • 10
    3304-496 BUMPER
    BUMPER
  • 11
    3304-544 BOLT, FLANGE
    BOLT, FLANGE
  • 12
    3304-496 FASCIA, BUMPER - FRONT
    FASCIA, BUMPER - FRONT
  • 13
    3303-592 CLIP, MUD GUARD
    CLIP, MUD GUARD
  • 14
    3304-494 FOOTREST - RIGHT
    FOOTREST - RIGHT
  • 14
    3304-495 FOOTREST - LEFT
    FOOTREST - LEFT
  • 15
    3304-612 MUD GUARD, FLOOR - RIGHT
    MUD GUARD, FLOOR - RIGHT
  • 15
    3304-613 MUD GUARD, FLOOR - LEFT
    MUD GUARD, FLOOR - LEFT
  • 16
    3303-227 RUBBER, WIND SCREEN
    RUBBER, WIND SCREEN
  • 17
    3303-233 COLLAR, FLOOR
    COLLAR, FLOOR
  • 18
    3304-586 BOLT W/WASHER
    BOLT W/WASHER
  • 19
    3303-313 BOLT, FLANGE
    BOLT, FLANGE
