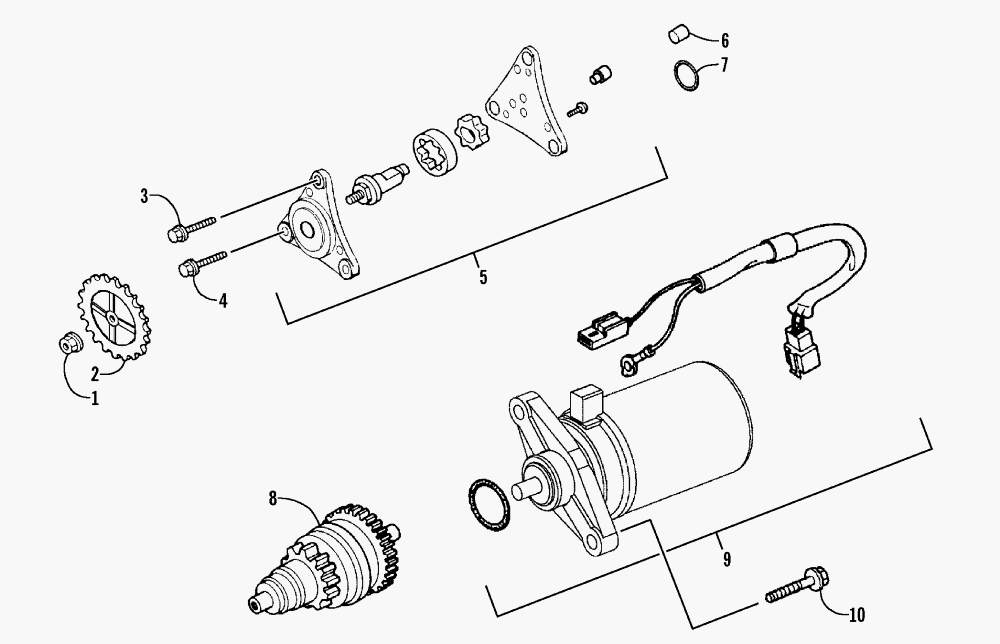

STARTER MOTOR AND OIL PUMP ASSEMBLIES для Arctic Cat 50 Y-6 YOUTH - DVX (RED) [A2006KSA2BUSR] - 2006 года выпуска
-
№АртикулНазвание
-
13303-331 NUT, FLANGE (6MM)NUT, FLANGE (6MM)
-
23303-509 GEAR, DRIVEN - OIL PUMPGEAR, DRIVEN - OIL PUMP
-
33303-383 BOLT, FLANGE (6*20)BOLT, FLANGE (6*20)
-
43303-384 BOLT, FLANGE (6*25)BOLT, FLANGE (6*25)
-
53303-508 PUMP, OIL - ASSEMBLYPUMP, OIL - ASSEMBLY
-
63303-594 PIN, DOWEL (8*14)PIN, DOWEL (8*14)
-
73304-461 O-RING (9*1.6)O-RING (9*1.6)
-
83303-558 PINION, STARTER - ASSEMBLYPINION, STARTER - ASSEMBLY
-
93303-556 MOTOR, STARTER - ASSEMBLYMOTOR, STARTER - ASSEMBLY
-
103303-619 BOLT, FLANGE (6*22)BOLT, FLANGE (6*22)
