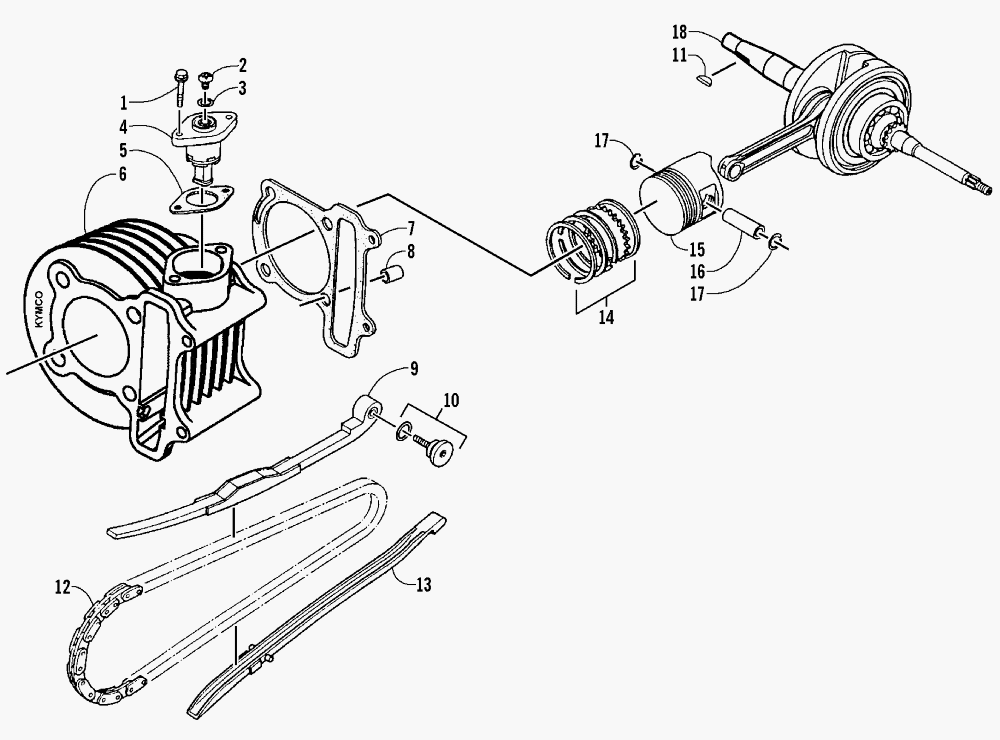

PISTON ASSEMBLY для Arctic Cat 50 Y-6 YOUTH - DVX (RED) [A2006KSA2BUSR] - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    3303-617 BOLT, FLANGE (6*18MM)
    BOLT, FLANGE (6*18MM)
  • 4
    3303-499 ADJUSTER, CAM CHAIN
    ADJUSTER, CAM CHAIN
  • 5
    3303-501 GASKET, CAM CHAIN ADJUSTER
    GASKET, CAM CHAIN ADJUSTER
  • 6
    3303-483 CYLINDER A
    CYLINDER A
  • 7
    3303-484 GASKET, CYLINDER A
    GASKET, CYLINDER A
  • 8
    3303-594 PIN, DOWEL (8*14MM)
    PIN, DOWEL (8*14MM)
  • 9
    3303-498 TENSIONER, CAM CHAIN
    TENSIONER, CAM CHAIN
  • 10
    3303-036 PIVOT, CAM CHAIN TENSIONER
    PIVOT, CAM CHAIN TENSIONER
  • 11
    3303-290 KEY, WOODRUFF
    KEY, WOODRUFF
  • 12
    3303-494 CAM CHAIN
    CAM CHAIN
  • 13
    3303-503 GUIDE, CAM CHAIN
    GUIDE, CAM CHAIN
  • 14
    3303-491 RING, PISTON - SET
    RING, PISTON - SET
  • 15
    3303-492 PISTON
    PISTON
  • 17
    3303-027 CLIP, PISTON PIN
    CLIP, PISTON PIN
  • 18
    3303-490 CRANKSHAFT COMP.
    CRANKSHAFT COMP.
