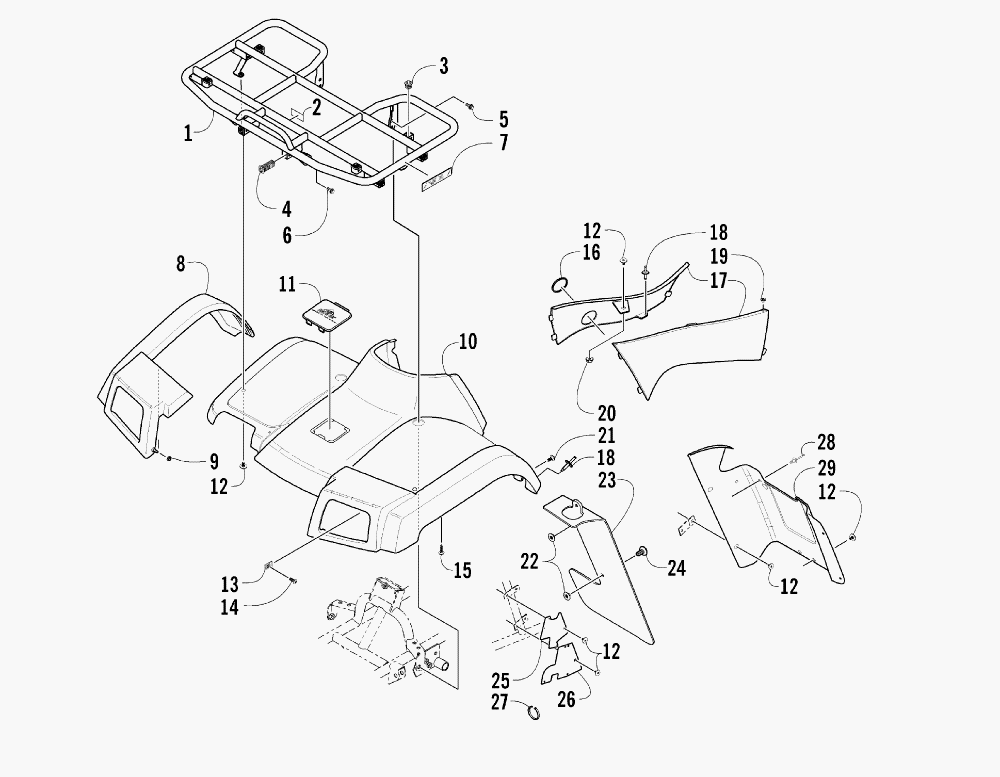

FRONT BODY PANEL ASSEMBLY для Arctic Cat 500 TRV AUTO (RED) [A2005TDM4BUSR] - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    3403-018 RACK - FRONT - ASSEMBLY (INC. 2-4)
    RACK - FRONT - ASSEMBLY (INC. 2-4)
  • 2
    0411-576 ...DECAL, WARNING - FRONT RACK LOAD
    ...DECAL, WARNING - FRONT RACK LOAD
  • 3
    0441-592 ...BUSHING, RACK
    ...BUSHING, RACK
  • 4
    0441-556 ...BUSHING, RACK
    ...BUSHING, RACK
  • 5
    0423-360 SCREW, CAP
    SCREW, CAP
  • 6
    3403-025 SCREW, CAP
    SCREW, CAP
  • 7
    0411-646 DECAL, REFLECTOR - AMBER
    DECAL, REFLECTOR - AMBER
  • 8
    1506-158 FLARE - FRONT - RIGHT
    FLARE - FRONT - RIGHT
  • 8
    1506-159 FLARE - FRONT - LEFT
    FLARE - FRONT - LEFT
  • 9
    0423-357 NUT, STAMPED
    NUT, STAMPED
  • 10
    1506-477 PANEL, FENDER - FRONT (INC. 11) (RED)
    PANEL, FENDER - FRONT (INC. 11) (RED)
  • 10
    1506-476 PANEL, FENDER - FRONT (INC. 11) (GREEN)
    PANEL, FENDER - FRONT (INC. 11) (GREEN)
  • 10
    1506-478 PANEL, FENDER - FRONT (INC. 11) (CAT GREEN)
    PANEL, FENDER - FRONT (INC. 11) (CAT GREEN)
  • 11
    1406-142 ...COVER, ACCESS (RED)
    ...COVER, ACCESS (RED)
  • 11
    1406-141 ...COVER, ACCESS (GREEN)
    ...COVER, ACCESS (GREEN)
  • 11
    1406-041 ...COVER, ACCESS (CAT GREEN)
    ...COVER, ACCESS (CAT GREEN)
  • 12
    0423-101 SCREW, BODY
    SCREW, BODY
  • 13
    0423-031 NUT, SPEED
    NUT, SPEED
  • 14
    8477-616 SCREW, MACHINE
    SCREW, MACHINE
  • 15
    0423-342 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 16
    0470-404 GROMMET, FUEL SHUT-OFF VALVE
    GROMMET, FUEL SHUT-OFF VALVE
  • 17
    0506-548 PANEL, SIDE - RIGHT (RED)
    PANEL, SIDE - RIGHT (RED)
  • 17
    0506-243 PANEL, SIDE - LEFT (RED)
    PANEL, SIDE - LEFT (RED)
  • 17
    0506-549 PANEL, SIDE - RIGHT (GREEN)
    PANEL, SIDE - RIGHT (GREEN)
  • 17
    0506-673 PANEL, SIDE - LEFT (GREEN)
    PANEL, SIDE - LEFT (GREEN)
  • 17
    0506-722 PANEL, SIDE - RIGHT (CAT GREEN)
    PANEL, SIDE - RIGHT (CAT GREEN)
  • 17
    0506-723 PANEL, SIDE - LEFT (CAT GREEN)
    PANEL, SIDE - LEFT (CAT GREEN)
  • 18
    0623-362 RIVET, REINSTALLABLE
    RIVET, REINSTALLABLE
  • 19
    0623-309 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 20
    8424-602 NUT, FLANGE
    NUT, FLANGE
  • 21
    0423-356 SCREW, SHOULDER
    SCREW, SHOULDER
  • 22
    0423-077 T-NUT W/TEETH
    T-NUT W/TEETH
  • 23
    1506-194 EXTENSION, FLARE - FRONT
    EXTENSION, FLARE - FRONT
  • 24
    0423-361 SCREW, MACHINE
    SCREW, MACHINE
  • 25
    1406-063 PANEL, FENDER - INNER RIGHT
    PANEL, FENDER - INNER RIGHT
  • 25
    1406-064 PANEL, FENDER - INNER LEFT
    PANEL, FENDER - INNER LEFT
  • 26
    1406-006 PANEL, FENDER - INNER
    PANEL, FENDER - INNER
  • 27
    0123-788 CABLE TIE - 7.5 IN.
    CABLE TIE - 7.5 IN.
  • 28
    0423-046 RIVET, PLASTIC
    RIVET, PLASTIC
  • 29
    1506-199 PANEL, KICK - RIGHT
    PANEL, KICK - RIGHT
  • 29
    1506-200 PANEL, KICK - LEFT
    PANEL, KICK - LEFT
