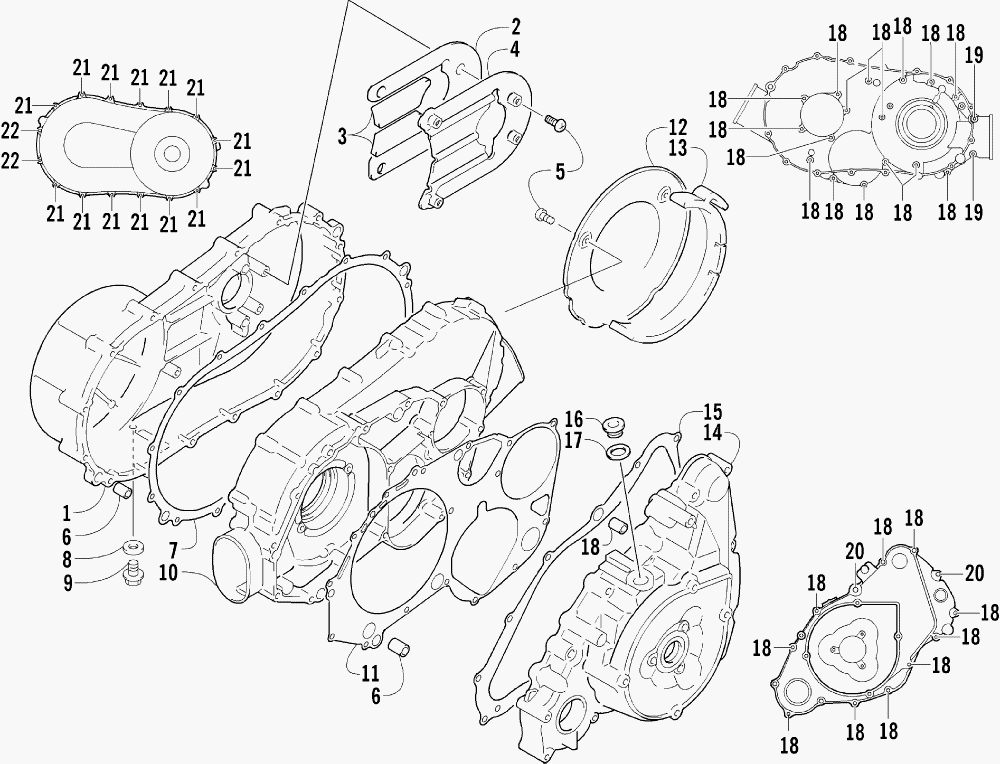

CLUTCH/V-BELT/MAGNETO COVER ASSEMBLY для Arctic Cat 500 TRV AUTO (RED) [A2005TDM4BUSR] - 2005 года выпуска`
-
№АртикулНазвание
-
13402-710 COVER, V-BELTCOVER, V-BELT
-
23402-711 DAMPER, V-BELT COVERDAMPER, V-BELT COVER
-
33402-712 DAMPER, V-BELT COVERDAMPER, V-BELT COVER
-
43402-713 PLATE, V-BELT COVERPLATE, V-BELT COVER
-
53423-435 SCREWSCREW
-
63423-088 PIN, DOWELPIN, DOWEL
-
73402-443 GASKET, V-BELT COVERGASKET, V-BELT COVER
-
83402-444 GASKET, DRAIN PLUGGASKET, DRAIN PLUG
-
93004-705 PLUG, DRAINPLUG, DRAIN
-
103402-709 COVER, CLUTCHCOVER, CLUTCH
-
113402-441 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
123402-445 PLATE, AIR INTAKEPLATE, AIR INTAKE
-
133402-699 CUSHION, AIR INTAKE PLATECUSHION, AIR INTAKE PLATE
-
143402-714 COVER, MAGNETOCOVER, MAGNETO
-
153402-715 GASKET, MAGNETO COVERGASKET, MAGNETO COVER
-
163402-041 PLUG, OIL FILLERPLUG, OIL FILLER
-
173402-013 GASKET, OIL FILLER PLUGGASKET, OIL FILLER PLUG
-
183423-098 BOLTBOLT
-
193423-092 BOLTBOLT
-
203004-756 BOLTBOLT
-
213423-091 BOLTBOLT
-
223423-119 BOLTBOLT
