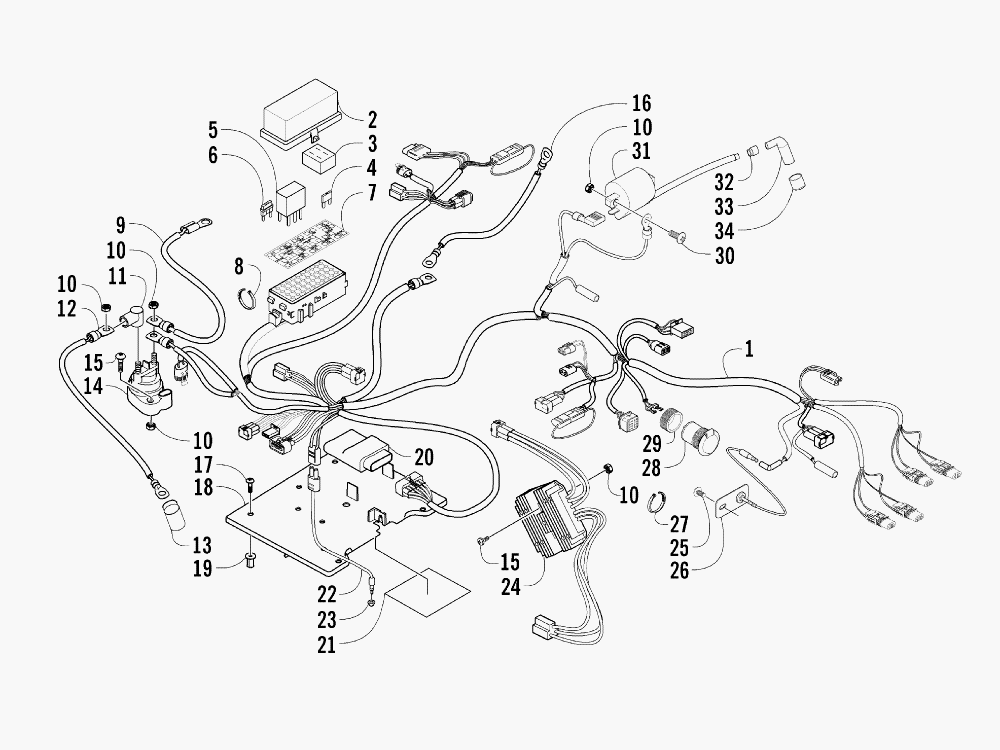

WIRING HARNESS ASSEMBLY для Arctic Cat 500 TBX AUTO (RED) [A2005BBM4BUSR] - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    0486-168 HARNESS, MAIN (INC. 2-7 AND TWO NO. 8)
    HARNESS, MAIN (INC. 2-7 AND TWO NO. 8)
  • 2
    0530-008 ...COVER, FUSE BLOCK
    ...COVER, FUSE BLOCK
  • 3
    0430-037 ...HOLDER, FUSE
    ...HOLDER, FUSE
  • 4
    0430-034 ...DIODE
    ...DIODE
  • 5
    0430-033 ...RELAY
    ...RELAY
  • 6
    0430-032 ...FUSE - 10 AMP
    ...FUSE - 10 AMP
  • 6
    0430-031 ...FUSE - 15 AMP
    ...FUSE - 15 AMP
  • 6
    0430-030 ...FUSE - 30 AMP
    ...FUSE - 30 AMP
  • 7
    0411-828 ...DECAL, FUSE BLOCK
    ...DECAL, FUSE BLOCK
  • 8
    0123-788 ...CABLE TIE - 7.5 IN.
    ...CABLE TIE - 7.5 IN.
  • 9
    0445-044 CABLE, SOLENOID/STARTER
    CABLE, SOLENOID/STARTER
  • 10
    0623-038 NUT W/WASHER
    NUT W/WASHER
  • 11
    0645-327 BOOT, TERMINAL
    BOOT, TERMINAL
  • 12
    0445-046 CABLE, BATTERY/SOLENOID (INC. ONE NO. 13)
    CABLE, BATTERY/SOLENOID (INC. ONE NO. 13)
  • 13
    0645-019 ...BOOT, TERMINAL
    ...BOOT, TERMINAL
  • 14
    0445-036 RELAY ASSEMBLY - STARTER
    RELAY ASSEMBLY - STARTER
  • 15
    8476-625 SCREW, MACHINE
    SCREW, MACHINE
  • 16
    0445-045 CABLE, BATTERY/GROUND
    CABLE, BATTERY/GROUND
  • 17
    0623-121 SCREW, MACHINE
    SCREW, MACHINE
  • 18
    1406-600 TRAY, ELECTRICAL
    TRAY, ELECTRICAL
  • 19
    0123-010 NUT, EXPANSION
    NUT, EXPANSION
  • 20
    3530-039 CDI UNIT
    CDI UNIT
  • 21
    0412-291 SHIELD, HEAT
    SHIELD, HEAT
  • 22
    0409-009 SWITCH, BRAKE - ASSEMBLY
    SWITCH, BRAKE - ASSEMBLY
  • 23
    0402-991 RETAINER, SWITCH
    RETAINER, SWITCH
  • 24
    3530-028 REGULATOR, VOLTAGE
    REGULATOR, VOLTAGE
  • 25
    8476-616 SCREW, MACHINE
    SCREW, MACHINE
  • 26
    0509-011 DIODE ASSEMBLY
    DIODE ASSEMBLY
  • 27
    0123-903 CABLE TIE - 11.5 IN.
    CABLE TIE - 11.5 IN.
  • 28
    0445-022 RECEPTACLE, 12V (INC. 29)
    RECEPTACLE, 12V (INC. 29)
  • 29
    0445-034 ...NUT, RETAINER
    ...NUT, RETAINER
  • 30
    8476-620 SCREW, MACHINE
    SCREW, MACHINE
  • 31
    3530-027 COIL, IGNITION - ASSEMBLY
    COIL, IGNITION - ASSEMBLY
  • 32
    3430-009 SEAL, HIGH TENSION WIRE
    SEAL, HIGH TENSION WIRE
  • 33
    3430-007 CAP, SPARK PLUG
    CAP, SPARK PLUG
  • 34
    3430-008 SEAL, SPARK PLUG
    SEAL, SPARK PLUG
