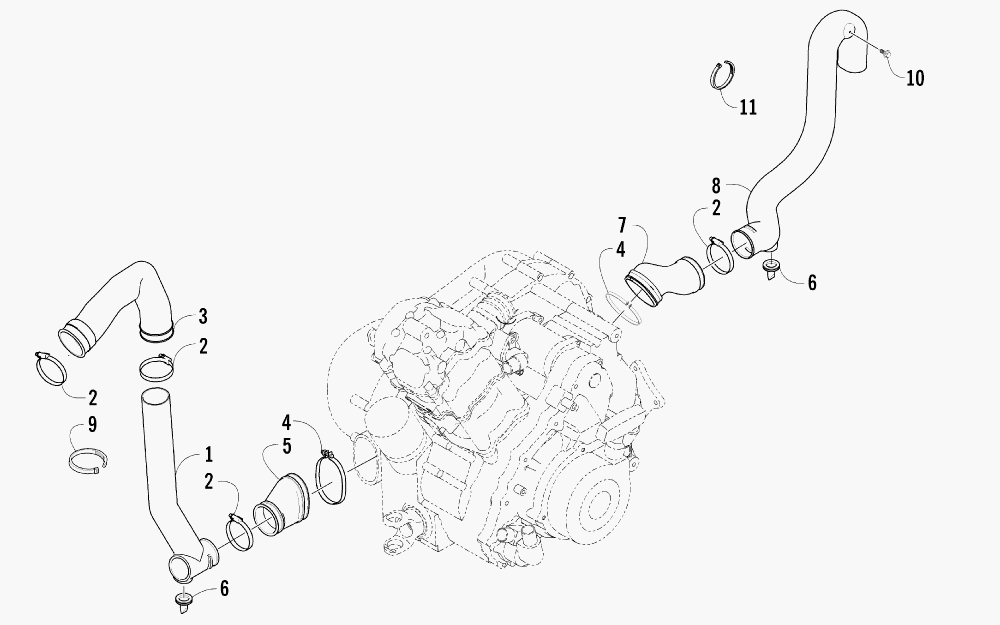

CASE/BELT COOLING ASSEMBLY для Arctic Cat 500 TBX AUTO (RED) [A2005BBM4BUSR] - 2005 года выпуска
-
№АртикулНазвание
-
10513-010 DUCT, BELT COOLING - FRONTDUCT, BELT COOLING - FRONT
-
20423-380 CLAMP, DUCTCLAMP, DUCT
-
30413-092 BOOT, AIR-INBOOT, AIR-IN
-
43402-449 CLAMP, BOOTCLAMP, BOOT
-
50413-049 BOOT, DUCT - FRONTBOOT, DUCT - FRONT
-
60470-442 VALVE, DRAINVALVE, DRAIN
-
70413-055 BOOT, DUCT - REARBOOT, DUCT - REAR
-
80413-106 DUCT, BELT COOLING - REARDUCT, BELT COOLING - REAR
-
90123-903 CABLE TIE - 11.5 IN.CABLE TIE - 11.5 IN.
-
100623-301 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
110123-788 CABLE TIECABLE TIE
