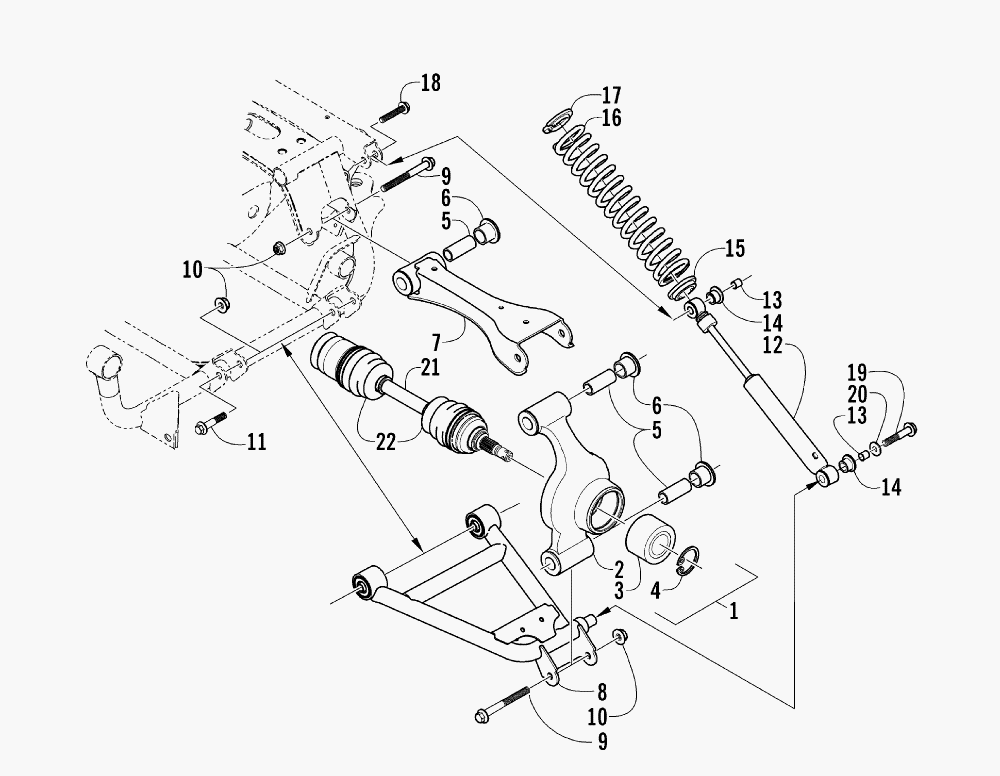

REAR SUSPENSION ASSEMBLY для Arctic Cat 250 4X4 (RED) [A2005ATE4AUSR] - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    0504-325 KNUCKLE, RIGHT REAR - ASSEMBLY (INC. 2-6)
    KNUCKLE, RIGHT REAR - ASSEMBLY (INC. 2-6)
  • 1
    0504-313 KNUCKLE, LEFT REAR - ASSEMBLY (INC. 2-6)
    KNUCKLE, LEFT REAR - ASSEMBLY (INC. 2-6)
  • 2
    0504-309 ...KNUCKLE - RIGHT
    ...KNUCKLE - RIGHT
  • 2
    0504-310 ...KNUCKLE - LEFT
    ...KNUCKLE - LEFT
  • 3
    1402-027 ...BEARING, WHEEL
    ...BEARING, WHEEL
  • 4
    0423-423 ...RING, RETAINING
    ...RING, RETAINING
  • 5
    0403-038 ...COLLAR, SUSPENSION BUSHING
    ...COLLAR, SUSPENSION BUSHING
  • 6
    0403-032 ...BUSHING, SUSPENSION
    ...BUSHING, SUSPENSION
  • 7
    0504-044 ARM, REAR - UPPER
    ARM, REAR - UPPER
  • 8
    0504-030 A-ARM, REAR - LOWER RIGHT
    A-ARM, REAR - LOWER RIGHT
  • 8
    0504-031 A-ARM, REAR - LOWER LEFT
    A-ARM, REAR - LOWER LEFT
  • 9
    8409-000 SCREW, CAP
    SCREW, CAP
  • 10
    8428-002 NUT, LOCK
    NUT, LOCK
  • 11
    8409-060 SCREW, CAP
    SCREW, CAP
  • 12
    0404-014 SHOCK ABSORBER - REAR (INC. 13-14)
    SHOCK ABSORBER - REAR (INC. 13-14)
  • 13
    0403-028 ...SLEEVE, SHOCK ABSORBER
    ...SLEEVE, SHOCK ABSORBER
  • 14
    0604-310 ...BUSHING, SHOCK ABSORBER
    ...BUSHING, SHOCK ABSORBER
  • 15
    0403-104 RETAINER, SPRING - LOWER
    RETAINER, SPRING - LOWER
  • 16
    0403-002 SPRING, SUSPENSION - BLACK
    SPRING, SUSPENSION - BLACK
  • 17
    1603-889 RETAINER, SPRING - UPPER
    RETAINER, SPRING - UPPER
  • 18
    8409-040 SCREW, CAP
    SCREW, CAP
  • 19
    8408-820 SCREW, CAP
    SCREW, CAP
  • 20
    0423-087 WASHER
    WASHER
  • 21
    0502-543 AXLE, DRIVE (INC. 22)
    AXLE, DRIVE (INC. 22)
  • 22
    0436-276 ...REPAIR KIT, BOOT - REAR AXLE
    ...REPAIR KIT, BOOT - REAR AXLE
