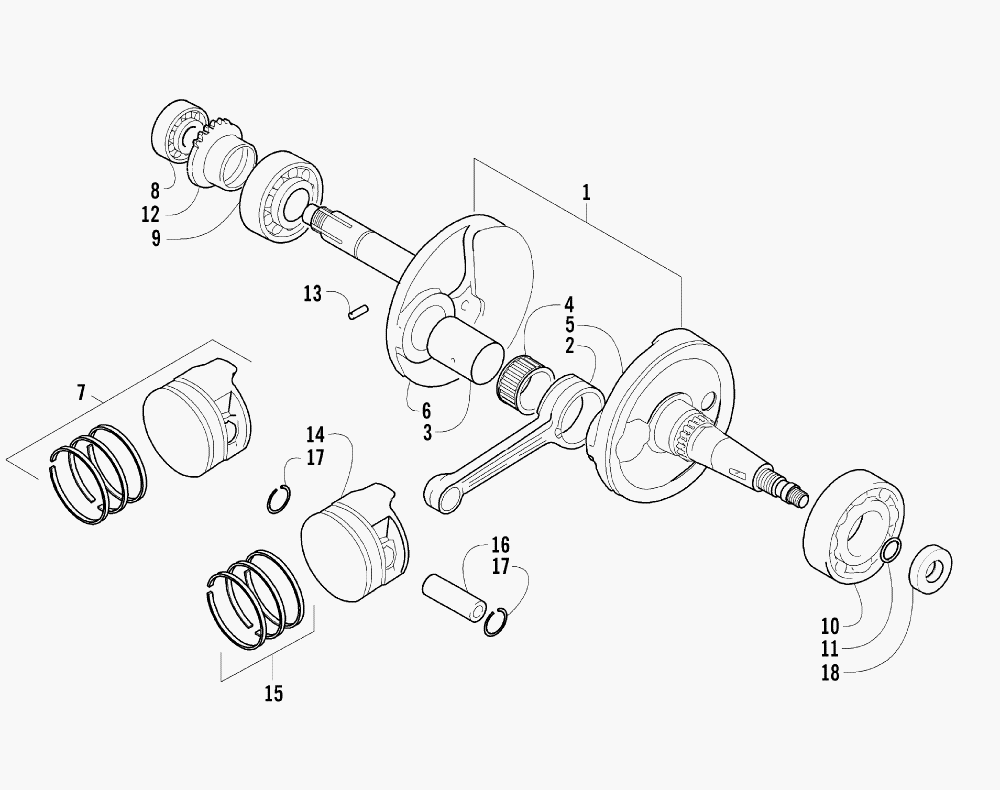

CRANKSHAFT ASSEMBLY для Arctic Cat 250 4X4 (RED) [A2005ATE4AUSR] - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    3402-419 CRANKSHAFT ASSEMBLY (INC. 2-6)
    CRANKSHAFT ASSEMBLY (INC. 2-6)
  • 2
    3402-418 ...ROD, CONNECTING
    ...ROD, CONNECTING
  • 3
    3402-529 ...PIN, CRANK
    ...PIN, CRANK
  • 4
    3402-406 ...BEARING
    ...BEARING
  • 5
    3402-421 ...CRANKSHAFT - LEFT
    ...CRANKSHAFT - LEFT
  • 6
    3402-420 ...CRANKSHAFT - RIGHT
    ...CRANKSHAFT - RIGHT
  • 7
    3402-423 PISTON SET (OVERSIZED 0.50 MM)
    PISTON SET (OVERSIZED 0.50 MM)
  • 7
    3402-424 PISTON SET (OVERSIZED 1.00 MM)
    PISTON SET (OVERSIZED 1.00 MM)
  • 8
    3402-216 BEARING - RIGHT
    BEARING - RIGHT
  • 9
    3402-221 BEARING - MIDDLE
    BEARING - MIDDLE
  • 10
    3402-180 BEARING - LEFT
    BEARING - LEFT
  • 11
    3423-053 O-RING
    O-RING
  • 12
    3402-428 GEAR, OIL PUMP DRIVE
    GEAR, OIL PUMP DRIVE
  • 13
    3423-114 PIN
    PIN
  • 14
    3402-415 PISTON
    PISTON
  • 15
    3402-416 RING, PISTON - SET
    RING, PISTON - SET
  • 15
    3436-013 RING, PISTON - SET (OVERSIZED 0.50 MM)
    RING, PISTON - SET (OVERSIZED 0.50 MM)
  • 15
    3436-014 RING, PISTON - SET (OVERSIZED 1.00 MM)
    RING, PISTON - SET (OVERSIZED 1.00 MM)
  • 16
    3402-417 PIN, PISTON
    PIN, PISTON
  • 17
    3423-366 CIRCLIP
    CIRCLIP
  • 18
    3402-227 SEAL, OIL
    SEAL, OIL
