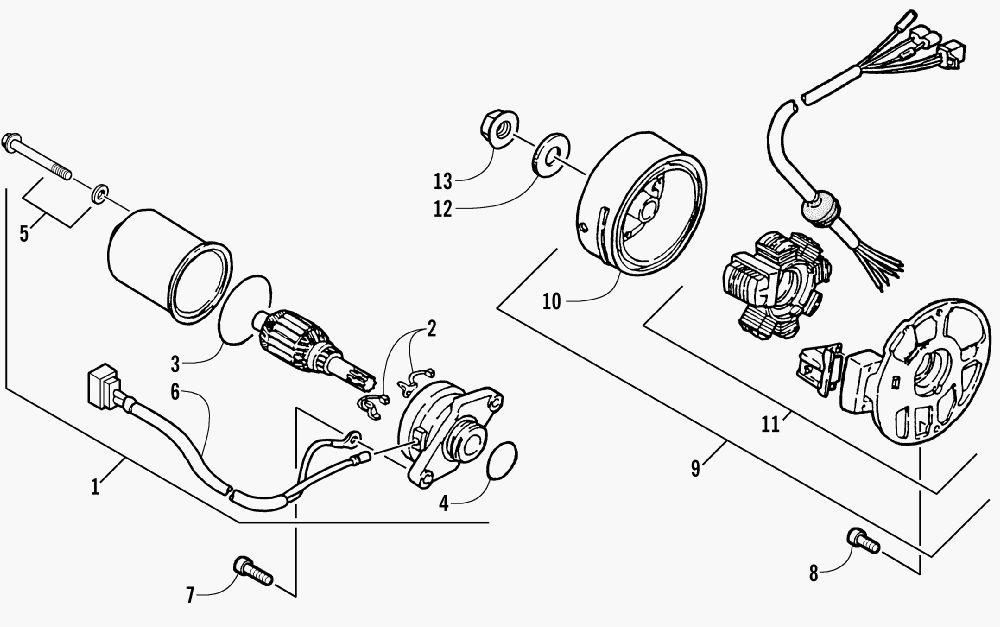

MAGNETO AND STARTER MOTOR ASSEMBLY для Arctic Cat 90 2X4 AUTO US (GREEN) [A2004ATB2BUSG] - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    3301-142 STARTER MOTOR ASSEMBLY (INC. 2-6)
    STARTER MOTOR ASSEMBLY (INC. 2-6)
  • 2
    3301-143 ...BRUSH SET
    ...BRUSH SET
  • 3
    3301-303 ...O-RING
    ...O-RING
  • 4
    3301-301 ...O-RING
    ...O-RING
  • 5
    3301-276 ...BOLT W/WASHER
    ...BOLT W/WASHER
  • 6
    3301-144 ...HARNESS, STARTER MOTOR
    ...HARNESS, STARTER MOTOR
  • 7
    3301-289 SCREW, CAP
    SCREW, CAP
  • 8
    3301-288 SCREW, CAP
    SCREW, CAP
  • 9
    3301-139 MAGNETO ASSEMBLY (INC. 10-11)
    MAGNETO ASSEMBLY (INC. 10-11)
  • 10
    3301-140 ...ROTOR/FLYWHEEL
    ...ROTOR/FLYWHEEL
  • 11
    3301-141 ...STATOR ASSEMBLY
    ...STATOR ASSEMBLY
  • 12
    3301-345 WASHER
    WASHER
  • 13
    3301-331 NUT, FLANGE
    NUT, FLANGE
