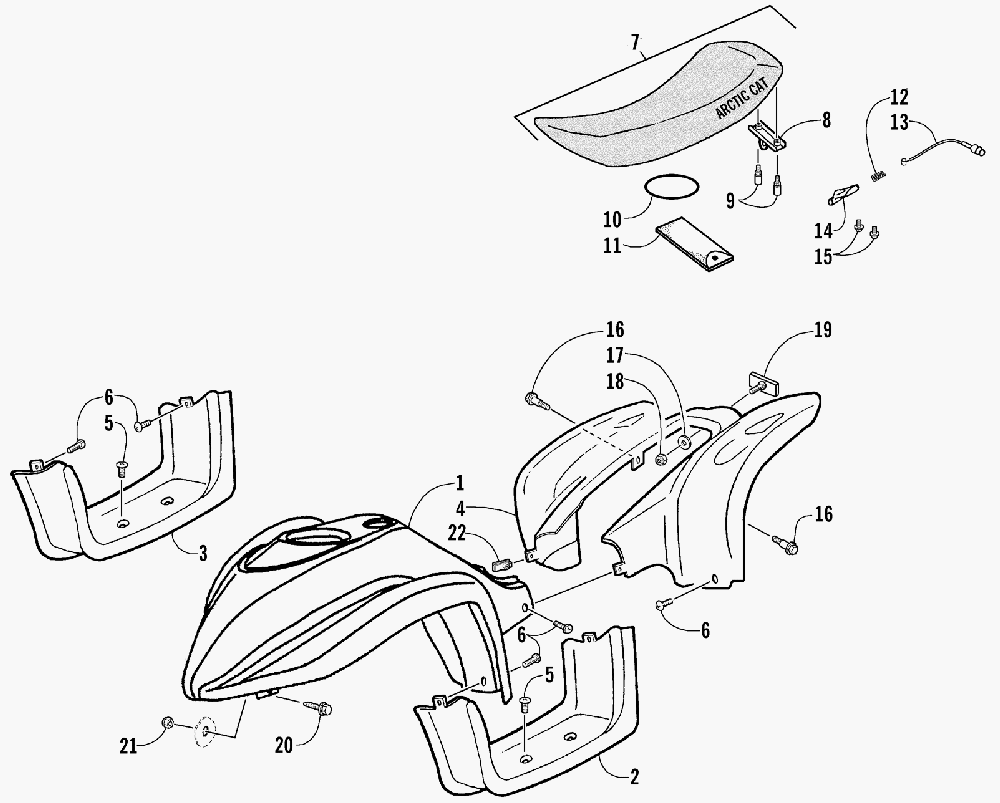

BODY AND SEAT ASSEMBLY для Arctic Cat 90 2X4 AUTO US (GREEN) [A2004ATB2BUSG] - 2004 года выпуска`
-
№АртикулНазвание
-
13301-250 COVER, FRONT (RED)COVER, FRONT (RED)
-
13301-248 COVER, FRONT (GREEN)COVER, FRONT (GREEN)
-
13301-249 COVER, FRONT (CAT GREEN)COVER, FRONT (CAT GREEN)
-
23301-253 PANEL, FLOOR - LEFTPANEL, FLOOR - LEFT
-
33301-252 PANEL, FLOOR - RIGHTPANEL, FLOOR - RIGHT
-
43301-264 COVER, REAR (RED)COVER, REAR (RED)
-
43301-493 COVER, REAR (GREEN)COVER, REAR (GREEN)
-
43301-494 COVER, REAR (CAT GREEN)COVER, REAR (CAT GREEN)
-
53301-319 SCREW, MACHINESCREW, MACHINE
-
63301-320 SCREW, MACHINESCREW, MACHINE
-
73301-257 SEAT ASSEMBLY (INC. 8-9)SEAT ASSEMBLY (INC. 8-9)
-
83301-258 ...BRACKET, SEAT...BRACKET, SEAT
-
93301-259 ...BOLT, SEAT...BOLT, SEAT
-
103301-304 STRIP, RUBBERSTRIP, RUBBER
-
113301-210 BAG, TOOLBAG, TOOL
-
123301-262 SPRING, RESETSPRING, RESET
-
133301-261 CABLE, SEAT RELEASECABLE, SEAT RELEASE
-
143301-263 SEAT LOCK ASSEMBLYSEAT LOCK ASSEMBLY
-
153301-386 SCREW, CAPSCREW, CAP
-
163301-275 BOLT, CARRIAGEBOLT, CARRIAGE
-
173301-338 WASHERWASHER
-
183301-281 NUT, NYLONNUT, NYLON
-
193301-149 REFLECTORREFLECTOR
-
203301-466 SCREW, CAPSCREW, CAP
-
213301-327 NUT, FLANGENUT, FLANGE
-
223301-280 U-NUTU-NUT
