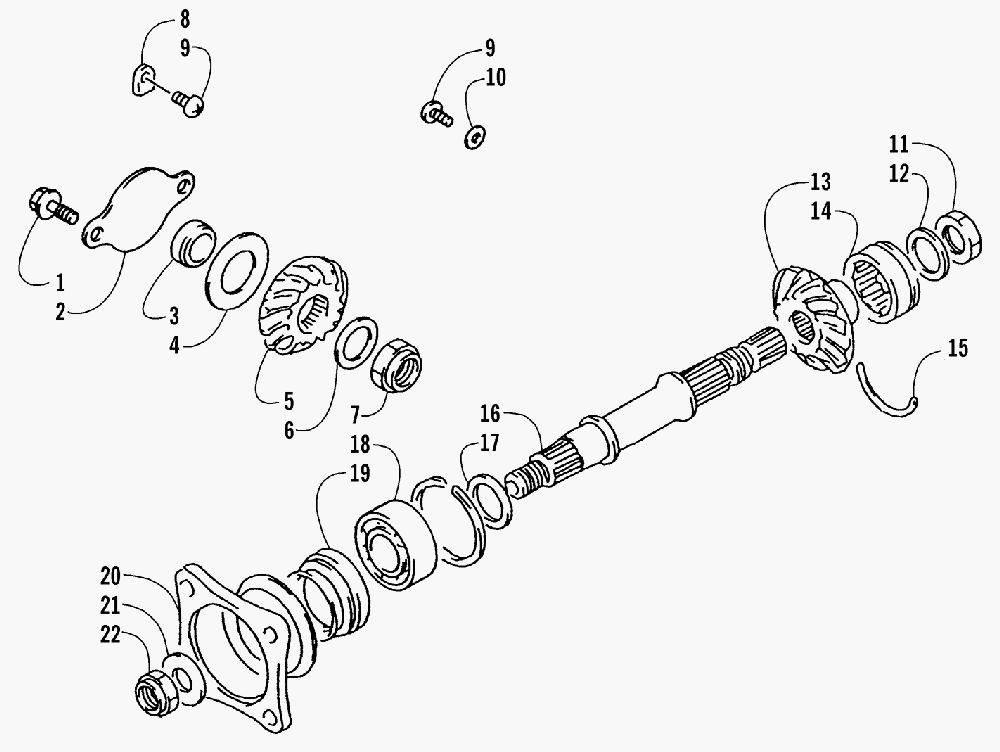

SECONDARY DRIVE ASSEMBLY для Arctic Cat 400 2X4 FIS MAN (RED) [A2002ISI2AUSR] - 2002 года выпуска
-
№АртикулНазвание
-
13423-169 BOLTBOLT
-
23446-153 RETAINER, TRANSFER COVERRETAINER, TRANSFER COVER
-
33402-255 PLUG, TRANSFER COVER HOLEPLUG, TRANSFER COVER HOLE
-
43446-035 SHIM SETSHIM SET
-
53446-221 GEAR, SECONDARY DRIVE BEVELGEAR, SECONDARY DRIVE BEVEL
-
63423-032 WASHERWASHER
-
73423-023 NUTNUT
-
83446-031 RETAINER, SECONDARY DRIVESHAFT BEARINGRETAINER, SECONDARY DRIVESHAFT BEARING
-
93004-552 SCREWSCREW
-
103423-135 RETAINERRETAINER
-
113423-136 NUT, SECONDARY DRIVEN GEARNUT, SECONDARY DRIVEN GEAR
-
123423-137 WASHERWASHER
-
133446-222 GEAR, SECONDARY DRIVEN BEVELGEAR, SECONDARY DRIVEN BEVEL
-
143402-062 BEARINGBEARING
-
153423-072 C-RINGC-RING
-
163446-037 SHAFT - REARSHAFT - REAR
-
173402-017 SHIM, 25 X 34 X 0.60 MMSHIM, 25 X 34 X 0.60 MM
-
173402-018 SHIM, 25 X 34 X 0.65 MMSHIM, 25 X 34 X 0.65 MM
-
173402-019 SHIM, 25 X 34 X 0.70 MMSHIM, 25 X 34 X 0.70 MM
-
173402-020 SHIM, 25 X 34 X 0.75 MMSHIM, 25 X 34 X 0.75 MM
-
173402-021 SHIM, 25 X 34 X 0.80 MMSHIM, 25 X 34 X 0.80 MM
-
173402-022 SHIM, 25 X 34 X 0.85 MMSHIM, 25 X 34 X 0.85 MM
-
173402-023 SHIM, 25 X 34 X 0.90 MMSHIM, 25 X 34 X 0.90 MM
-
173402-024 SHIM, 25 X 34 X 0.95 MMSHIM, 25 X 34 X 0.95 MM
-
173402-025 SHIM, 25 X 34 X 1.00 MMSHIM, 25 X 34 X 1.00 MM
-
173402-028 SHIM, 25 X 34 X 1.05 MMSHIM, 25 X 34 X 1.05 MM
-
173402-029 SHIM, 25 X 34 X 1.10 MMSHIM, 25 X 34 X 1.10 MM
-
173402-030 SHIM, 25 X 34 X 1.15 MMSHIM, 25 X 34 X 1.15 MM
-
173402-031 SHIM, 25 X 34 X 1.20 MMSHIM, 25 X 34 X 1.20 MM
-
183402-067 BEARING W/SNAP RINGBEARING W/SNAP RING
-
193402-072 SEAL, OILSEAL, OIL
-
203435-003 FLANGE, OUTPUT JOINTFLANGE, OUTPUT JOINT
-
213423-028 WASHER, REAR OUTPUT FLANGEWASHER, REAR OUTPUT FLANGE
-
223423-025 NUTNUT
