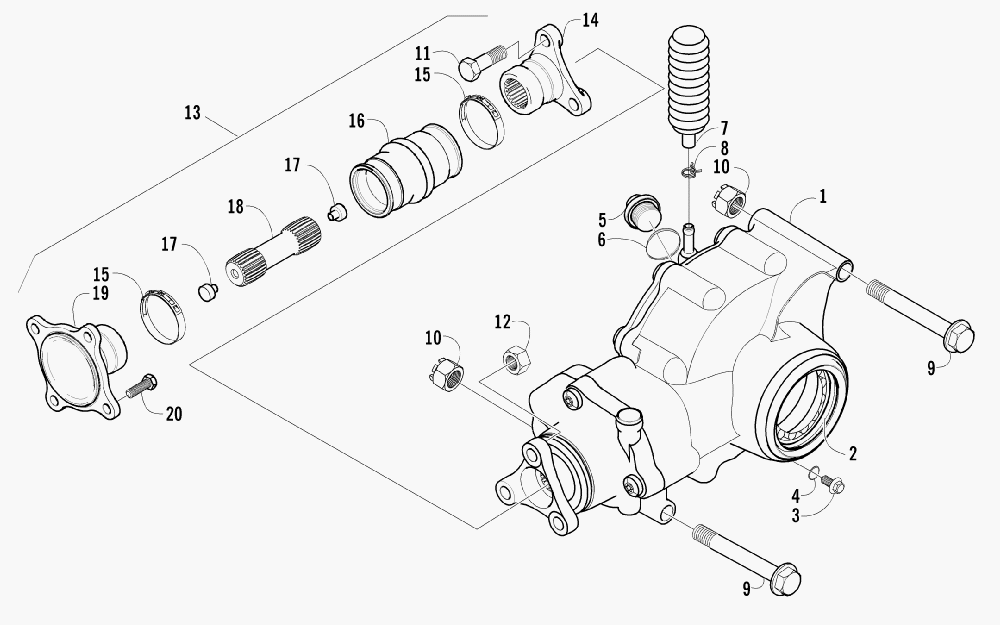

REAR DRIVE GEARCASE ASSEMBLY для Arctic Cat 400 2X4 FIS MAN (RED) [A2002ISI2AUSR] - 2002 года выпуска
-
№АртикулНазвание
-
10502-294 GEARCASE, REAR - ASSEMBLY (INC. 2-6)GEARCASE, REAR - ASSEMBLY (INC. 2-6)
-
20402-394 ...SEAL...SEAL
-
30402-450 ...PLUG, MAGNETIC (INC. 4)...PLUG, MAGNETIC (INC. 4)
-
40423-153 ......O-RING......O-RING
-
50402-333 ...PLUG, FILL (INC. 6)...PLUG, FILL (INC. 6)
-
60423-154 ......O-RING......O-RING
-
70402-147 BLADDER, GEARCASEBLADDER, GEARCASE
-
80423-315 CLAMP, HOSECLAMP, HOSE
-
93423-010 BOLTBOLT
-
108428-002 NUT, LOCKNUT, LOCK
-
118409-030 SCREW, CAPSCREW, CAP
-
120423-157 NUT, LOCKNUT, LOCK
-
130502-326 COUPLER, DRIVE (INC. 14-19)COUPLER, DRIVE (INC. 14-19)
-
150423-393 ...CLAMP, BOOT...CLAMP, BOOT
-
160402-954 ...BOOT, DRIVE...BOOT, DRIVE
-
170673-618 ...BUMPER, PROPELLER SHAFT...BUMPER, PROPELLER SHAFT
-
208408-820 SCREW, CAPSCREW, CAP
