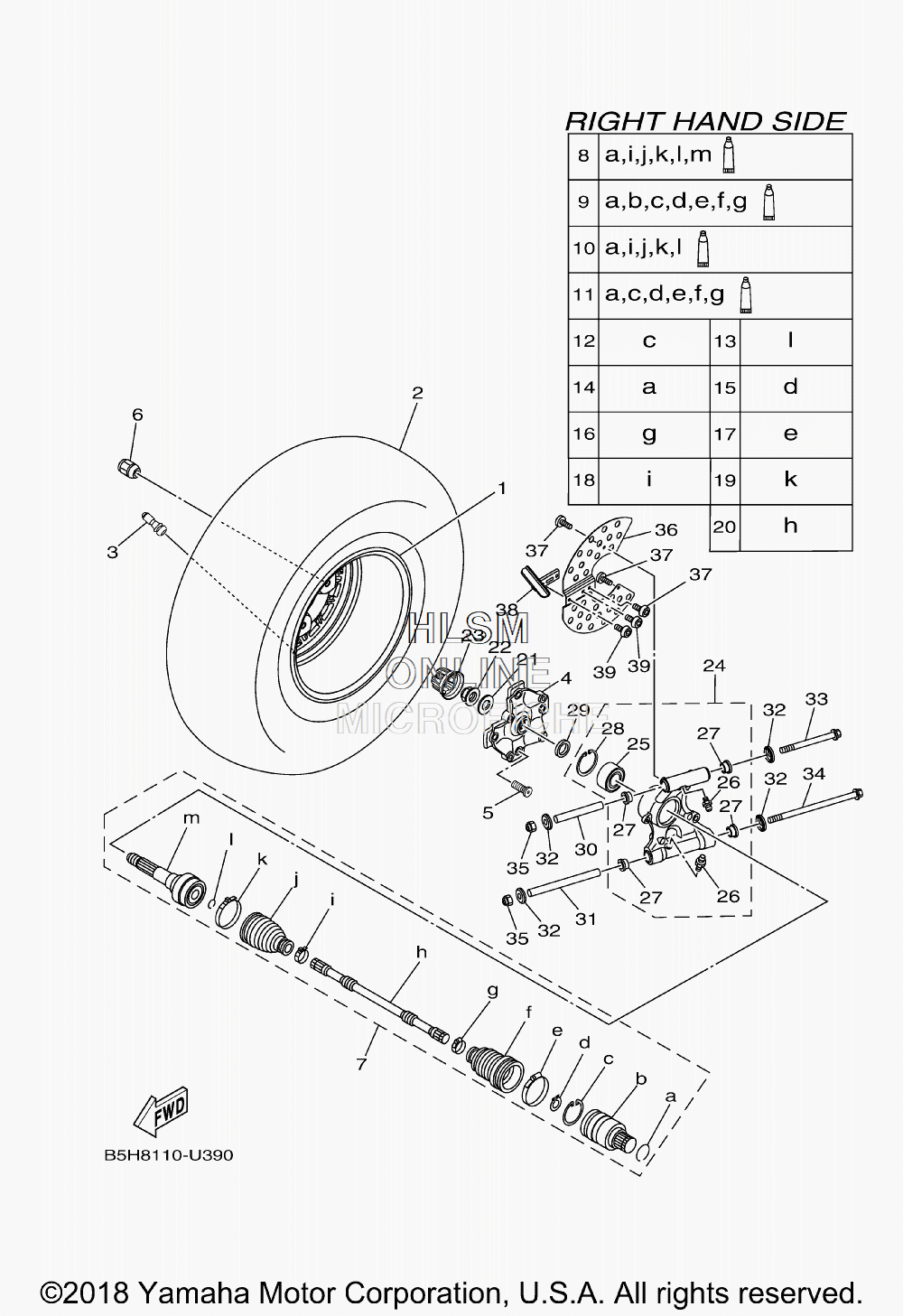

WHEEL - REAR RIGHT SIDE W/ AXLE ASSY для Yamaha YXZ1000R EPS - 2019 года выпуска`
-
№АртикулНазвание
-
1B5H-F533P-01-00 WHEEL, CAST 2WHEEL, CAST 2
-
294111-14808-00 TIRE (29X11.00R14 M918 8PR TL)TIRE (29X11.00R14 M918 8PR TL)
-
393900-00813-00 VALVE, RIM (TR413) (MAXXIS)VALVE, RIM (TR413) (MAXXIS)
-
4B5H-F5111-00-00 HUB, FRONTHUB, FRONT
-
590114-12005-00 BOLT, SERRATIONBOLT, SERRATION
-
690176-12800-00 NUT, CROWNNUT, CROWN
-
72HC-2531H-12-00 REAR DRIVE SHAFT ASSYREAR DRIVE SHAFT ASSY
-
82HC-2530T-12-00 ...BALL JOINT SET...BALL JOINT SET
-
9BG4-2530V-00-00 ...DOUBLE OFF SET JOINT...DOUBLE OFF SET JOINT
-
102HC-2530X-12-00 ...BOOT SET (BALL JOINT)...BOOT SET (BALL JOINT)
-
112HC-2530Y-00-00 ...BOOT SET (DOUBLE OFFSET JOINT)...BOOT SET (DOUBLE OFFSET JOINT)
-
122HC-2536E-00-00 ...CLIP, SPRING...CLIP, SPRING
-
1316B-25185-00-00 ...RING 1...RING 1
-
1416B-2536E-00-00 ...CLIP, SPRING...CLIP, SPRING
-
152HC-2512J-00-00 ...SNAP RING...SNAP RING
-
162HC-25719-00-00 ...BAND...BAND
-
172HC-26293-00-00 ...BAND...BAND
-
182HC-26397-12-00 ...BAND...BAND
-
192HC-2512G-10-00 ...BOOT BAND (SMALL)...BOOT BAND (SMALL)
-
202HC-259A2-00-00 ...SHAFT...SHAFT
-
2190201-25023-00 WASHER, PLATEWASHER, PLATE
-
2290179-24006-00 NUTNUT
-
232HC-F512A-00-00 CAP, WHEELCAP, WHEEL
-
24B5H-F532F-00-00 REAR KNUCKLE ASSY 2REAR KNUCKLE ASSY 2
-
2593305-00603-00 ...BEARING...BEARING
-
2693700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
2790381-17067-00 ...BUSH, SOLID...BUSH, SOLID
-
2899009-72500-00 ...CIRCLIP...CIRCLIP
-
2990201-30666-00 WASHER, PLATEWASHER, PLATE
-
3090387-12060-00 COLLARCOLLAR
-
3190387-12061-00 COLLARCOLLAR
-
321XD-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
3390105-12066-00 BOLT, FLANGEBOLT, FLANGE
-
3490105-12097-00 BOLT, FLANGEBOLT, FLANGE
-
3590185-12007-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
362HC-F535C-00-00 RING, WHEEL REAR 2RING, WHEEL REAR 2
-
3790111-06096-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
382HC-F2342-00-00 PLATE, GUIDE 2PLATE, GUIDE 2
-
3992012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
