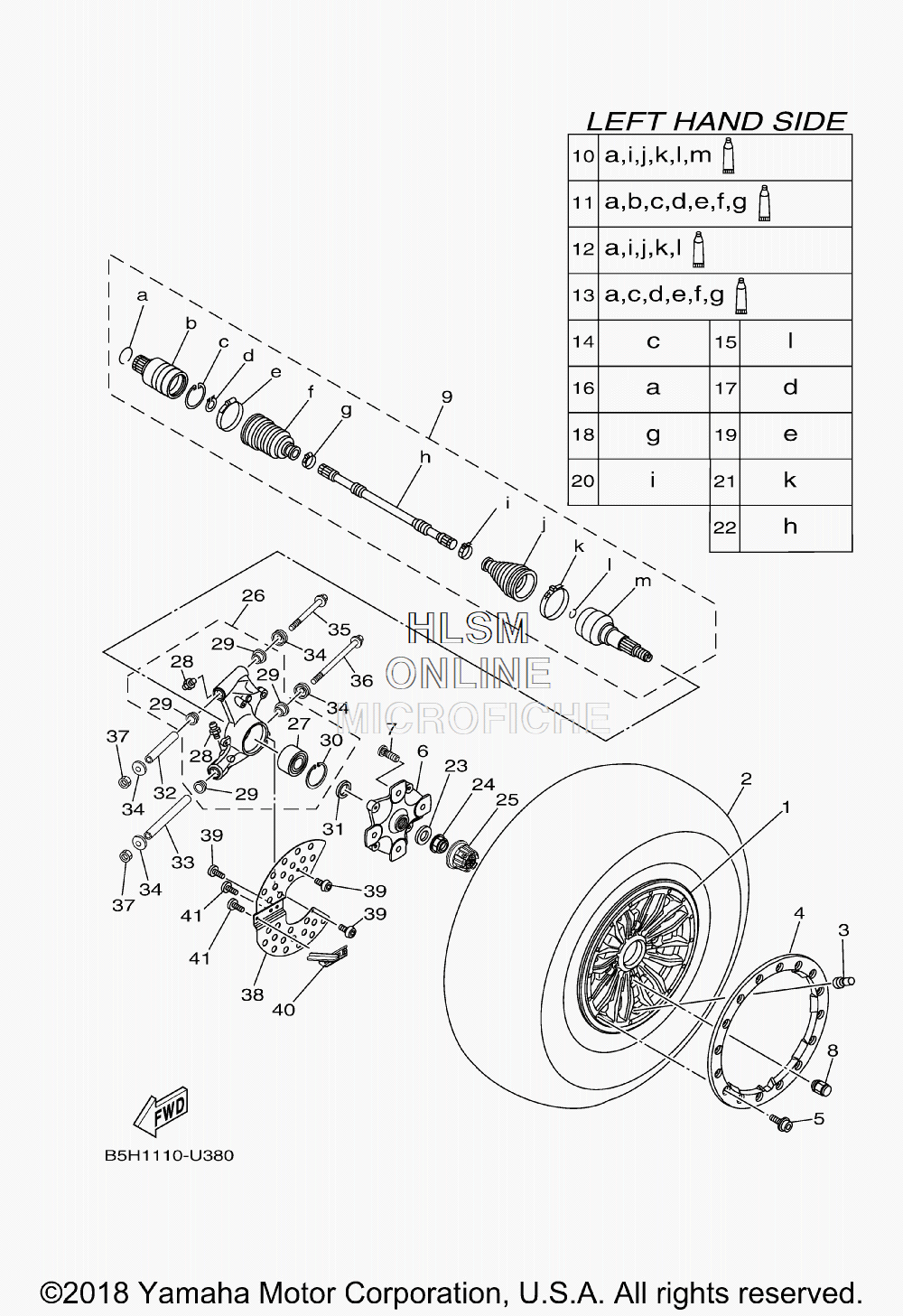

WHEEL - REAR LEFT W/ AXLE ASSY для Yamaha YXZ1000R EPS SS SPECIAL EDITION (PURPLISH BLUE) - 2019 года выпуска`
-
№АртикулНазвание
-
1B5H-F5307-10-00 CAST WHEEL, REARCAST WHEEL, REAR
-
294111-14808-00 TIRE (29X11.00R14 M918 8PR TL)TIRE (29X11.00R14 M918 8PR TL)
-
393900-00813-00 VALVE, RIM (TR413) (MAXXIS)VALVE, RIM (TR413) (MAXXIS)
-
4B5H-F5185-01-00 RING 1RING 1
-
590105-088H6-00 BOLT, FLANGEBOLT, FLANGE
-
6B5H-F5111-00-00 HUB, FRONTHUB, FRONT
-
790114-12005-00 BOLT, SERRATIONBOLT, SERRATION
-
890176-12800-00 NUT, CROWNNUT, CROWN
-
92HC-2531H-12-00 REAR DRIVE SHAFT ASSYREAR DRIVE SHAFT ASSY
-
102HC-2530T-12-00 ...BALL JOINT SET...BALL JOINT SET
-
11BG4-2530V-00-00 ...DOUBLE OFF SET JOINT...DOUBLE OFF SET JOINT
-
122HC-2530X-12-00 ...BOOT SET (BALL JOINT)...BOOT SET (BALL JOINT)
-
132HC-2530Y-00-00 ...BOOT SET (DOUBLE OFFSET JOINT)...BOOT SET (DOUBLE OFFSET JOINT)
-
142HC-2536E-00-00 ...CLIP, SPRING...CLIP, SPRING
-
1516B-25185-00-00 ...RING 1...RING 1
-
1616B-2536E-00-00 ...CLIP, SPRING...CLIP, SPRING
-
172HC-2512J-00-00 ...SNAP RING...SNAP RING
-
182HC-25719-00-00 ...BAND...BAND
-
192HC-26293-00-00 ...BAND...BAND
-
202HC-26397-12-00 ...BAND...BAND
-
212HC-2512G-10-00 ...BOOT BAND (SMALL)...BOOT BAND (SMALL)
-
222HC-259A2-00-00 ...SHAFT...SHAFT
-
2390201-25023-00 WASHER, PLATEWASHER, PLATE
-
2490179-24006-00 NUTNUT
-
252HC-F512A-00-00 CAP, WHEELCAP, WHEEL
-
26B5H-F530F-00-00 REAR KNUCKLE ASSY (LEFT)REAR KNUCKLE ASSY (LEFT)
-
2793305-00603-00 ...BEARING...BEARING
-
2893700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
2990381-17067-00 ...BUSH, SOLID...BUSH, SOLID
-
3099009-72500-00 ...CIRCLIP...CIRCLIP
-
3190201-30666-00 WASHER, PLATEWASHER, PLATE
-
3290387-12060-00 COLLARCOLLAR
-
3390387-12061-00 COLLARCOLLAR
-
341XD-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
3590105-12066-00 BOLT, FLANGEBOLT, FLANGE
-
3690105-12097-00 BOLT, FLANGEBOLT, FLANGE
-
3790185-12007-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
382HC-F534C-00-00 RING, WHEEL REAR 1RING, WHEEL REAR 1
-
3990111-06096-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
402HC-F2341-00-00 PLATE, GUIDE 1PLATE, GUIDE 1
-
4192012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
