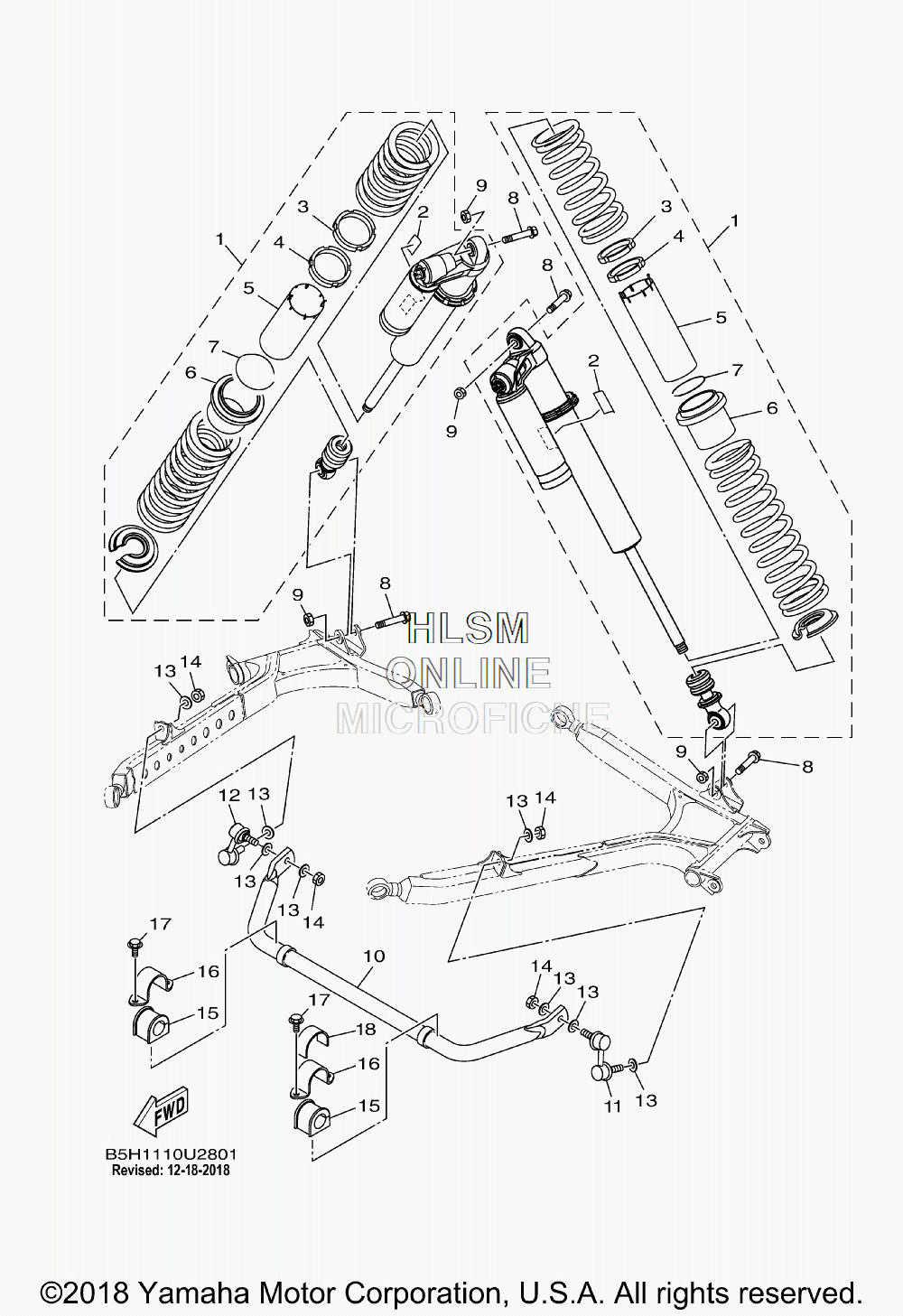

SUSPENSION - REAR SHOCK ABSORBER для Yamaha YXZ1000R EPS SS SPECIAL EDITION (PURE WHITE) - 2019 года выпуска`
-
№АртикулНазвание
-
1B5H-F220T-00-00 REAR SHOCK ABSORBER ASSY 1REAR SHOCK ABSORBER ASSY 1
-
21HP-F2259-01-00 ...LABEL, WARNING...LABEL, WARNING
-
32HC-F2981-00-00 ...RING, HOLD 2...RING, HOLD 2
-
42HC-F2973-00-00 ...RING, HOLD...RING, HOLD
-
52HC-F388D-00-00 ...SLIDER, 1...SLIDER, 1
-
62HC-F2922-00-00 ...SLEEVE...SLEEVE
-
72HC-F4629-00-00 ...RING...RING
-
890105-12051-00 BOLT, FLANGEBOLT, FLANGE
-
990185-12007-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
102HC-G7491-20-00 BAR, STABILIZERBAR, STABILIZER
-
112HC-2385L-00-00 JOINT, STABILIZER 1JOINT, STABILIZER 1
-
122HC-2385M-00-00 JOINT, STABILIZER 2JOINT, STABILIZER 2
-
1390201-12045-00 WASHER, PLATEWASHER, PLATE
-
1490185-12007-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
152HC-F386G-01-00 BUSH, STABILIZER FRONTBUSH, STABILIZER FRONT
-
162HC-F386H-00-00 COVER, STABILIZER FRONTCOVER, STABILIZER FRONT
-
1795812-10020-00 BOLT, FLANGEBOLT, FLANGE
-
182HC-23421-00-00 PLATE, DAMPER 1PLATE, DAMPER 1
