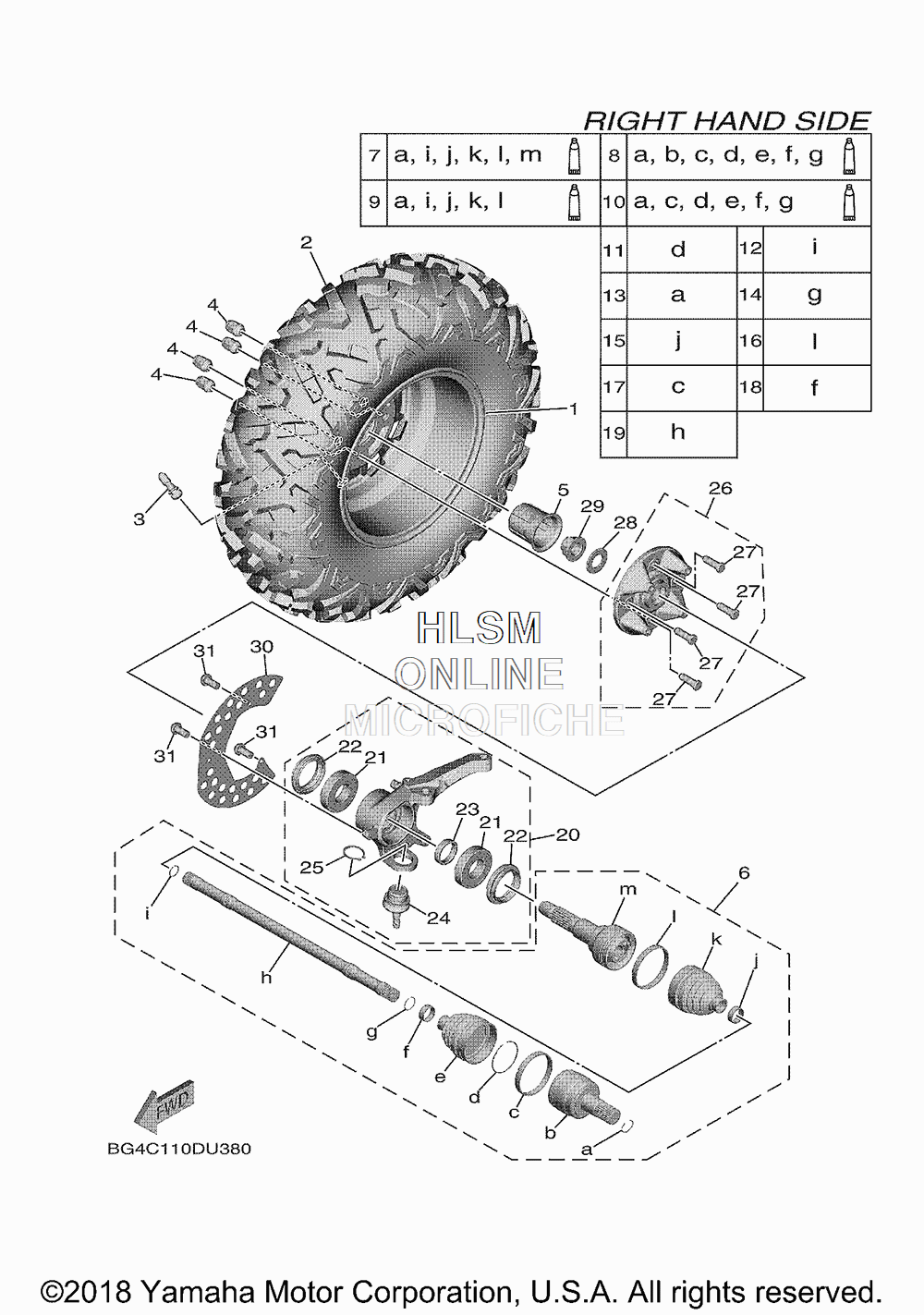

WHEEL - FRONT RIGHT SIDE W/ AXLE ASSY для Yamaha WOLVERINE X4 - 2019 года выпуска`
-
№АртикулНазвание
-
1BG4-F5168-00-00 CAST WHEEL, FRONTCAST WHEEL, FRONT
-
294108-12824-00 TIRE (26X8.00-12 MU75 4PR TL) (MAXXIS)TIRE (26X8.00-12 MU75 4PR TL) (MAXXIS)
-
393900-00813-00 VALVE, RIM (TR413) (MAXXIS)VALVE, RIM (TR413) (MAXXIS)
-
490176-12800-00 NUT, CROWNNUT, CROWN
-
52MB-F512A-00-00 CAP, WHEELCAP, WHEEL
-
6BG4-2518F-00-00 DRIVE SHAFT ASSYDRIVE SHAFT ASSY
-
7BG4-2510F-00-00 ...BALL JOINT SET...BALL JOINT SET
-
8BG4-2510J-00-00 ...DOUBLE OFF SET JOINT...DOUBLE OFF SET JOINT
-
9BG4-2510G-00-00 ...BOOT SET (BALL JOINT)...BOOT SET (BALL JOINT)
-
10BG4-2510H-00-00 ...BOOT SET (DOUBLE OFFSET JOINT)...BOOT SET (DOUBLE OFFSET JOINT)
-
11BG4-25182-00-00 ...CIRCLIP...CIRCLIP
-
122HC-2512H-00-00 ...CIRCLIP...CIRCLIP
-
1316B-2536E-00-00 ...CLIP, SPRING...CLIP, SPRING
-
1416B-2512J-00-00 ...SNAP RING...SNAP RING
-
152HC-2510U-00-00 ...BOOT BAND (BALL JOINT)...BOOT BAND (BALL JOINT)
-
16BG4-2512G-00-00 ...BOOT BAND (SMALL)...BOOT BAND (SMALL)
-
17BG4-2511H-00-00 ...BOOT BAND (DOUBLE OFFSET JOINT)...BOOT BAND (DOUBLE OFFSET JOINT)
-
18BG4-2511G-00-00 ...BOOT BAND (BALL JOINT)...BOOT BAND (BALL JOINT)
-
19BG4-2518E-00-00 ...SHAFT...SHAFT
-
201XD-F3502-00-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
2193306-20725-00 ...BEARING...BEARING
-
2293106-50002-00 ...OIL SEAL...OIL SEAL
-
2390387-35007-00 ...COLLAR...COLLAR
-
241XD-23579-00-00 ...BALL JOINT 2...BALL JOINT 2
-
2599009-32400-00 ...CIRCLIP...CIRCLIP
-
262MB-F510D-02-00 HUB ASSY 2HUB ASSY 2
-
2790114-12005-00 ...BOLT, SERRATION...BOLT, SERRATION
-
2890201-25023-00 WASHER, PLATEWASHER, PLATE
-
2990179-24006-00 NUTNUT
-
301XD-F514A-01-00 RING, WHEEL 1RING, WHEEL 1
-
3192012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
