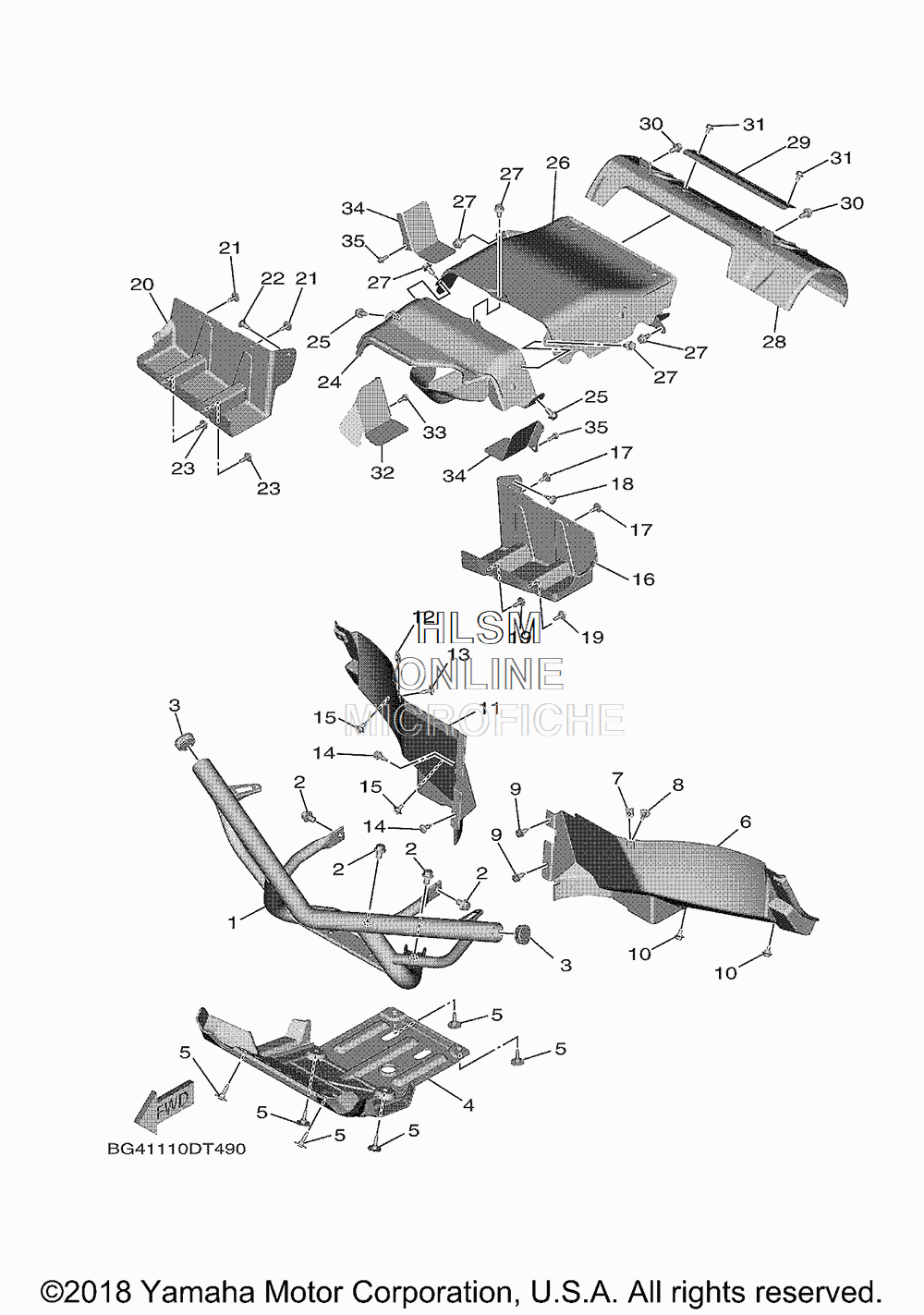

GUARD для Yamaha WOLVERINE X4 SPECIAL EDITION (PURPLISH BLUE) - 2019 года выпуска
-
№АртикулНазвание
-
1BG4-F845N-01-00 BAR, CARRY FRONTBAR, CARRY FRONT
-
295812-10016-00 BOLT, FLANGEBOLT, FLANGE
-
35UG-F2417-00-00 PLUGPLUG
-
42MB-F8385-00-00 COVER, UNDERCOVER, UNDER
-
590109-068A5-00 BOLTBOLT
-
6BG4-F2361-00-00 GUARD 1GUARD 1
-
790183-060A6-00 NUT, SPRINGNUT, SPRING
-
890119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
990269-07805-00 RIVETRIVET
-
1090109-06202-00 BOLTBOLT
-
11BG4-F2362-00-00 GUARD 2GUARD 2
-
1290183-060A6-00 NUT, SPRINGNUT, SPRING
-
1390119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1490269-07805-00 RIVETRIVET
-
1590109-06202-00 BOLTBOLT
-
16BG4-F2327-00-00 MUD GUARD 1MUD GUARD 1
-
1790119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1890269-07805-00 RIVETRIVET
-
19JW1-K6179-01-00 BOLT, SPECIAL 1BOLT, SPECIAL 1
-
20BG4-F2328-00-00 MUD GUARD 2MUD GUARD 2
-
2190119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2290269-07805-00 RIVETRIVET
-
23JW1-K6179-01-00 BOLT, SPECIAL 1BOLT, SPECIAL 1
-
24BG4-E2682-01-00 PROTECTOR, HEATPROTECTOR, HEAT
-
2590105-08867-00 BOLT, FLANGEBOLT, FLANGE
-
26BG4-E2683-01-00 PROTECTOR, HEATPROTECTOR, HEAT
-
2790105-08867-00 BOLT, FLANGEBOLT, FLANGE
-
28BG4-F2891-00-00 INSULATOR, MOUNTINGINSULATOR, MOUNTING
-
29BG4-F2894-00-00 INSULATOR, MOUNTING 2INSULATOR, MOUNTING 2
-
3090105-08867-00 BOLT, FLANGEBOLT, FLANGE
-
3195812-06010-00 BOLT, FLANGEBOLT, FLANGE
-
32BG4-F2826-00-00 PROTECTOR 2PROTECTOR 2
-
3390105-06832-00 BOLT, FLANGEBOLT, FLANGE
-
34BG4-F2825-00-00 PROTECTOR 1PROTECTOR 1
-
3590105-06832-00 BOLT, FLANGEBOLT, FLANGE
