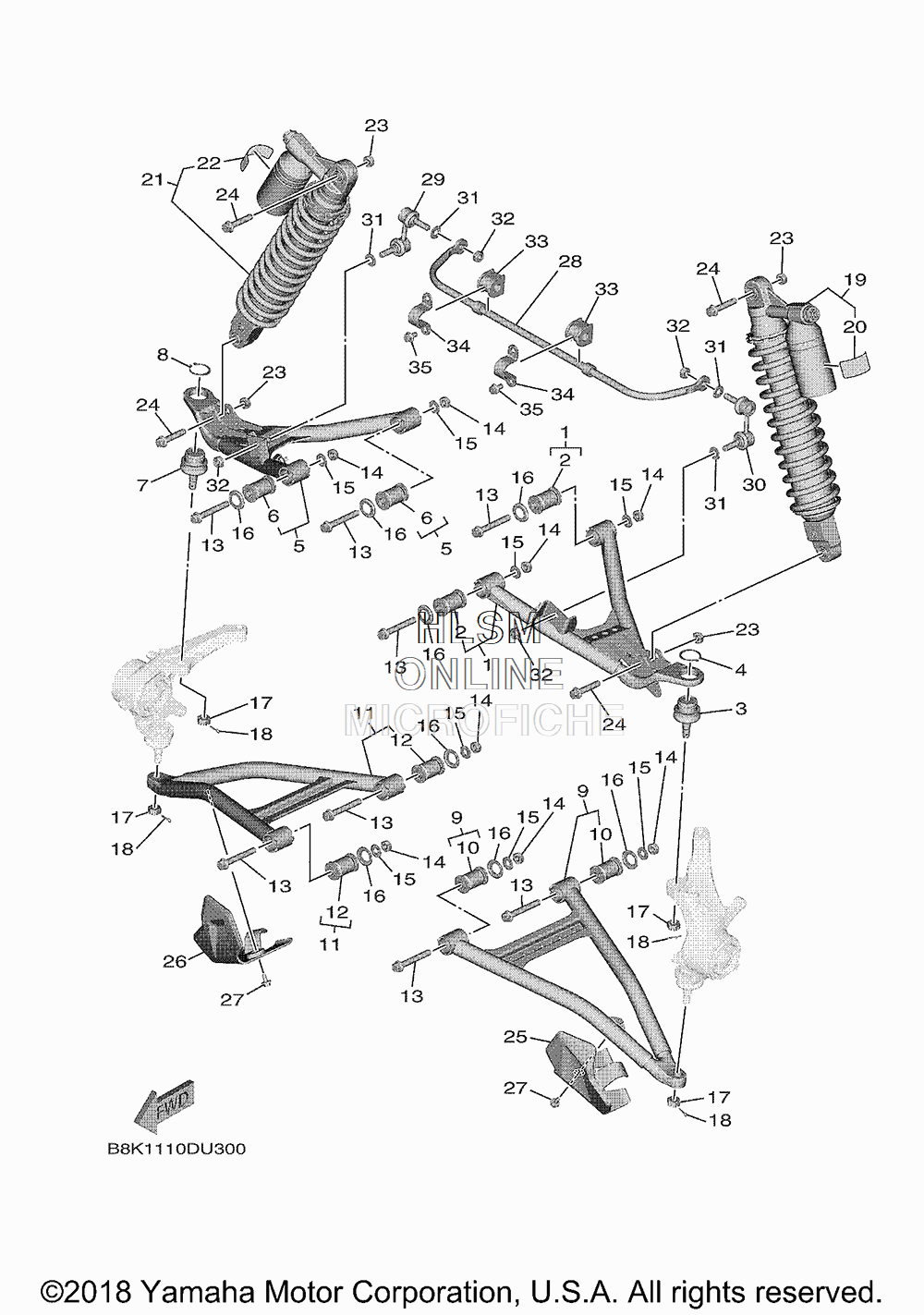

SUSPENSION - FRONT WHEEL для Yamaha WOLVERINE X2 R-SPEC EPS SE (DARK BLUE) - 2019 года выпуска`
-
№АртикулНазвание
-
1BG4-F3540-01-00 FRONT UPPER ARM COMP. (LEFT)FRONT UPPER ARM COMP. (LEFT)
-
21HP-F3526-00-00 ...BUSH...BUSH
-
31XD-23579-00-00 BALL JOINT 2BALL JOINT 2
-
499009-32400-00 CIRCLIPCIRCLIP
-
5BG4-F3550-01-00 FRONT UPPER ARM COMP. (RIGHT)FRONT UPPER ARM COMP. (RIGHT)
-
61HP-F3526-00-00 ...BUSH...BUSH
-
71XD-23579-00-00 BALL JOINT 2BALL JOINT 2
-
899009-32400-00 CIRCLIPCIRCLIP
-
9BG4-F3570-00-00 FRONT LOWER ARM COMP. (LEFT)FRONT LOWER ARM COMP. (LEFT)
-
101HP-F3526-00-00 ...BUSH...BUSH
-
11BG4-F3580-00-00 FRONT LOWER ARM COMP. (RIGHT)FRONT LOWER ARM COMP. (RIGHT)
-
121HP-F3526-00-00 ...BUSH...BUSH
-
1390105-10267-00 BOLT, FLANGEBOLT, FLANGE
-
1490185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1590201-10035-00 WASHER, PLATEWASHER, PLATE
-
16BG4-F3517-00-00 COVER, THRUST 1COVER, THRUST 1
-
1790171-12001-00 NUT, CASTLENUT, CASTLE
-
1891402-25020-00 PIN, COTTERPIN, COTTER
-
19B8K-F350A-70-00 FRONT SHOCK ABSORBER ASSY 1FRONT SHOCK ABSORBER ASSY 1
-
201HP-F2259-01-00 ...LABEL, WARNING...LABEL, WARNING
-
21B8K-F350B-70-00 FRONT SHOCK ABSORBER ASSY 2FRONT SHOCK ABSORBER ASSY 2
-
221HP-F2259-01-00 ...LABEL, WARNING...LABEL, WARNING
-
2390185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2490105-10283-00 BOLT, FLANGEBOLT, FLANGE
-
252MB-F3123-00-00 COVER, UNDER 1COVER, UNDER 1
-
262MB-F3133-00-00 COVER, LOWER 2COVER, LOWER 2
-
2790119-06152-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
28B8K-F386E-01-00 BAR, STABILIZER FRONTBAR, STABILIZER FRONT
-
2916B-2385L-10-00 JOINT, STABILIZER 1JOINT, STABILIZER 1
-
3016B-2385M-10-00 JOINT, STABILIZER 2JOINT, STABILIZER 2
-
3190201-10035-00 WASHER, PLATEWASHER, PLATE
-
3290185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3390480-01820-00 GROMMETGROMMET
-
34BG4-F386B-00-00 BRKT., STABILIZER FRONTBRKT., STABILIZER FRONT
-
3595812-08014-00 BOLT, FLANGEBOLT, FLANGE
