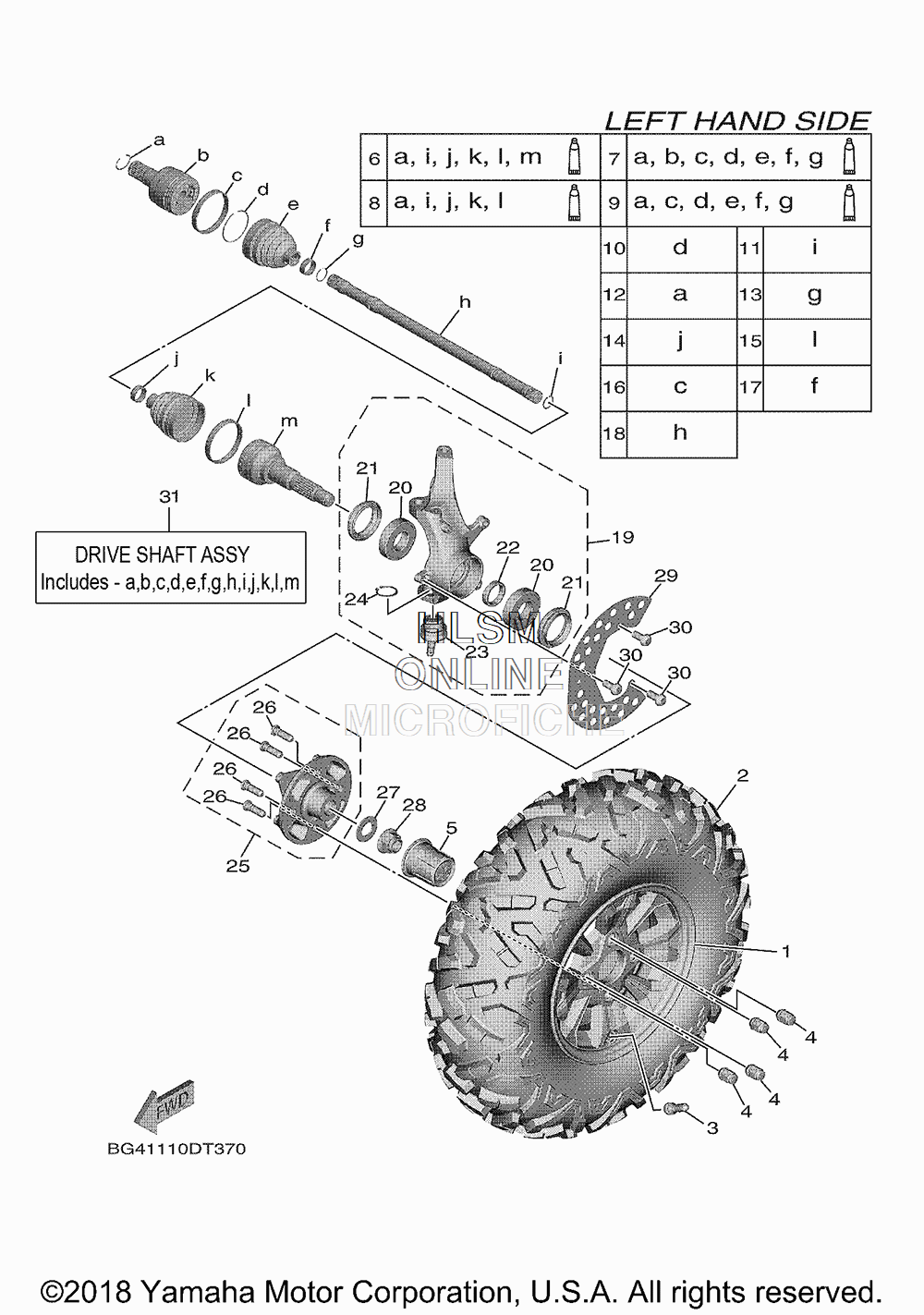

WHEEL - FRONT LEFT W/ AXLE ASSY для Yamaha WOLVERINE X2 R-SPEC EPS HUNTER - 2019 года выпуска`
-
№АртикулНазвание
-
1BG4-F5168-10-00 CAST WHEEL, FRONTCAST WHEEL, FRONT
-
294108-12824-00 TIRE (26X8.00-12 MU75 4PR TL) (MAXXIS)TIRE (26X8.00-12 MU75 4PR TL) (MAXXIS)
-
393900-00813-00 VALVE, RIM (TR413) (MAXXIS)VALVE, RIM (TR413) (MAXXIS)
-
490176-12800-00 NUT, CROWNNUT, CROWN
-
52MB-F512A-00-00 CAP, WHEELCAP, WHEEL
-
6BG4-2510F-00-00 BALL JOINT SETBALL JOINT SET
-
7BG4-2510J-00-00 DOUBLE OFF SET JOINTDOUBLE OFF SET JOINT
-
8BG4-2510G-00-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
9BG4-2510H-00-00 BOOT SET (DOUBLE OFFSET JOINT)BOOT SET (DOUBLE OFFSET JOINT)
-
10BG4-25182-00-00 CIRCLIPCIRCLIP
-
112HC-2512H-00-00 CIRCLIPCIRCLIP
-
1216B-2536E-00-00 CLIP, SPRINGCLIP, SPRING
-
1316B-2512J-00-00 SNAP RINGSNAP RING
-
142HC-2510U-00-00 BOOT BAND (BALL JOINT)BOOT BAND (BALL JOINT)
-
15BG4-2512G-00-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
16BG4-2511H-00-00 BOOT BAND (DOUBLE OFFSET JOINT)BOOT BAND (DOUBLE OFFSET JOINT)
-
17BG4-2511G-00-00 BOOT BAND (BALL JOINT)BOOT BAND (BALL JOINT)
-
18BG4-2518E-00-00 SHAFTSHAFT
-
191XD-F3501-00-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
2093306-20725-00 ...BEARING...BEARING
-
2193106-50002-00 ...OIL SEAL...OIL SEAL
-
2193106-50002-00 ...OIL SEAL...OIL SEAL
-
2290387-35007-00 ...COLLAR...COLLAR
-
231XD-23579-00-00 ...BALL JOINT 2...BALL JOINT 2
-
2499009-32400-00 ...CIRCLIP...CIRCLIP
-
252MB-F510D-02-00 HUB ASSY 2HUB ASSY 2
-
2690114-12005-00 ...BOLT, SERRATION...BOLT, SERRATION
-
2790201-25023-00 WASHER, PLATEWASHER, PLATE
-
2890179-24006-00 NUTNUT
-
291XD-F514A-01-00 RING, WHEEL 1RING, WHEEL 1
-
3092012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
31BG4-2518F-00-00 DRIVE SHAFT ASSYDRIVE SHAFT ASSY
