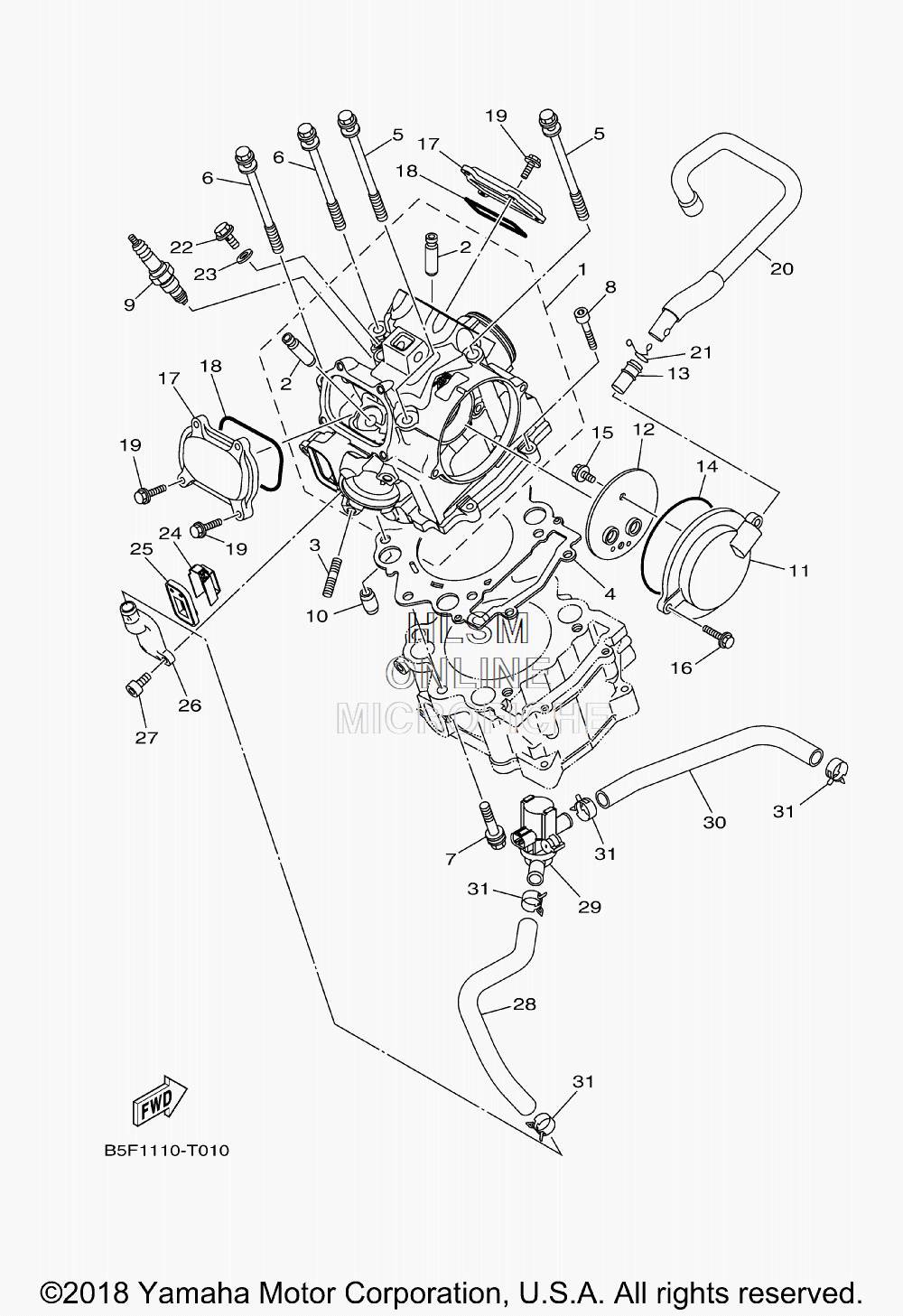

CYLINDER HEAD для Yamaha VIKING - 2019 года выпуска`
-
№АртикулНазвание
-
12BG-11102-00-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
24G0-11133-11-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
395612-08625-00 BOLT, STUDBOLT, STUD
-
43B4-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
590109-09003-00 BOLTBOLT
-
690109-09002-00 BOLTBOLT
-
790109-09005-00 BOLTBOLT
-
891312-06030-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
9CPR-7EA90-00-00 PLUG, SPARK (NGK CPR7EA)PLUG, SPARK (NGK CPR7EA)
-
1093612-16254-00 PIN, DOWELPIN, DOWEL
-
113B4-11185-00-00 COVER, CYLINDER HEAD SIDE 3COVER, CYLINDER HEAD SIDE 3
-
123B4-11165-10-00 PLATE, BREATHERPLATE, BREATHER
-
13371-11167-01-00 PIPE, BREATHER 2PIPE, BREATHER 2
-
1493210-96601-00 O-RINGO-RING
-
1595022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1695022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
171S3-11186-00-00 COVER, CYLINDER HEAD SIDE 2COVER, CYLINDER HEAD SIDE 2
-
1893210-78544-00 O-RINGO-RING
-
1995022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
201XD-E1166-10-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
2190467-140A4-00 CLIPCLIP
-
2290401-08004-00 BOLT, UNIONBOLT, UNION
-
2390430-08119-00 GASKETGASKET
-
242BG-1482K-00-00 PLATEPLATE
-
255JW-14890-00-00 REED VALVE ASSYREED VALVE ASSY
-
265JW-14889-00-00 CAP, CASECAP, CASE
-
2790110-06175-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
281XD-E4881-00-00 HOSE, BEND 1HOSE, BEND 1
-
292BG-14840-00-00 AIR CUT VALVE ASSYAIR CUT VALVE ASSY
-
301XD-E4882-00-00 HOSE, BEND 2HOSE, BEND 2
-
3190467-17089-00 CLIPCLIP
