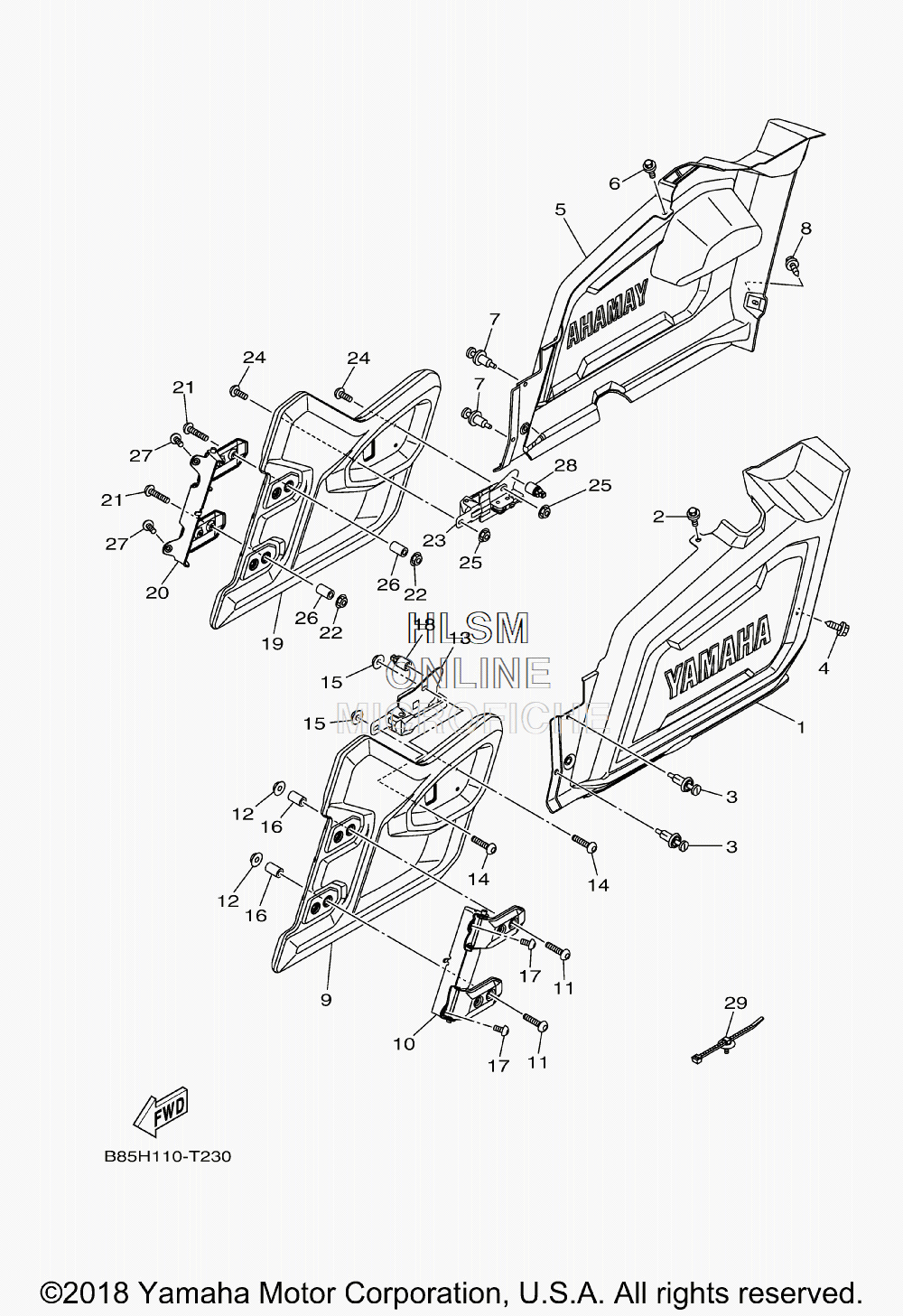

SIDE COVER 2 для Yamaha VIKING VI EPS HUNTER - 2019 года выпуска`
-
№АртикулНазвание
-
11XD-F1721-00-00 COVER, SIDE 2COVER, SIDE 2
-
290119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
390269-07805-00 RIVETRIVET
-
490119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
51XD-F1731-00-00 COVER, SIDE 3COVER, SIDE 3
-
690119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
790269-07805-00 RIVETRIVET
-
890119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
92PG-K8571-11-00 PANEL, DOOR REAR (LEFT HAND)PANEL, DOOR REAR (LEFT HAND)
-
102PG-F4772-10-00 HINGE ASSYHINGE ASSY
-
1190109-06897-00 BOLTBOLT
-
1295602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
132MB-K7171-00-00 BODY, LATCH 1BODY, LATCH 1
-
1490111-06086-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1595602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1690387-06304-00 COLLARCOLLAR
-
1790149-06847-00 SCREWSCREW
-
182MB-F8378-00-00 PADPAD
-
192PG-K8571-11-00 PANEL, DOOR REAR (RIGHT HAND)PANEL, DOOR REAR (RIGHT HAND)
-
202PG-F4779-10-00 HINGE, SEAT 2HINGE, SEAT 2
-
2190109-06897-00 BOLTBOLT
-
2295602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
232MB-K7172-00-00 BODY, LATCH 2BODY, LATCH 2
-
2490111-06086-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2595602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2690387-06304-00 COLLARCOLLAR
-
2790149-06847-00 SCREWSCREW
-
282MB-F8378-00-00 PADPAD
-
295B4-F1338-00-00 CLAMPCLAMP
