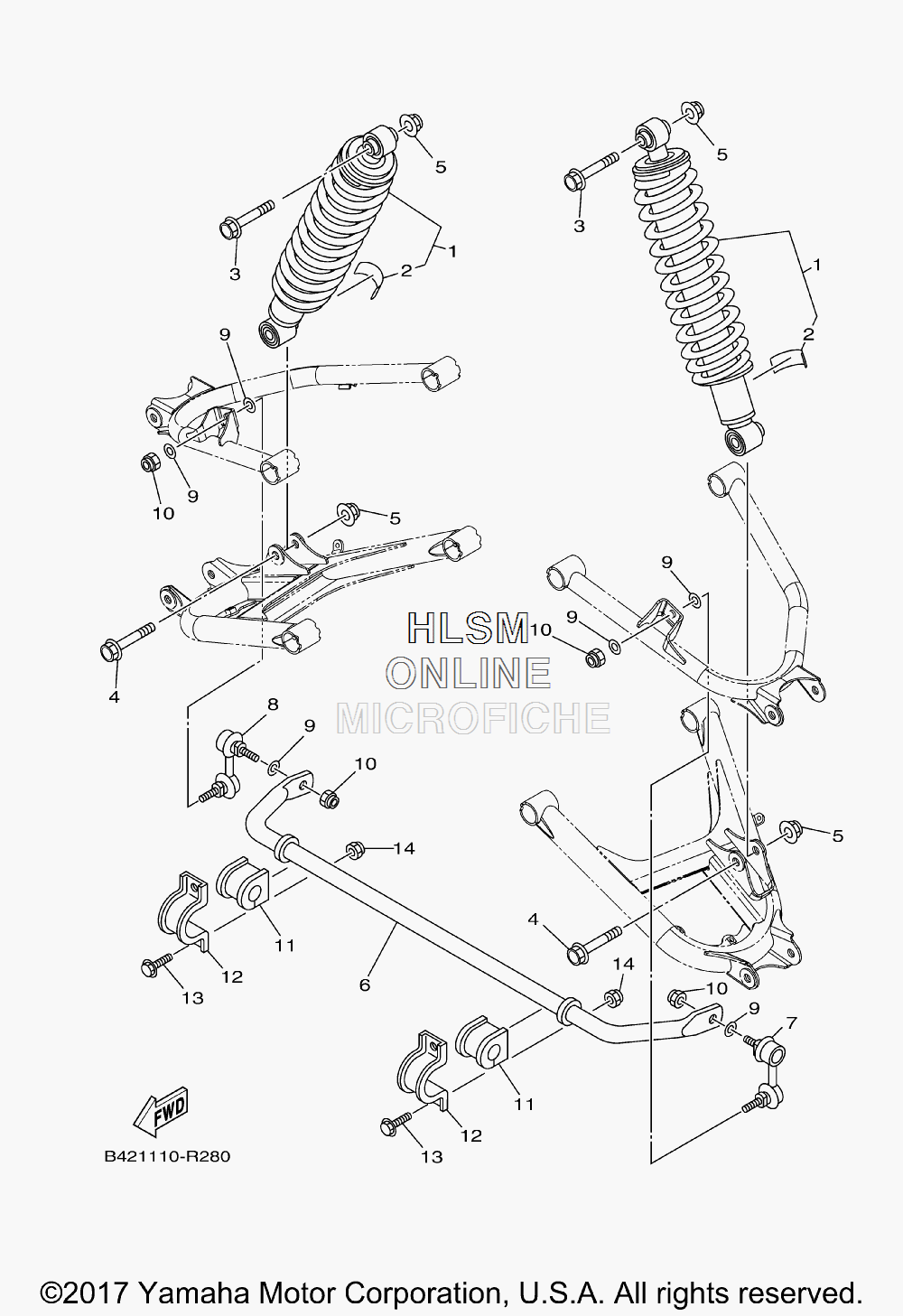

SUSPENSION - REAR SHOCK ABSORBER для Yamaha VIKING VI EPS RANCH EDITION - 2018 года выпуска`
-
№АртикулНазвание
-
12PG-F2200-00-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
21HP-F2259-01-00 ...LABEL, WARNING...LABEL, WARNING
-
390105-12056-00 BOLT, FLANGEBOLT, FLANGE
-
490105-12055-00 BOLT, FLANGEBOLT, FLANGE
-
590185-12009-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
61XD-G7491-00-00 BAR, STABILIZERBAR, STABILIZER
-
716B-2385L-10-00 JOINT, STABILIZER 1JOINT, STABILIZER 1
-
816B-2385M-10-00 JOINT, STABILIZER 2JOINT, STABILIZER 2
-
990201-10035-00 WASHER, PLATEWASHER, PLATE
-
1090185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
111XD-F386G-00-00 BUSH, STABILIZER FRONTBUSH, STABILIZER FRONT
-
121XD-F386H-00-00 COVER, STABILIZER FRONTCOVER, STABILIZER FRONT
-
1395812-10020-00 BOLT, FLANGEBOLT, FLANGE
-
1490185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
