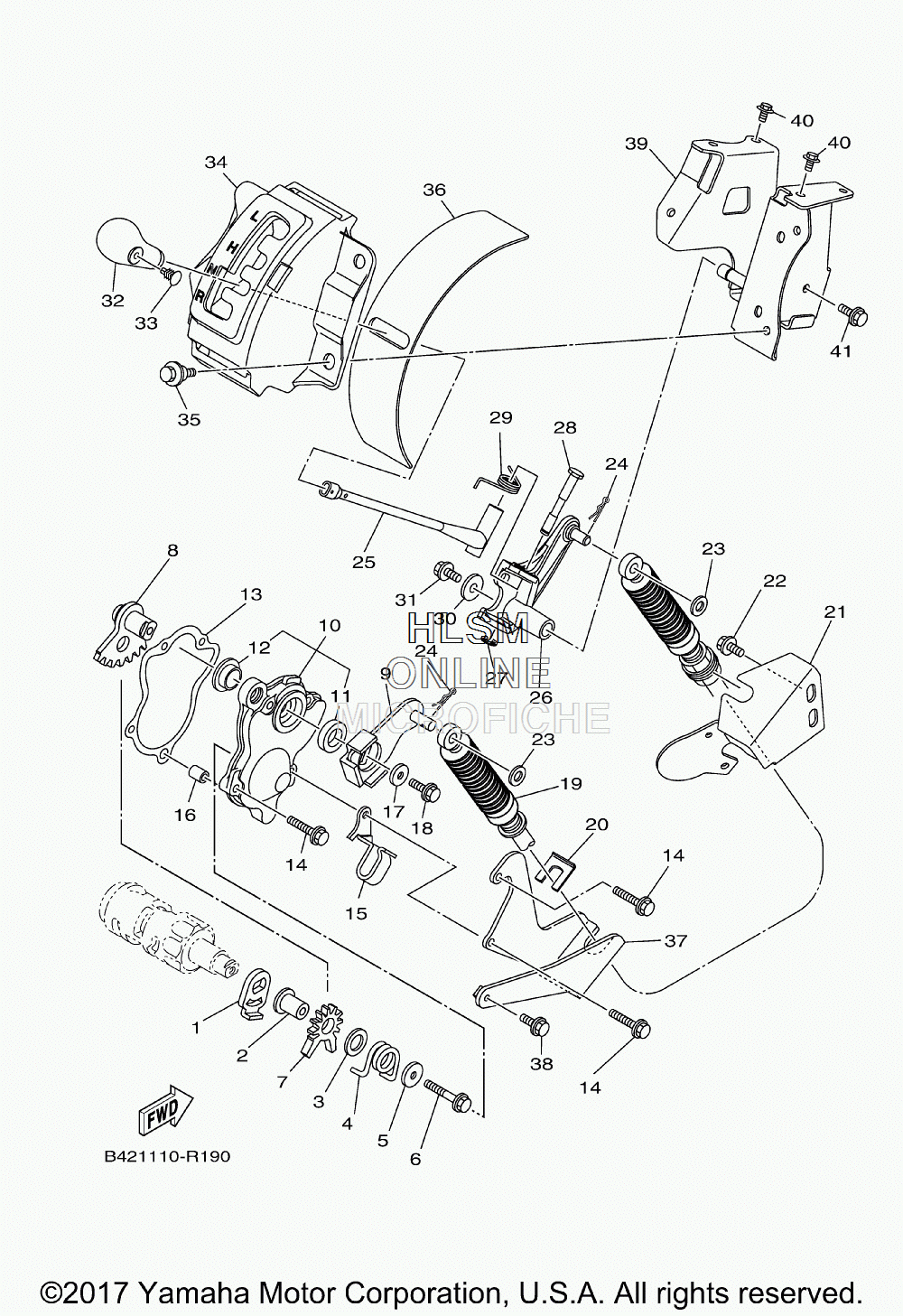

SHIFT SHAFT для Yamaha VIKING EPS HUNTER - 2018 года выпуска`
-
№АртикулНазвание
-
11XD-18198-00-00 LEVERLEVER
-
290387-0613B-00 COLLARCOLLAR
-
390201-132G5-00 WASHER, PLATEWASHER, PLATE
-
490508-35764-00 SPRING, TORSIONSPRING, TORSION
-
590201-06036-00 WASHER, PLATEWASHER, PLATE
-
695812-06035-00 BOLT, FLANGEBOLT, FLANGE
-
75KM-18191-00-00 LEVERLEVER
-
83B4-18103-11-00 SHIFT SHAFT COMP.SHIFT SHAFT COMP.
-
91XD-18104-00-00 SHIFT GUIDE COMP.SHIFT GUIDE COMP.
-
103B4-18380-00-00 SHIFTER BRKT. ASSYSHIFTER BRKT. ASSY
-
1193102-15212-00 ...OIL SEAL...OIL SEAL
-
123B4-18582-00-00 ...SPACER 2...SPACER 2
-
133B4-18146-00-00 GASKETGASKET
-
1495022-06025-00 BOLT, FLANGEBOLT, FLANGE
-
1590462-10048-00 CLAMPCLAMP
-
1699530-08012-00 PIN, DOWELPIN, DOWEL
-
1790201-06036-00 WASHER, PLATEWASHER, PLATE
-
1890105-06176-00 BOLT, FLANGEBOLT, FLANGE
-
19B42-2637E-00-00 CABLE, CONTROL 1CABLE, CONTROL 1
-
201XD-25866-00-00 CIRCLIPCIRCLIP
-
21B42-F6381-00-00 HOLDER, ADJUSTINGHOLDER, ADJUSTING
-
2295812-08014-00 BOLT, FLANGEBOLT, FLANGE
-
2392902-08600-00 WASHER, PLATEWASHER, PLATE
-
2490468-16001-00 CLIPCLIP
-
251XD-E8190-10-00 LEVER COMP. 1LEVER COMP. 1
-
261XD-E8169-00-00 ARM, SHIFT 2ARM, SHIFT 2
-
2799002-06600-00 CIRCLIPCIRCLIP
-
281HP-E8125-00-00 SHAFT, SHIFTSHAFT, SHIFT
-
291HP-E8196-00-00 SPRING, RETURNSPRING, RETURN
-
3090201-06036-00 WASHER, PLATEWASHER, PLATE
-
3195812-06016-00 BOLT, FLANGEBOLT, FLANGE
-
3228P-18174-00-00 KNOB, SHIFT LEVERKNOB, SHIFT LEVER
-
3390269-05055-00 RIVETRIVET
-
341XD-E8172-00-00 GUIDE, SHIFTGUIDE, SHIFT
-
3590109-06172-00 BOLTBOLT
-
361HP-E8154-00-00 COVER, DUSTCOVER, DUST
-
371XD-18431-00-00 BRACKET, SHIFTERBRACKET, SHIFTER
-
3895022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
391XD-E811A-00-00 PLATE, SHIFT ARMPLATE, SHIFT ARM
-
4095812-06012-00 BOLT, FLANGEBOLT, FLANGE
-
4190105-06831-00 BOLT, FLANGEBOLT, FLANGE
