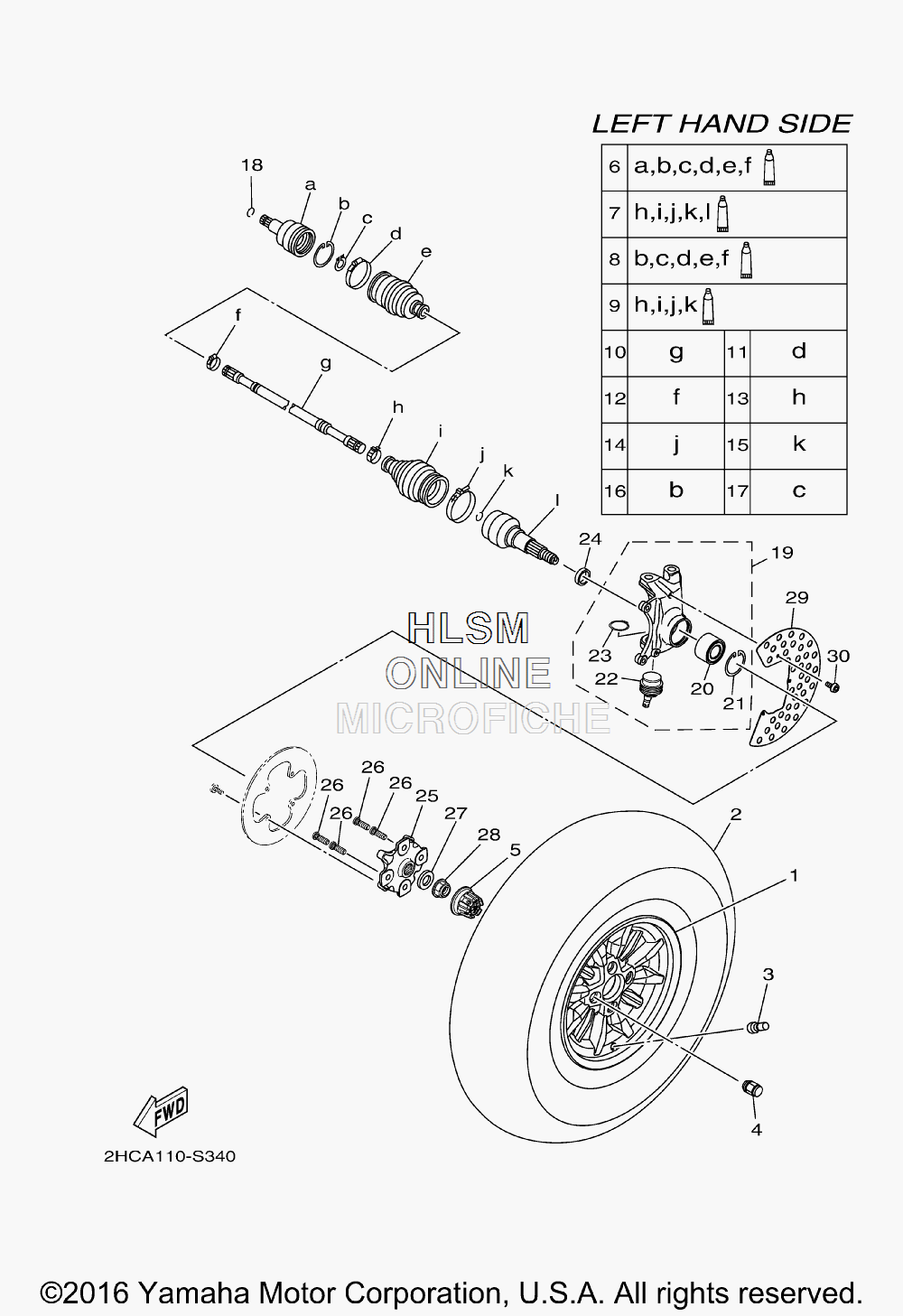

WHEEL - FRONT LEFT SIDE W/ AXLE ASSY для Yamaha YXZ1000 EPS - 2017 года выпуска
-
№АртикулНазвание
-
12HC-F516D-00-00 WHEEL, CAST 2WHEEL, CAST 2
-
294109-14809-00 TIRE (27X9.00R14 MU09 6PR TL) (MAXXIS)TIRE (27X9.00R14 MU09 6PR TL) (MAXXIS)
-
393900-00813-00 VALVE, RIM (TR413) (MAXXIS)VALVE, RIM (TR413) (MAXXIS)
-
490176-12800-00 NUT, CROWNNUT, CROWN
-
52HC-F512A-00-00 CAP, WHEELCAP, WHEEL
-
62HC-2510J-00-00 DOUBLE OFF SET JOINTDOUBLE OFF SET JOINT
-
72HC-2510F-00-00 BALL JOINT SETBALL JOINT SET
-
82HC-2510H-00-00 BOOT SET (DOUBLE OFFSET JOINT)BOOT SET (DOUBLE OFFSET JOINT)
-
92HC-2510G-00-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
102HC-2518E-00-00 SHAFTSHAFT
-
112HC-2511H-00-00 BOOT BAND (DOUBLE OFFSET JOINT)BOOT BAND (DOUBLE OFFSET JOINT)
-
122HC-2511G-00-00 BOOT BAND (DOUBLE OFFSET JOINT)BOOT BAND (DOUBLE OFFSET JOINT)
-
132HC-2510U-00-00 BOOT BAND (BALL JOINT)BOOT BAND (BALL JOINT)
-
142HC-2512G-00-00 BOOT BAND (BALL JOINT)BOOT BAND (BALL JOINT)
-
152HC-2512H-00-00 CIRCLIPCIRCLIP
-
163B4-25182-00-00 CIRCLIPCIRCLIP
-
173B4-2512J-00-00 SNAP RINGSNAP RING
-
1893450-22119-00 CIRCLIPCIRCLIP
-
192HC-F3501-10-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
2093305-00602-00 ...BEARING...BEARING
-
2199009-55500-00 ...CIRCLIP...CIRCLIP
-
222HC-23579-00-00 ...BALL JOINT 2...BALL JOINT 2
-
2393410-42096-00 ...CIRCLIP...CIRCLIP
-
2490387-30008-00 COLLARCOLLAR
-
252HC-F5111-00-00 HUB, FRONTHUB, FRONT
-
2690114-12005-00 BOLT, SERRATIONBOLT, SERRATION
-
2790201-25023-00 WASHER, PLATEWASHER, PLATE
-
2890179-24006-00 NUTNUT
-
292HC-F514A-00-00 RING, WHEEL 1RING, WHEEL 1
-
3092012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
