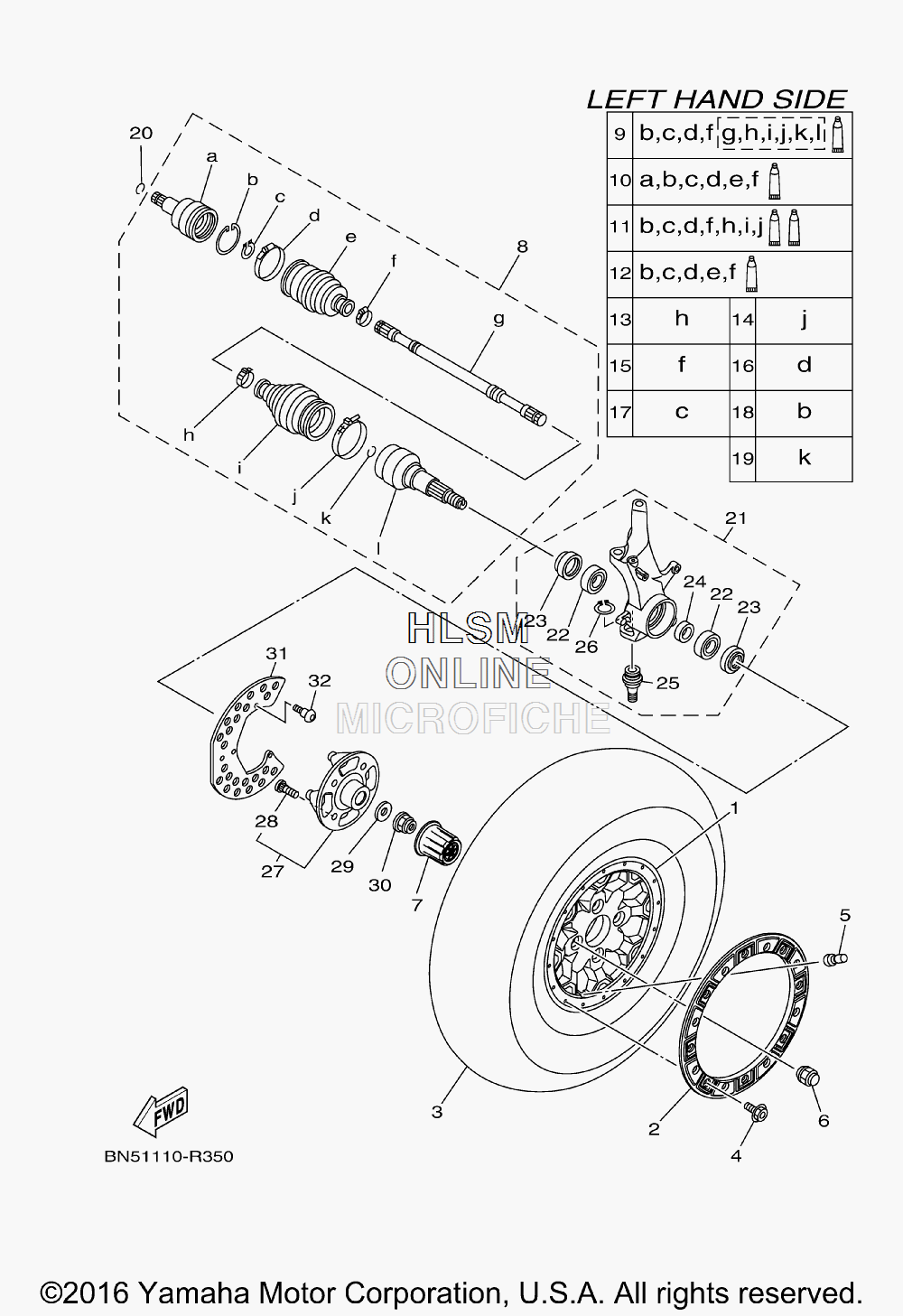

WHEEL - FRONT LEFT SIDE W/ AXLE ASSY для Yamaha WOLVERINE R-SPEC EPS SPECIAL EDITION - 2017 года выпуска`
-
№АртикулНазвание
-
1BN5-F5168-10-00 CAST WHEEL, FRONTCAST WHEEL, FRONT
-
2BN5-F4658-01-00 NUT, CAPNUT, CAP
-
394108-12821-00 TIRE (26X8.00-12 MU09 2PR TL)TIRE (26X8.00-12 MU09 2PR TL)
-
490105-068C3-00 BOLT, FLANGEBOLT, FLANGE
-
593900-00813-00 VALVE, RIM (TR413)VALVE, RIM (TR413)
-
690176-12800-00 NUT, CROWNNUT, CROWN
-
72MB-F512A-00-00 CAP, WHEELCAP, WHEEL
-
81XD-F518F-00-00 DRIVE SHAFT ASSYDRIVE SHAFT ASSY
-
91XD-F530T-10-00 ...BALL JOINT SET...BALL JOINT SET
-
101XD-F530V-10-00 ...DOUBLE OFF SET JOINT...DOUBLE OFF SET JOINT
-
111XD-F530X-10-00 ...BOOT SET (BALL JOINT)...BOOT SET (BALL JOINT)
-
121XD-F530Y-10-00 ...BOOT SET (DOUBLE OFFSET JOINT)...BOOT SET (DOUBLE OFFSET JOINT)
-
131XD-F511H-00-00 ...BOOT BAND (DOUBLE OFFSET JOINT)...BOOT BAND (DOUBLE OFFSET JOINT)
-
141XD-F511G-00-00 ...BOOT BAND (BALL JOINT)...BOOT BAND (BALL JOINT)
-
155UG-F510U-00-00 ...BOOT BAND (SMALL)...BOOT BAND (SMALL)
-
161XD-F512G-10-00 ...BOOT BAND (SMALL)...BOOT BAND (SMALL)
-
173B4-2512J-00-00 ...SNAP RING...SNAP RING
-
183B4-25182-00-00 ...CIRCLIP...CIRCLIP
-
195UG-F512H-00-00 ...CIRCLIP...CIRCLIP
-
2093450-22119-00 CIRCLIPCIRCLIP
-
211XD-F3501-00-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
2293306-20725-00 ...BEARING...BEARING
-
2393106-50002-00 ...OIL SEAL...OIL SEAL
-
2490387-35007-00 ...COLLAR...COLLAR
-
251XD-23579-00-00 ...BALL JOINT 2...BALL JOINT 2
-
2699009-32400-00 ...CIRCLIP...CIRCLIP
-
272MB-F510D-00-00 HUB ASSY 2HUB ASSY 2
-
2890114-12002-00 ...BOLT, SERRATION...BOLT, SERRATION
-
2990201-25023-00 WASHER, PLATEWASHER, PLATE
-
3090179-24006-00 NUTNUT
-
311XD-F514A-01-00 RING, WHEEL 1RING, WHEEL 1
-
3292012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
