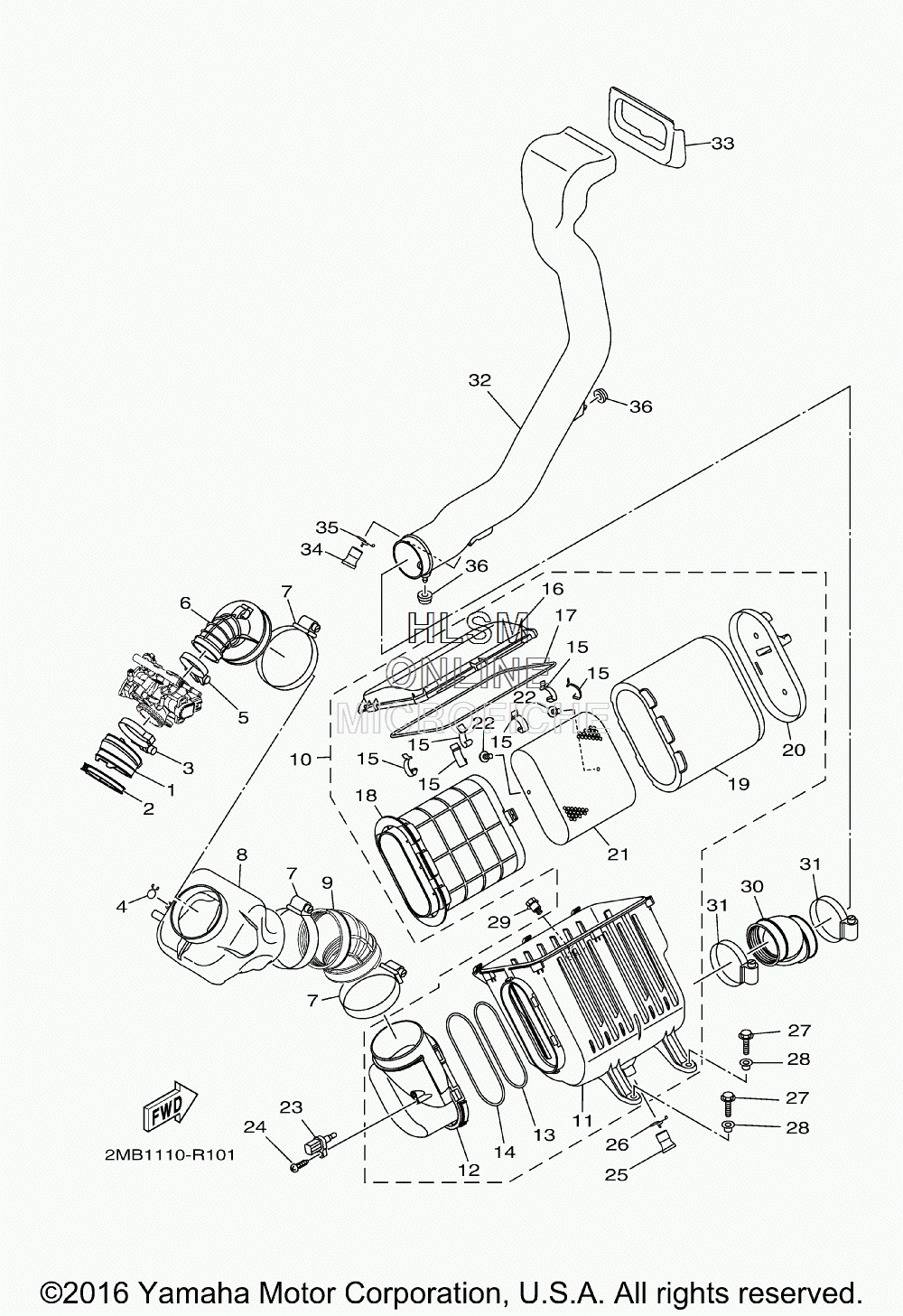

AIR CLEANER W/ INTAKE для Yamaha WOLVERINE R-SPEC EPS HUNTER - 2017 года выпуска`
-
№АртикулНазвание
-
12MB-E3586-00-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
22MB-E1388-00-00 CLAMP, HOSE 2CLAMP, HOSE 2
-
390450-72004-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
490467-16063-00 CLIPCLIP
-
590450-59009-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
61XD-E4453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
790450-99004-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
81XD-E4431-00-00 SILENCER, INTAKE 1SILENCER, INTAKE 1
-
91XD-E4463-00-00 JOINT, AIR CLEANER 2JOINT, AIR CLEANER 2
-
101XD-E4410-02-00 AIR CLEANER ASSY.AIR CLEANER ASSY.
-
111XD-E4411-01-00 ...CASE, AIR CLEANER 1...CASE, AIR CLEANER 1
-
121XD-E4458-00-00 ...GUIDE...GUIDE
-
131XD-E4462-01-00 ...SEAL...SEAL
-
141XD-E4467-00-00 ...SEAL...SEAL
-
153B4-14424-00-00 ...CLIP, CAP FITTING...CLIP, CAP FITTING
-
161XD-E4412-01-00 ...CAP, CLEANER CASE 1...CAP, CLEANER CASE 1
-
171XD-E4452-00-00 ...SEAL...SEAL
-
181XD-E4472-00-00 ...PLATE, ELEMENT...PLATE, ELEMENT
-
191XD-E4451-00-00 ...ELEMENT, AIR CLEANER...ELEMENT, AIR CLEANER
-
201XD-E4417-00-00 ...COVER 1...COVER 1
-
211XD-E441B-00-00 ...NET 1...NET 1
-
221XD-E4429-00-00 ...SCREW...SCREW
-
238FP-85886-00-00 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
2497702-50520-00 SCREW, TAPPINGSCREW, TAPPING
-
2559V-14457-00-00 SEALSEAL
-
2690467-220A1-00 CLIPCLIP
-
2790105-06833-00 BOLT, FLANGEBOLT, FLANGE
-
2890387-07037-00 COLLARCOLLAR
-
2990109-06262-00 BOLTBOLT
-
302MB-E4476-00-00 SEALSEAL
-
3190450-94001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
322PG-E443A-00-00 DUCTDUCT
-
332MB-F839U-00-00 GASKET, DUCTGASKET, DUCT
-
3459V-14457-00-00 SEALSEAL
-
3590467-220A1-00 CLIPCLIP
-
3690480-13567-00 GROMMETGROMMET
