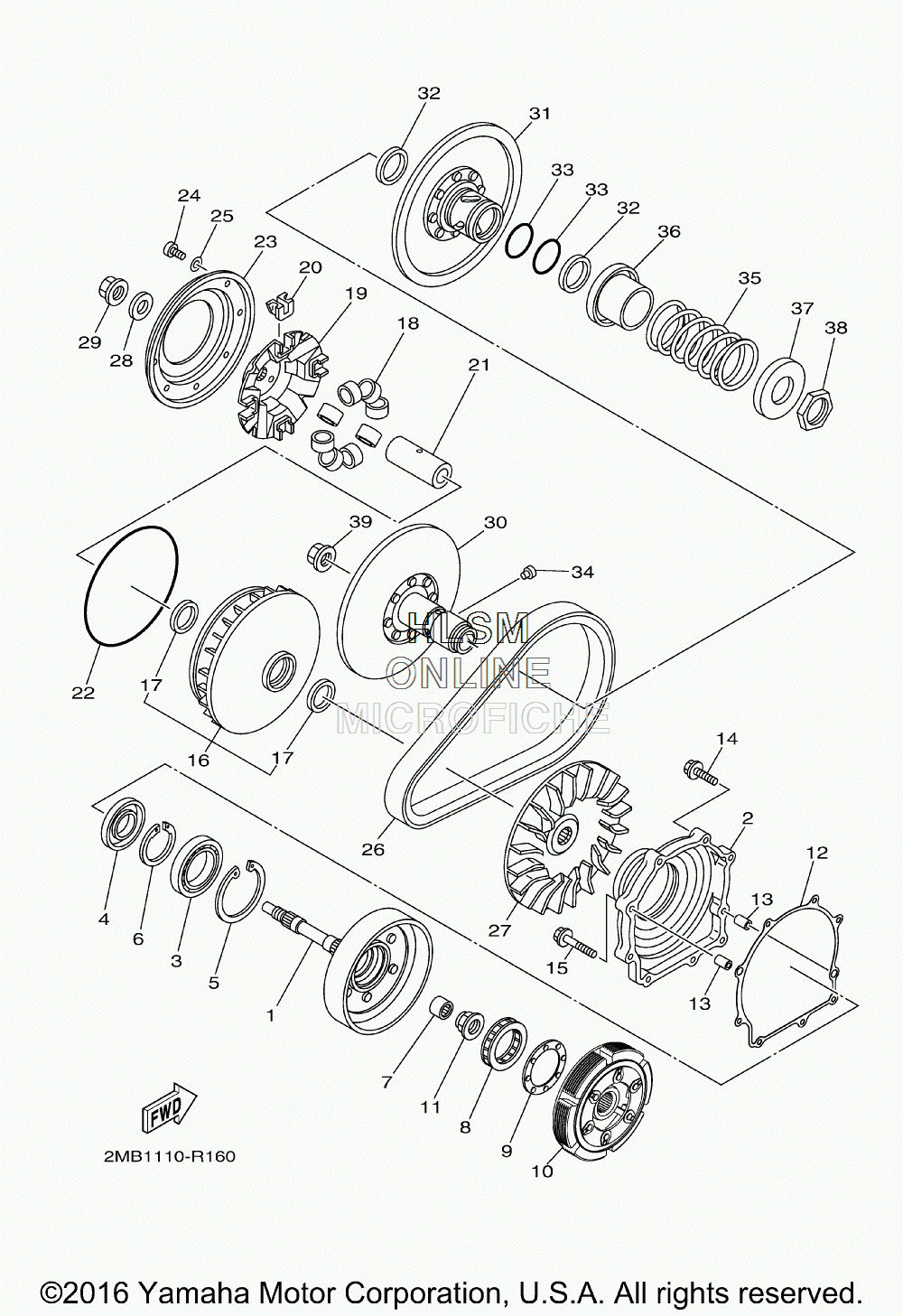

CLUTCH для Yamaha WOLVERINE HUNTER - 2017 года выпуска`
-
№АртикулНазвание
-
12MB-E6611-00-00 CLUTCH HOUSING COMP.CLUTCH HOUSING COMP.
-
22MB-E5163-00-00 HOUSING, BEARING 1HOUSING, BEARING 1
-
32MB-E6642-00-00 BEARING, CLUTCH AXLEBEARING, CLUTCH AXLE
-
42MB-E511B-00-00 OIL SEALOIL SEAL
-
52MB-E6819-00-00 CIRCLIP, CLUTCHCIRCLIP, CLUTCH
-
62MB-E5744-00-00 CIRCLIPCIRCLIP
-
72MB-E7678-00-00 BEARINGBEARING
-
82MB-E6664-00-00 BEARING, ONE WAYBEARING, ONE WAY
-
92MB-E6717-00-00 RING, SEALRING, SEAL
-
102MB-E6620-00-00 CLUTCH CARRIER ASSYCLUTCH CARRIER ASSY
-
112MB-E6134-00-00 NUT, LOCKNUT, LOCK
-
122MB-E5463-00-00 GASKET, 2GASKET, 2
-
132MB-E5181-00-00 PIN, DOWELPIN, DOWEL
-
142MB-E5481-50-00 BOLT 1BOLT 1
-
152MB-E5481-30-00 BOLT 1BOLT 1
-
162MB-E7606-00-00 PRIMARY SLIDING SHEAVE COMP.PRIMARY SLIDING SHEAVE COMP.
-
172MB-F3145-00-00 ...OIL SEAL...OIL SEAL
-
182MB-E7632-00-00 WEIGHTWEIGHT
-
193B4-17623-02-00 CAMCAM
-
202MB-E7653-00-00 SLIDERSLIDER
-
212MB-E7645-00-00 COLLARCOLLAR
-
222MB-E3473-00-00 O-RINGO-RING
-
232MB-E7639-00-00 STOPPERSTOPPER
-
242MB-E1813-00-00 SCREW, PAN HEADSCREW, PAN HEAD
-
252MB-E1558-00-00 WASHER 2WASHER 2
-
262MB-E7641-00-00 V-BELTV-BELT
-
273B4-17611-00-00 SHEAVE, PRIMARY FIXEDSHEAVE, PRIMARY FIXED
-
282MB-E7648-00-00 WASHERWASHER
-
292MB-E7668-00-00 NUTNUT
-
301XD-17660-00-00 SECONDARY FIXED SHEAVE COMP.SECONDARY FIXED SHEAVE COMP.
-
312PG-17670-00-00 SECONDARY SLIDING SHEAVESECONDARY SLIDING SHEAVE
-
3293104-41119-00 OIL SEALOIL SEAL
-
3393210-44545-00 O-RINGO-RING
-
344CW-17664-00-00 PIN, GUIDEPIN, GUIDE
-
3590501-650A0-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
364WV-17684-00-00 SEAT, SECONDARY SPRINGSEAT, SECONDARY SPRING
-
374WV-17644-00-00 SEAT,SPRINGSEAT,SPRING
-
3890170-36279-00 NUTNUT
-
392MB-E7668-00-00 NUTNUT
