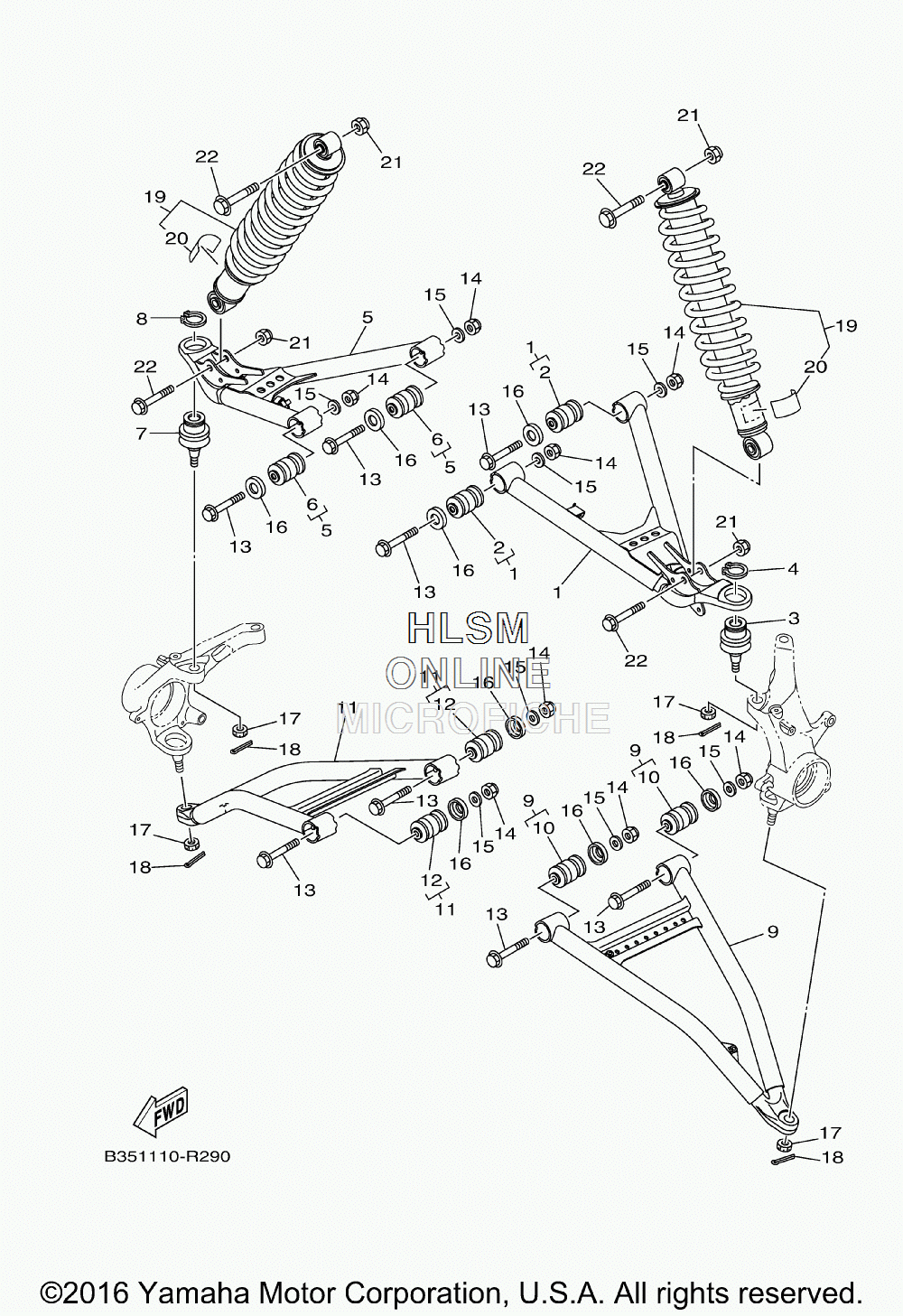

SUSPENSION - FRONT WHEEL для Yamaha WOLVERINE EPS HUNTER - 2017 года выпуска`
-
№АртикулНазвание
-
11XD-F3540-00-00 FRONT UPPER ARM COMP. (LEFT)FRONT UPPER ARM COMP. (LEFT)
-
21HP-F3526-00-00 ...BUSH...BUSH
-
31XD-23579-00-00 BALL JOINT 2BALL JOINT 2
-
499009-32400-00 CIRCLIPCIRCLIP
-
51XD-F3550-00-00 FRONT UPPER ARM COMP. (RIGHT)FRONT UPPER ARM COMP. (RIGHT)
-
61HP-F3526-00-00 ...BUSH...BUSH
-
71XD-23579-00-00 BALL JOINT 2BALL JOINT 2
-
899009-32400-00 CIRCLIPCIRCLIP
-
92MB-F3570-00-00 FRONT LOWER ARM COMP. (LEFT)FRONT LOWER ARM COMP. (LEFT)
-
101HP-F3526-00-00 ...BUSH...BUSH
-
112MB-F3580-00-00 FRONT LOWER ARM COMP. (RIGHT)FRONT LOWER ARM COMP. (RIGHT)
-
121HP-F3526-00-00 ...BUSH...BUSH
-
1390105-10267-00 BOLT, FLANGEBOLT, FLANGE
-
1490185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1590201-10035-00 WASHER, PLATEWASHER, PLATE
-
165KM-22149-10-00 WASHERWASHER
-
1790171-12001-00 NUT, CASTLENUT, CASTLE
-
1891402-25020-00 PIN, COTTERPIN, COTTER
-
19B35-F3390-00-00 SHOCK ABSORBER ASSY 2SHOCK ABSORBER ASSY 2
-
201HP-F2259-01-00 ...LABEL, WARNING...LABEL, WARNING
-
2190185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2290105-10283-00 BOLT, FLANGEBOLT, FLANGE
