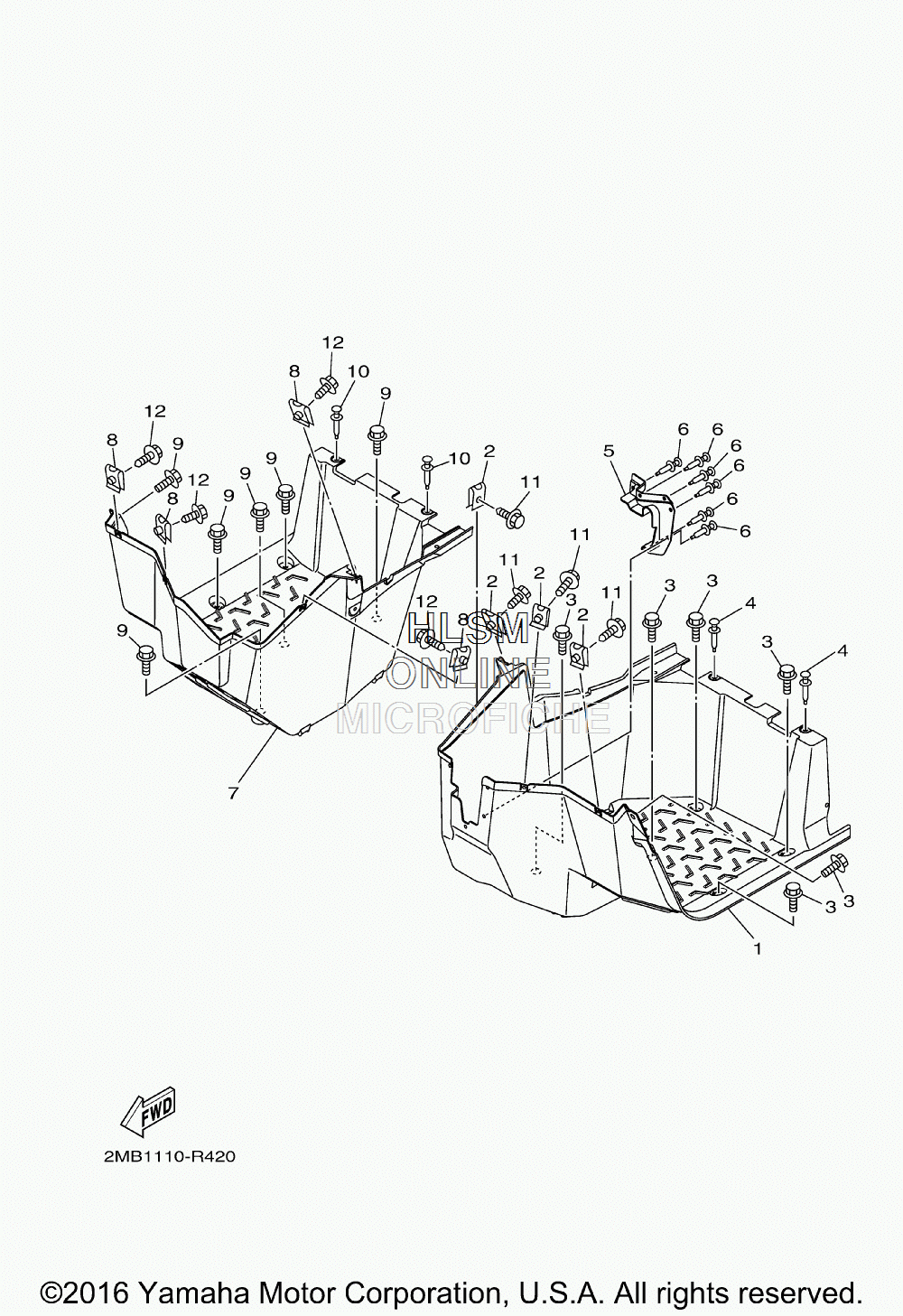

FOOTREST W/ BRAKE PEDAL для Yamaha WOLVERINE EPS HUNTER - 2017 года выпуска`
-
№АртикулНазвание
-
12MB-F7411-00-00 FOOTREST 1FOOTREST 1
-
290183-060A6-00 NUT, SPRINGNUT, SPRING
-
3JW1-K6179-01-00 BOLT, SPECIAL 1BOLT, SPECIAL 1
-
490269-07803-00 RIVETRIVET
-
51XD-F7286-00-00 COVER, DUSTCOVER, DUST
-
690269-07803-00 RIVETRIVET
-
72MB-F7421-00-00 FOOTREST 2FOOTREST 2
-
890183-060A6-00 NUT, SPRINGNUT, SPRING
-
9JW1-K6179-01-00 BOLT, SPECIAL 1BOLT, SPECIAL 1
-
1090269-07803-00 RIVETRIVET
-
1190119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1290119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
