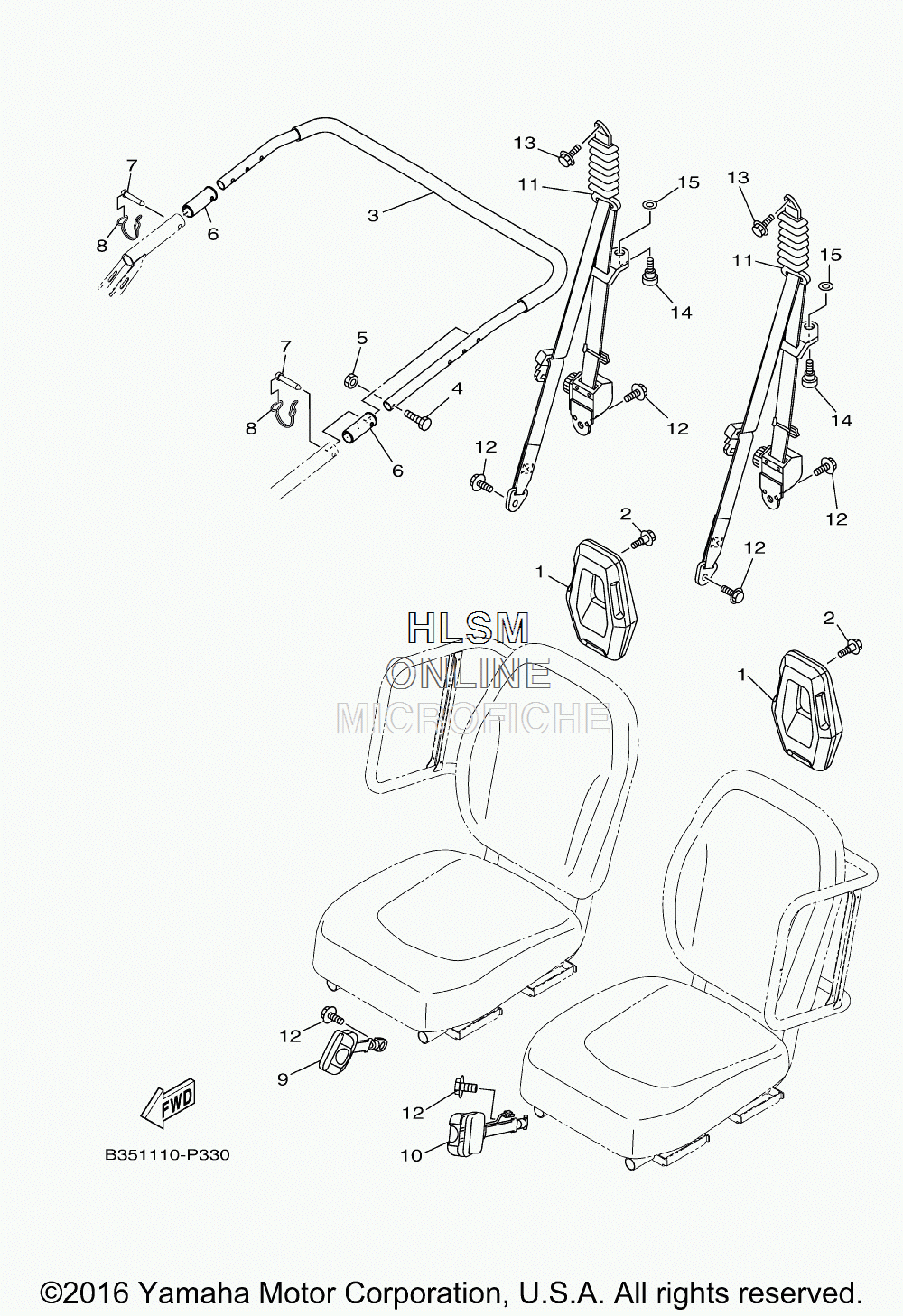

SEAT 2 для Yamaha WOLVERINE EPS (DEEP GREEN) - 2017 года выпуска`
-
№АртикулНазвание
-
12PG-F472L-00-00 HEAD RESTHEAD REST
-
290109-06079-00 BOLTBOLT
-
32MB-F470J-00-00 ASSIST GRIP ASSY., 1ASSIST GRIP ASSY., 1
-
490101-06824-00 BOLTBOLT
-
595612-06100-00 NUT, UNUT, U
-
61XD-F467K-00-00 BUSH, CAPBUSH, CAP
-
71XD-F5926-00-00 BOLTBOLT
-
81XD-F311F-00-00 SNAP, PINSNAP, PIN
-
92PG-F470R-00-00 FR. BELT RECEIVER ASSYFR. BELT RECEIVER ASSY
-
102PG-F470R-10-00 FR. BELT RECEIVER ASSYFR. BELT RECEIVER ASSY
-
111XD-F470L-00-00 FR. SEAT BELT ASSY 1FR. SEAT BELT ASSY 1
-
1295812-12020-00 BOLT, FLANGEBOLT, FLANGE
-
1390111-12002-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
1416B-F3394-01-00 BOLT, SPECIALBOLT, SPECIAL
-
1590201-11801-00 WASHER, PLATEWASHER, PLATE
